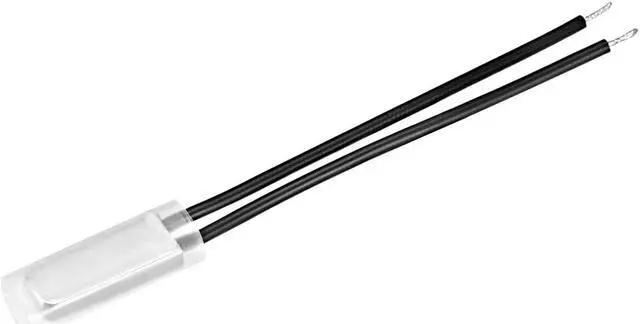

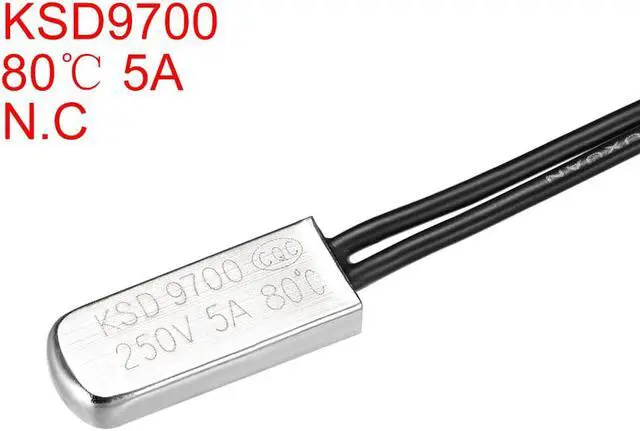

KSD9700 Thermostat, 80 Normally Close Temperature Switch Thermal Switch, N.C 5A Metal Bimetal Temperature Controller 2pcs

Specification :

Product Name : KSD9700 Thermostat

Model: KSD9700

Action Temperature : 80

Action Type: N.C (Normal Close)

Power : 250V 5A

Pin Type : 2 Wires

Wire Length : 70mm/2.76inch

Main Body Material : Metal

Life : 100,000 times

KEY_TAB

Package Content :

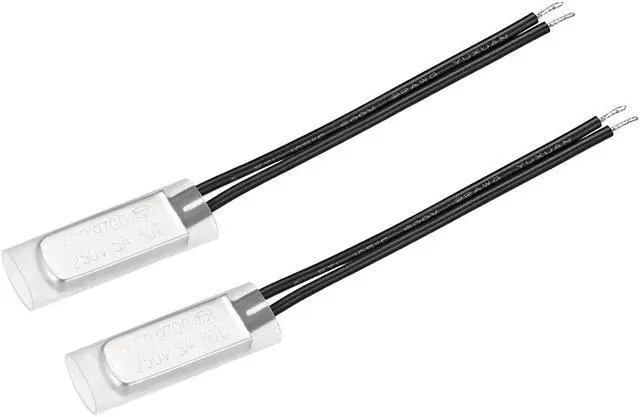

2 x KSD9700 Thermostat

KEY_TAB

Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Features : KSD9700 temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.

3.Working Principle : KSD9700 uses square bimetal sheet as temperature sensor. When the temperature rises to the action temperature, the square sheet jumps suddenly, the transmission contacts act quickly, and the circuit is disconnected. When the temperature drops to the action temperature, the bimetal sheet is reset and the contacts are to their original state, so as to achieve the purpose of on-off circuit.

4.Application : Be applicable to all kinds of home appliances and electronics products. Such as Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines
