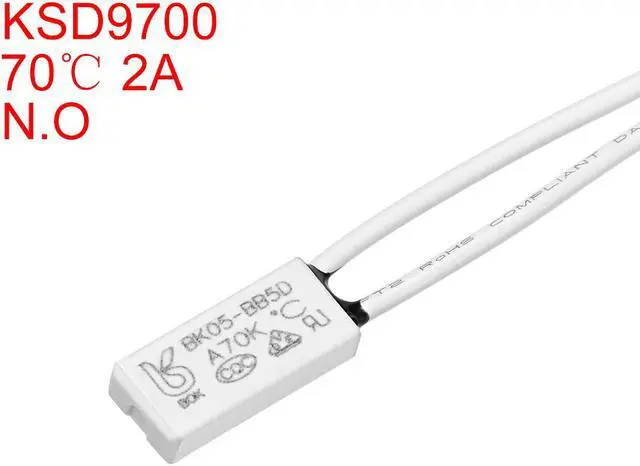

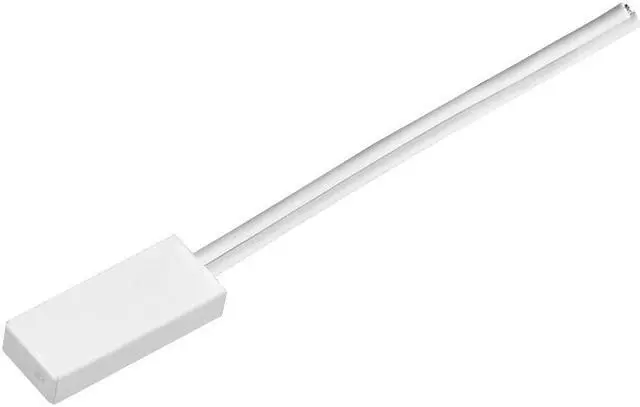

Normally Open Temperature Switch, 70 N.O 2A Thermal Switch Thermostat Bimetal Temperature Control Switch 2pcs

Specification :

Product Name : Thermostat

Action Temperature : 70

Action Type: N.O (Normal Open)

Power : 250V 2A

Pin Type : 2 Wires

Wire Length : 70mm/2.76inch

Main Body Material : Plastic

Life : 100,000 times

KEY_TAB

Package Content :

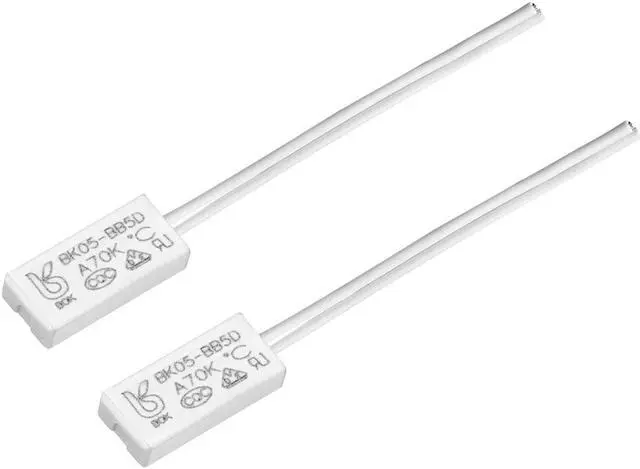

2 x Thermostat

KEY_TAB

Description :

1.Normally Open: The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.

2.Features : temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.

3.Working Principle : uses square bimetal sheet as temperature sensor. When the temperature rises to the action temperature, the square sheet jumps suddenly, the transmission contacts act quickly, and the circuit is disconnected. When the temperature drops to the action temperature, the bimetal sheet is reset and the contacts are to their original state, so as to achieve the purpose of on-off circuit.

4.Application : Be applicable to all kinds of home appliances and electronics products. Such as Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines
