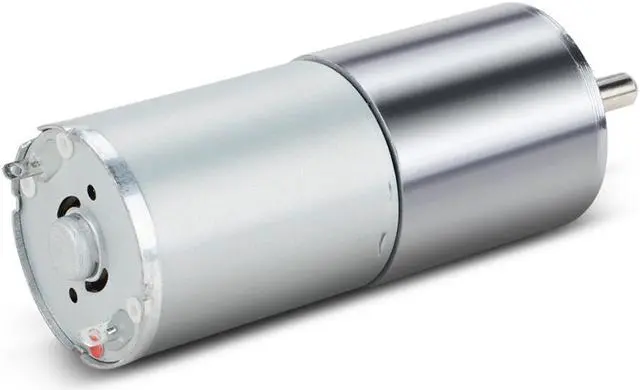

ZGA25RP DC 12V 10RPM Micro Gear Box Motor Speed Reduction Centric Output Shaft
- MADE OF HIGH QUALITY AND DURABLE MATERIAL: Compact design and easy to install, you will get a strong motor
- DC MOTOR APPLICATION: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine etc
- NOTICE BELOW DATA BEFORE BUY: Rated voltage: 12V DC; Speed: 10RPM; Shaft with 4mm diameter, 12mm Long, Reduction Ratio: 1:474; Terminal Quantity:2
- WHAT YOU WILL GET: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store
- Package Content: 1 x Gear Box Motor
+
+
Overview
Specs
Reviews
Description:

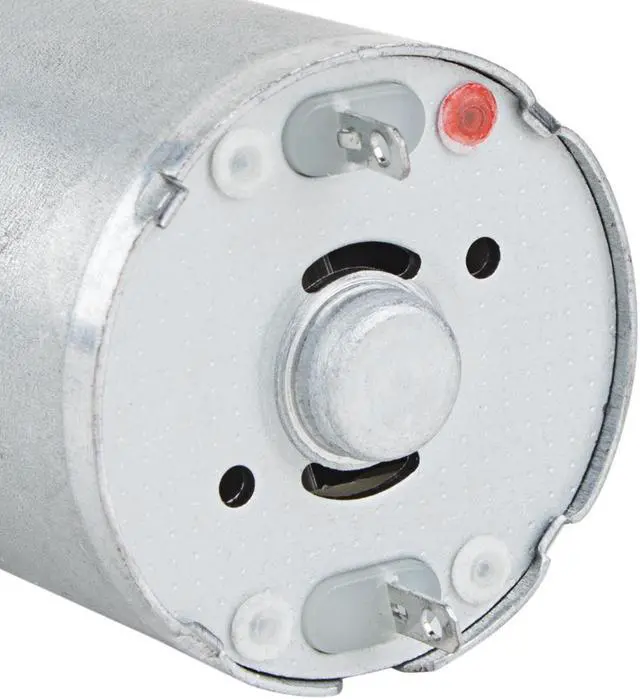

1. Compact DC Gear Box Motor Combination with 25mm diameter gearbox and has 2 terminal connectors.

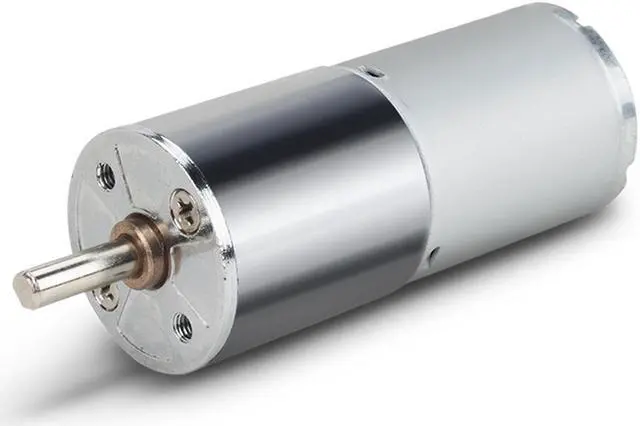

2. Shaft with 4mm diameter, 10mm Long.
3. Small size DC Gear Motor with low speed, low noise and high torque.
4. This motor is solidly constructed.
5. Great replacement for the rusty or damaged DC motor on the machine.
Specification:
Product Name:Geared Motor
Model:ZGA25RP
Rated Voltage:12VDC
Speed:10RPM
Reduction Ratio: 1:474
Terminal Quantity:2

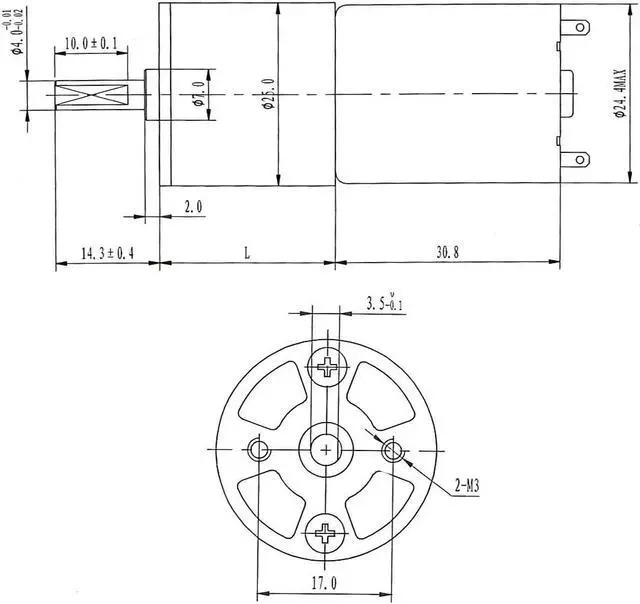

Shaft Size:4 x 10mm (D*L)
Gearbox Size:25mm x 27mm(D*L)
Body Length:58mm
Mounting Hole Size: M3
Feature:
100% brand new and high quality.
All-metal gears,centric Output Shaft
It is great for speed control .
Replacement your electrical and testing equipment a new lease of life .
Benefiting from high torque and low noise .
This motor is solidly constructed .
This motor suitable for most of high torque applications .
<
1. Compact DC Gear Box Motor Combination with 25mm diameter gearbox and has 2 terminal connectors.
2. Shaft with 4mm diameter, 10mm Long.
3. Small size DC Gear Motor with low speed, low noise and high torque.
4. This motor is solidly constructed.
5. Great replacement for the rusty or damaged DC motor on the machine.
Specification:
Product Name:Geared Motor
Model:ZGA25RP
Rated Voltage:12VDC
Speed:10RPM
Reduction Ratio: 1:474
Terminal Quantity:2
Shaft Size:4 x 10mm (D*L)
Gearbox Size:25mm x 27mm(D*L)
Body Length:58mm
Mounting Hole Size: M3
Feature:
100% brand new and high quality.
All-metal gears,centric Output Shaft
It is great for speed control .
Replacement your electrical and testing equipment a new lease of life .
Benefiting from high torque and low noise .
This motor is solidly constructed .
This motor suitable for most of high torque applications .
<
