Synchronous Motor AC 100-127V 5-6RMP 50-60Hz 4W Double Flat Shaft CW/CCW
- [Specification] - Voltage: AC 100-127V; Speed: 5-6RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 4kgf.cm; Wire Length: 40cm/ 15.7 inch.
+
+
Overview
Specs
Reviews
Description
It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, toys and science and education instruments.
Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive toy.
KEY_TAB
KEY_TAB
Specification
Rated Voltage: AC 100-127V
Power: 4W
Manner of Working: CW/CCW
Rated Frequency: 50-60Hz
Rated Speed:KEY_TAB 5-6RPM
Torque: 4kgf.cm

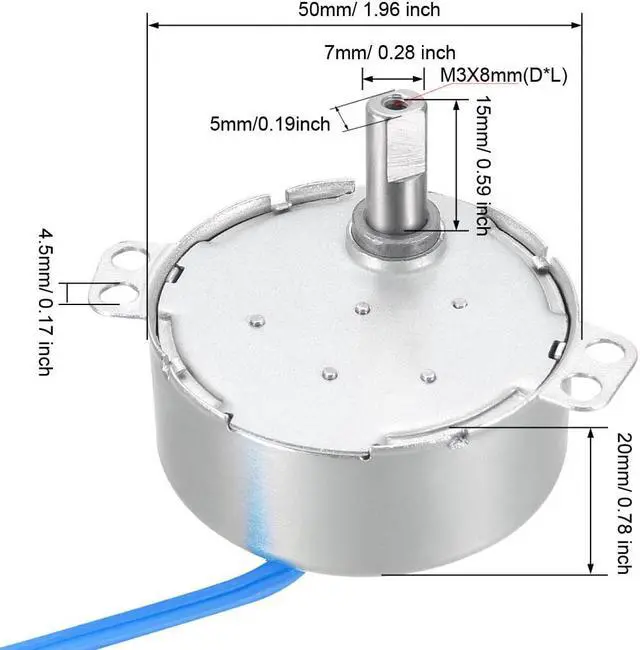

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15mm/ 0.59 inch
Shaft Hole Thread: M3
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor
