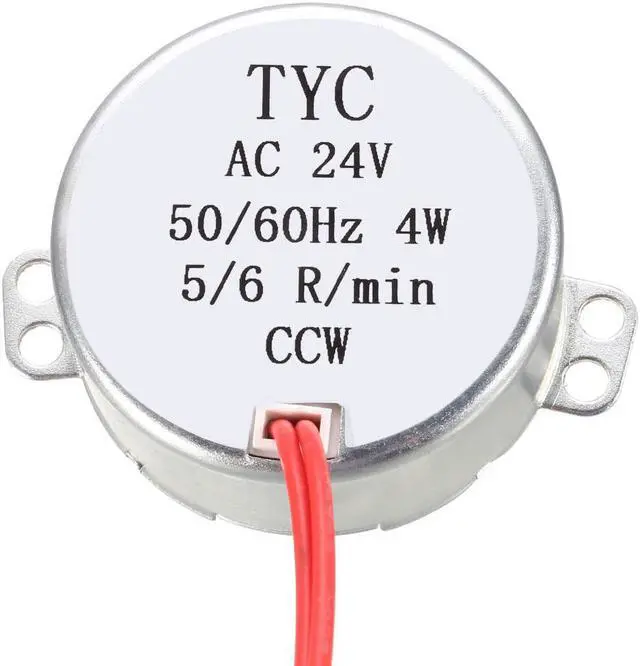

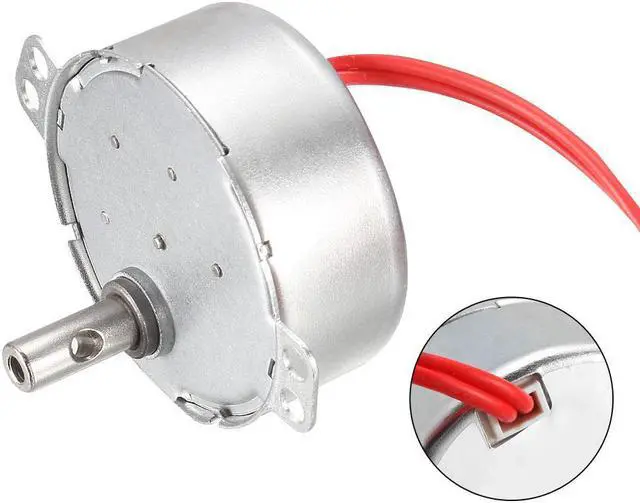

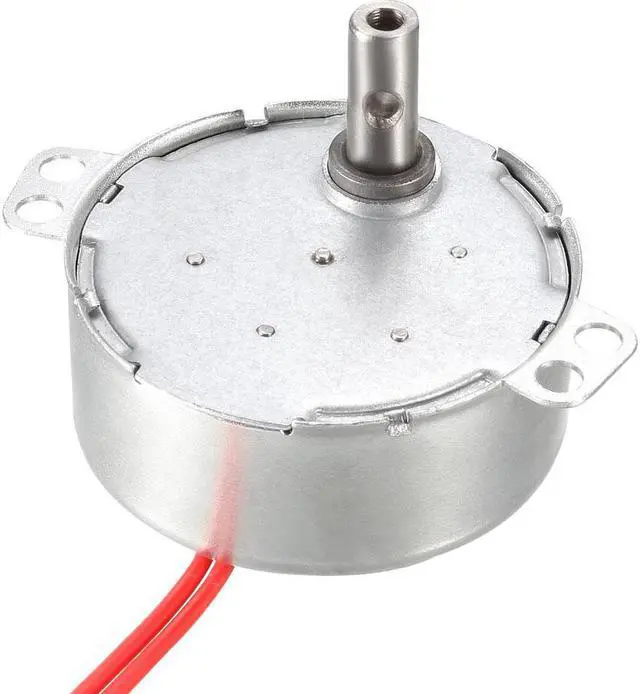

Electric Synchron Motor Turntable Synchronous Motor 24 VAC 5-6RPM 50-60 Hz 4W CCW Direction for Hand-Made, Model or Guide Motor
- Package includes: 1pcs silver tone turntable synchron motor.Practical to use: the synchron motor has small power consumption and large torque which is convenient to use; Low noise and easy to install.
+
+
Overview
Specs
Reviews
Description:
1. Synchronous motor is a kind of common AC motor.
2. Exciting winding use the DC excitation current, the establishment of magnetic field.
3. The armature winding of three-phase symmetrical action use as the power winding.
4. The armature winding and the main magnetic field is doing the cutting movement.
Widely Use
It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.
Specification:
Voltage: AC 24V
Frequency: 50-60Hz
Speed: 5-6RPM/Min
Color: Silver Tone
Rated Power: 4W
Manner of Working: CCW
Gear Material: plastic

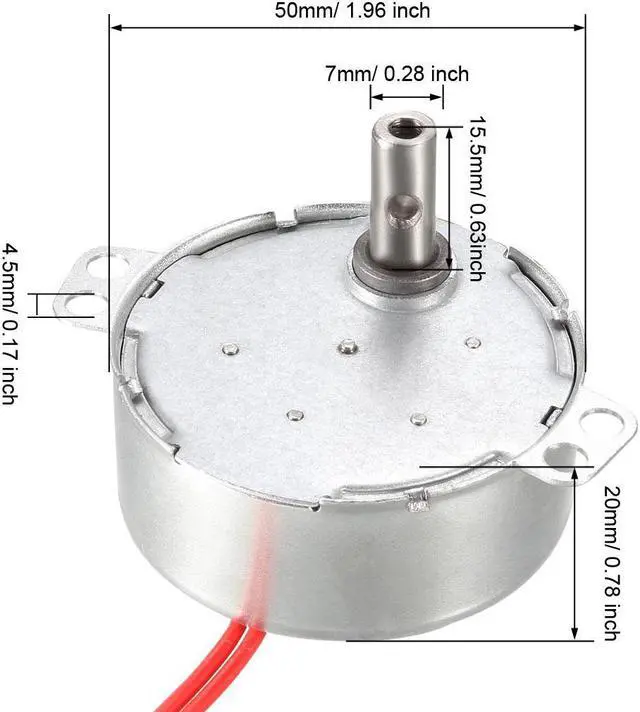

Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15.5mm/ 0.63inch
Shaft Hole diameter: 3mm/0.11 inch
Internal Thread Size: M4
Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Wire Length: 410mm/ 16.14 inch
Package: 1 x Synchronous Motor
1. Synchronous motor is a kind of common AC motor.
2. Exciting winding use the DC excitation current, the establishment of magnetic field.
3. The armature winding of three-phase symmetrical action use as the power winding.
4. The armature winding and the main magnetic field is doing the cutting movement.
Widely Use
It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.
Specification:
Voltage: AC 24V
Frequency: 50-60Hz
Speed: 5-6RPM/Min
Color: Silver Tone
Rated Power: 4W
Manner of Working: CCW
Gear Material: plastic
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15.5mm/ 0.63inch
Shaft Hole diameter: 3mm/0.11 inch
Internal Thread Size: M4
Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Wire Length: 410mm/ 16.14 inch
Package: 1 x Synchronous Motor
