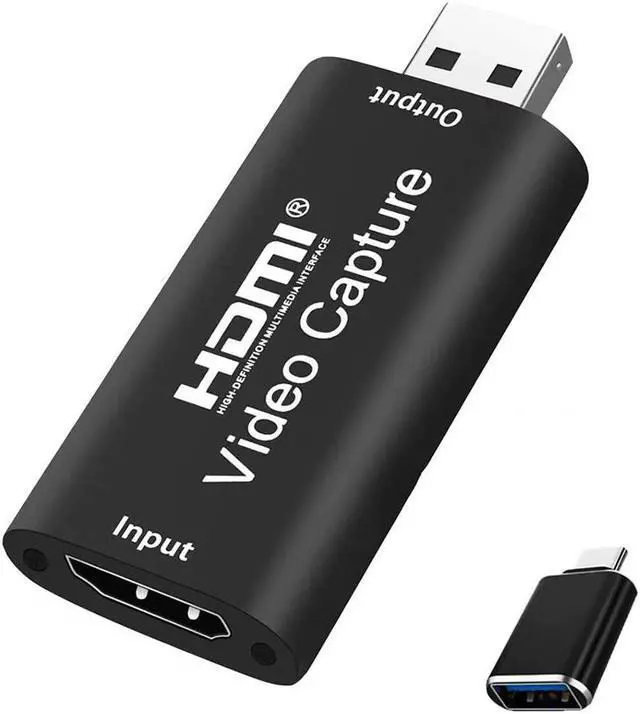

Tuner Box Grabber Compatible Portable USB 2.0 HDMI Capture Card Mini Recording Box USB 3.1 OTG Adapter

Portable USB 2.0 HDMI Capture Card Mini Recording Box with USB 3.1 OTG Adapter for Game DVD Live Streaming Broadcast

Introduction:

This USB 2.0 capture card can capture HDMI audio and . Audio and signals can be transmitted to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Feature:

1. Support the highest input resolution up 3840 x 2160 at 30Hz.

2. Support the highest output resolution up 1920 x 1080 at 30Hz.

3. Support 8/10/12 bit color depth.

4. When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution).

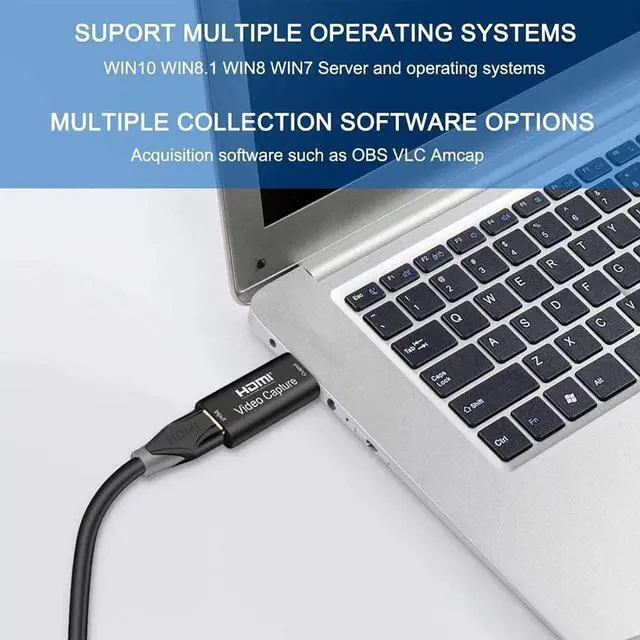

5. Support most acquisition software, such as VLC, OBS, Amcap, etc.

6. Supports for Windows, Android and MacOS.

7. Conforms to the USB UVC specification.

8. Conforms to the USB audio UAC specification.

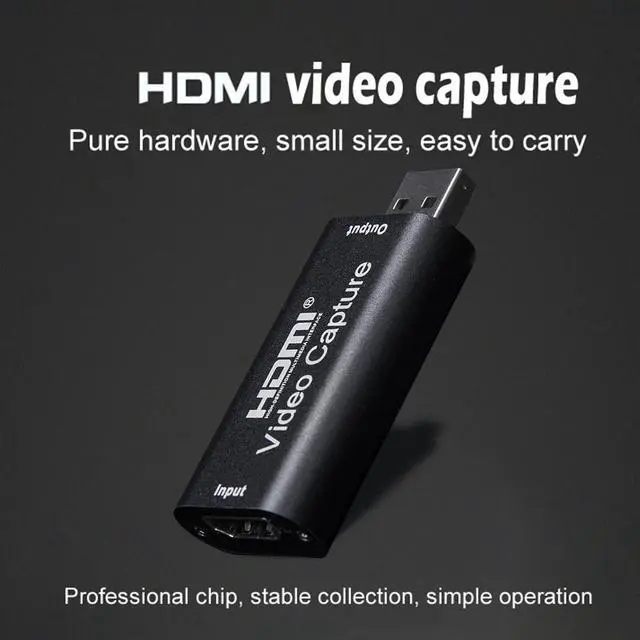

9. No need for external power supply, small size and easy to carry.

Specification:

HDMI Input Resolution: Maximum 3840 x 2160 at 30Hz

Input Format: 8/10/12 Bit Color Depth

Output Mode: YUV, JPEG

Output Resolution: Maximum 1920 x 1080 at 30Hz

Support Audio Format: LPCM

Input Transmission Length: 15m, AWG26 HDMI Standard Cable

Maximum Working Current: DC 0.4A/5V

Operating Temperature Range: -10 - +55

Product Size: 64 X 28 X 13mm/2.52 X 1.1 X 0.51"

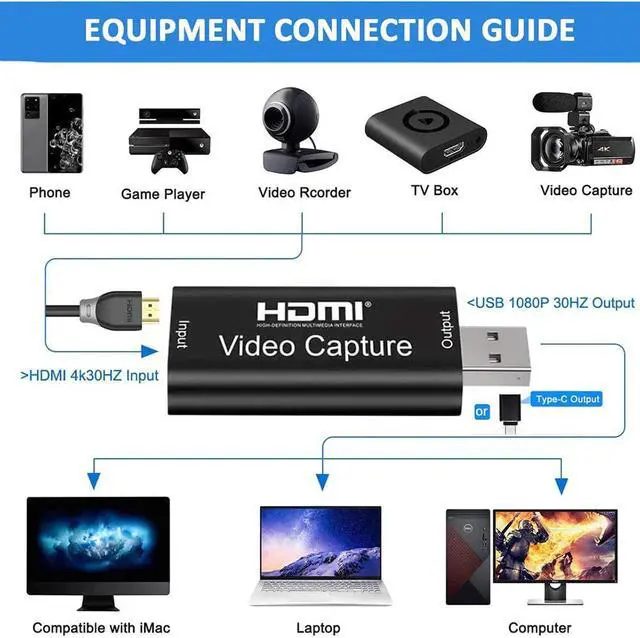

Connection Operation:

1. Connect the HDMI signal source and the HDMI input port of the USB capture card via 1 HDMI cable.

2. Plug the USB male of the USB capture card into the USB port of the computer.

Note:

1 X HDMI Capture Card

1 X Manual
