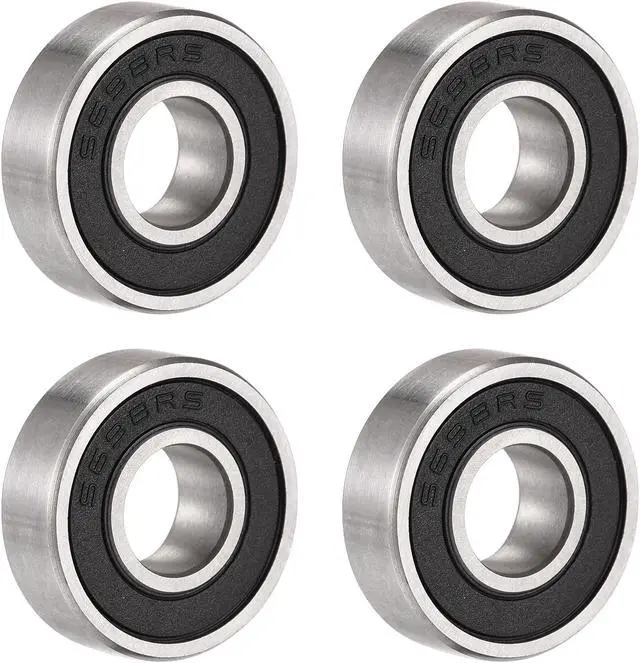

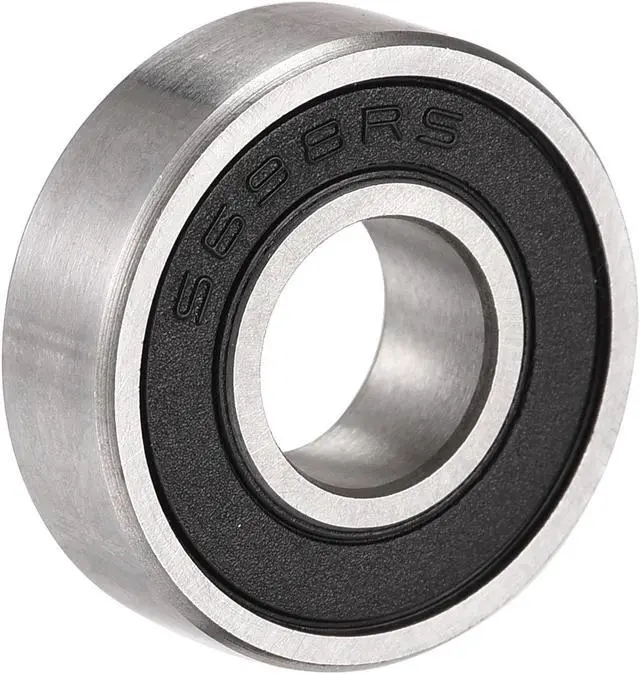

S698-2RS Stainless Steel Ball Bearing 8x19x6mm Double Sealed Bearings 4pcs
- [Size] - S698zz bearing (I.D.=8mm, O.D.=19mm, Thickness=6mm).
- [Durable] - Stainless steel races are durable and corrosion-resistant, thus extend bearings' service life.
- [Easy to Maintain] - Sealed on Both sides to keep lubricant in. Z2 noise level for most general use.
- [Load & Speed] - Dynamic load rating of 1.7KN and static load rating of 0.66KN. The limiting speed is 38700 RPM under grease lubricating.
- [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other projects.
+
+
Overview
Reviews
DescriptionSingle-row, pre-lubricated, normal accuracy. Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial loads. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Stainless steel bearing features stronger rust and corrosion resistance ability. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on NotePlease refer to the picture and select the right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.KEY_TAB Selection GuideShields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification

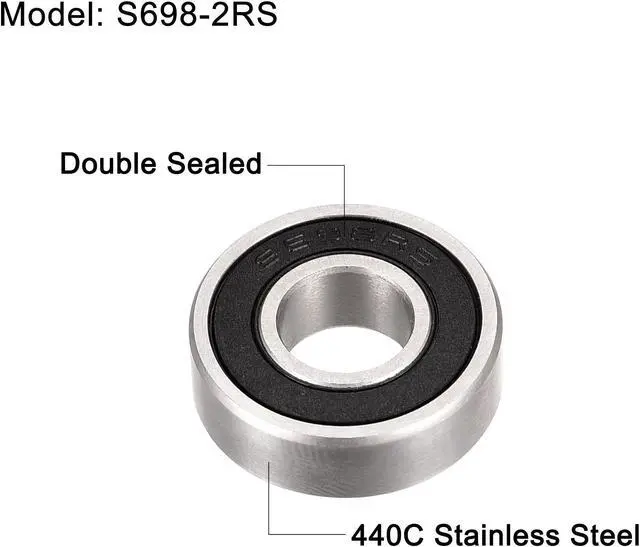

- Model: S698-2RS
- Shield Type: Double Sealed
- Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)
- Cage Material: Stamping Steel

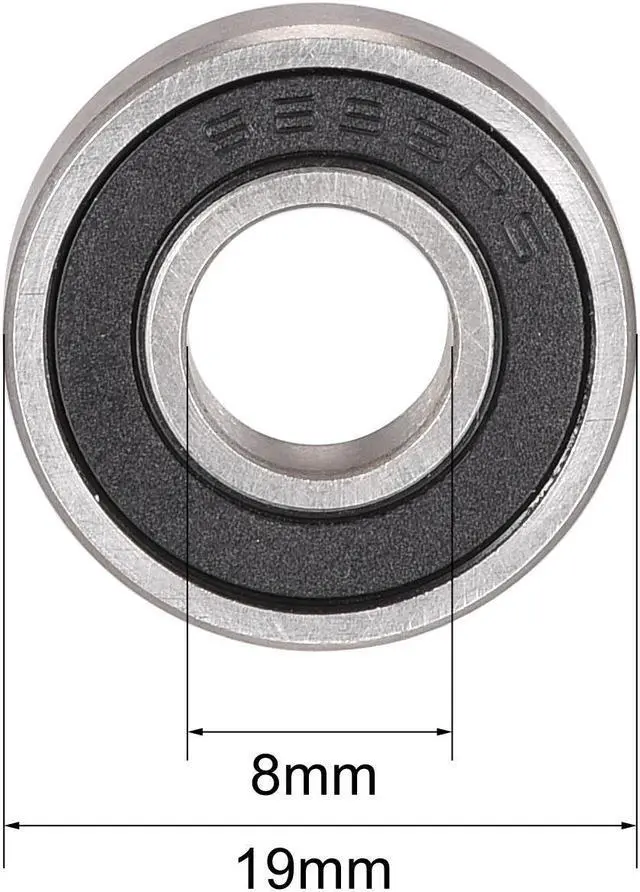

- Inner Diameter (d): 8mm
- Outer Diameter (D): 19mm

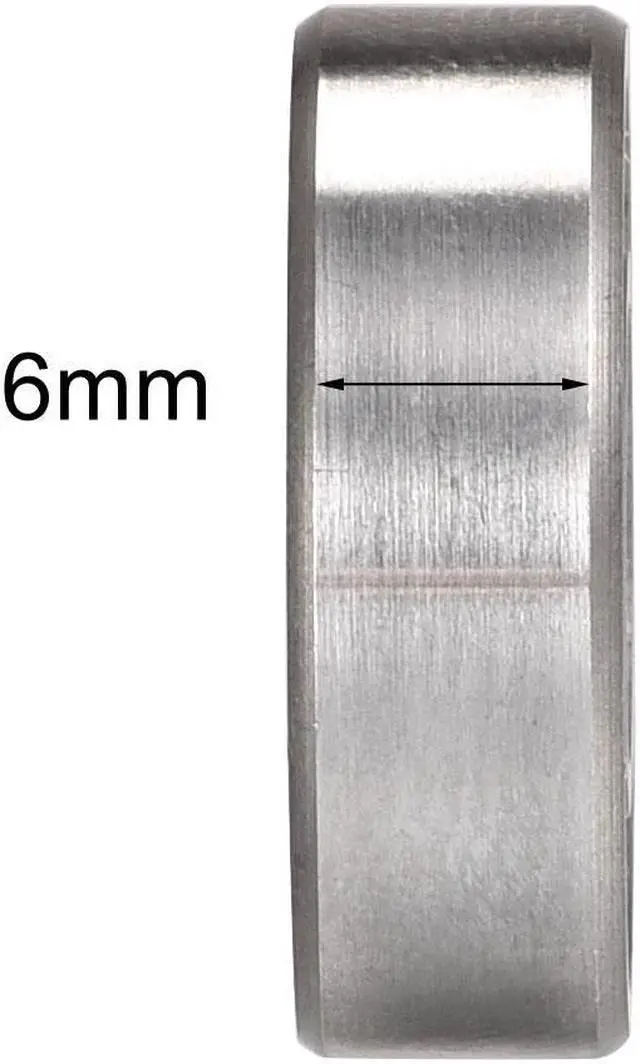

- Thickness (B): 6mm
- Dynamic Load Rating (Cr): 1.7 KN
- Static Load Rating (Cor): 0.66 KN
- Accuracy Class: P0 (ABEC1)
- Noise Level: Z2
- Number of Pack: 4 Pcs
