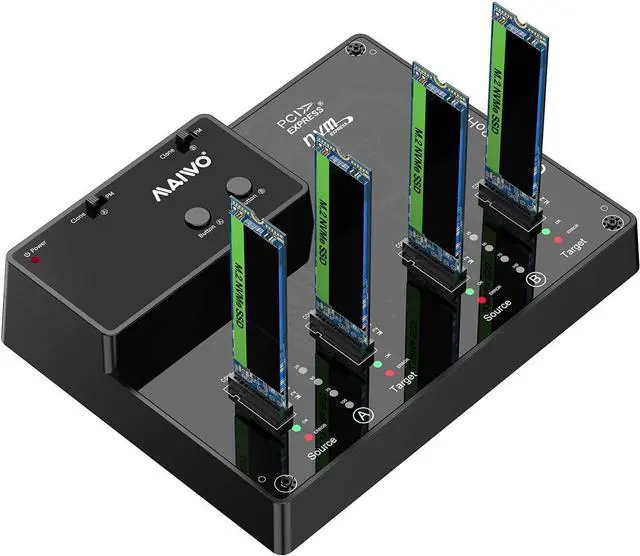

4 Bay M.2 NVMe Solid State Drive to USB3.1 Gen2 (Type-C) Docking Station with Offline Clone Function
8TB Capacity
- Each disk up to 2TB capacity expansion, 8TB in total.

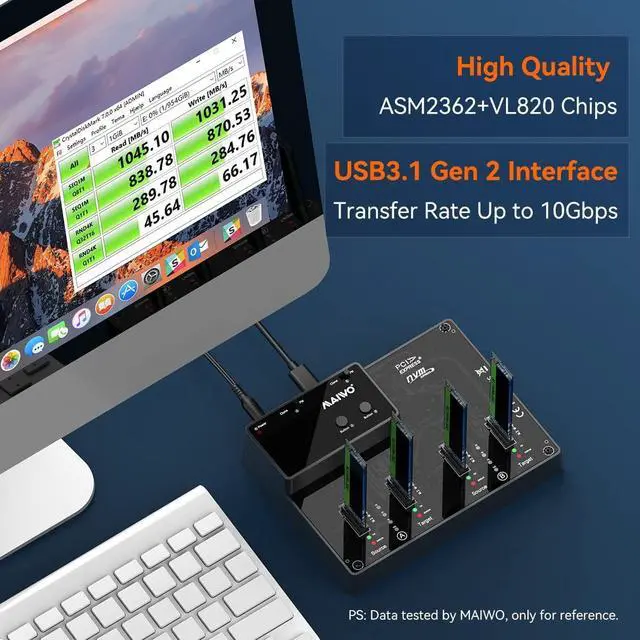

10Gbps Transmission Speed
- With USB3.1 GEN2 Type-C interface, which is compatible with thunderbolt3, high transfer rate up to 10Gbps, transfer 1G data in one second.
Tool-Free
- Tool-free installation, plug and play, no tools or drivers needed, with working indicators, very easy to use.
Package Content
- 1x 4-Bay Docking Station
- 1x Type-C to USB-A Cable
- 1x 12V 3A Power Adapter
- 1x User Manual
If your drive is new, please follow below steps to make the enclosure work:
- Insert drive and connect the enclosure to PC.
- Hard Disk Initialization: Computer----Manage---Disk Management---find new disk and initialize (NOTE: Please choose MBR if the capacity of your disk is less than 2TB, choose GPT if larger than 2TB.)
- Disk Partition and Format: New disk will become [Disk 1] after initialization, right click [Disk 1] and choose "New Simple Volume" to do partition, choose the capacity you need and choose "Formatting".

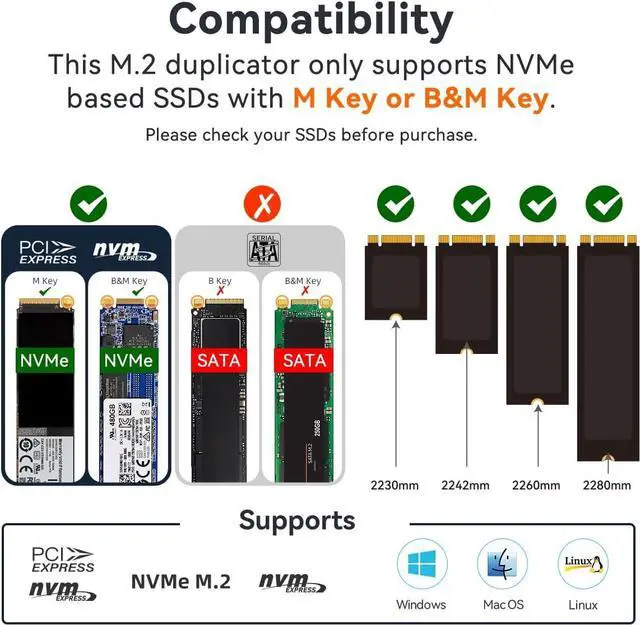

Compatibility
This M.2 Cloner only supports M.2 NVMe PCIe SSD with M Key or B+M Key in size 2230/2242/2260/2280/22110mm
- DO NOT SUPPORT M.2 SATA SSD

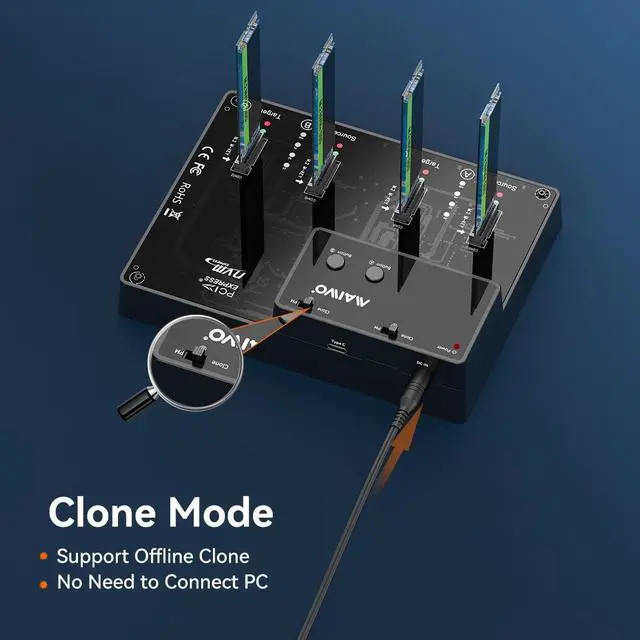

Offline Clone
Support offline clone for 2 groups SSDs at the same time.
- DO NOT SUPPORT 1-to-3 CLONE

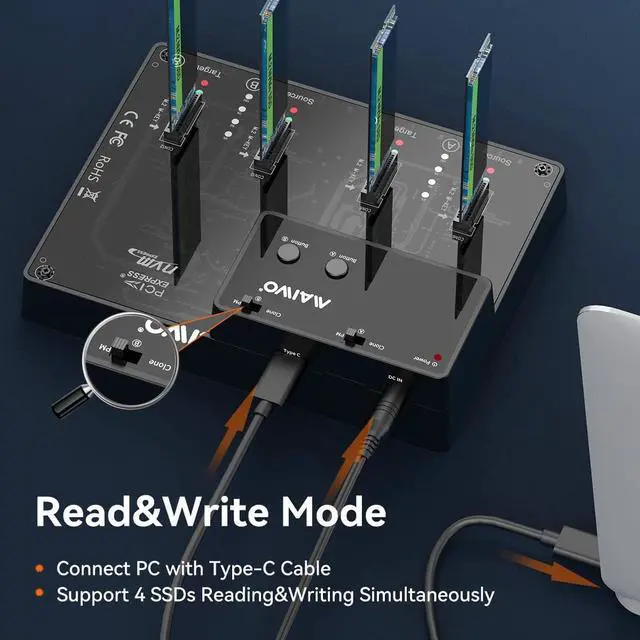

Read & Write
Support 4 pieecs of SSDs read and write at the same time.

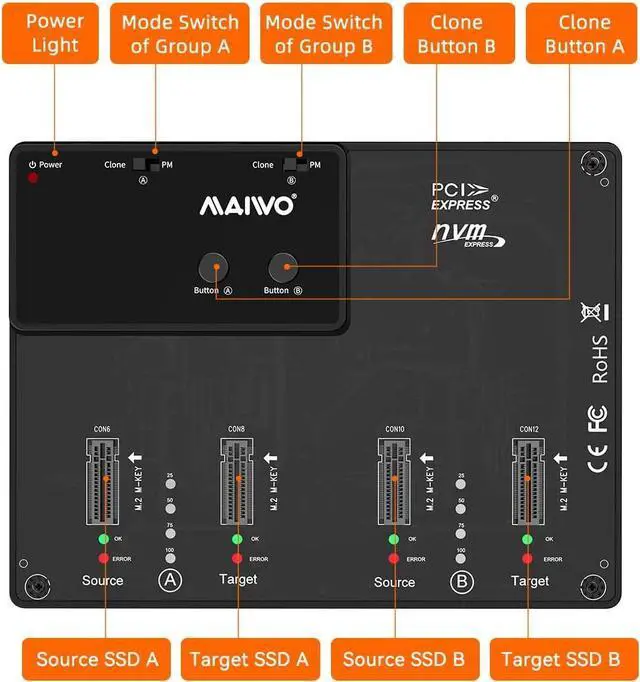

Very Clear Indicators for Different Working Status
Different Led lights to show different working status, you can know the working status of this SSD docking station at any time.
- Connect this m.2 dock with power adapter, the power light turns red.
- Iinsert a SSD, the SSD LED indicator light turns green.
- When cloning, the progress light is white and flashing.
- When there is an error, its light will become red.
