Weastlinks PCIe X4 To X1 Riser for Sound Card Network Card Capture Card Gigabit Wireless LAN, USB Audio Card 1x 4x Adaptor extension cables

Feature:

Product name:PCIe x4 to x1 extension cable

Product model:
R21SF, R21SL, R21SR (PCIe3.0 x1 , 8G/bps (Max.))
R21SF 4.0 , R21SL 4.0 (PCIe4.0 x1 , 16G/bps (Max.))

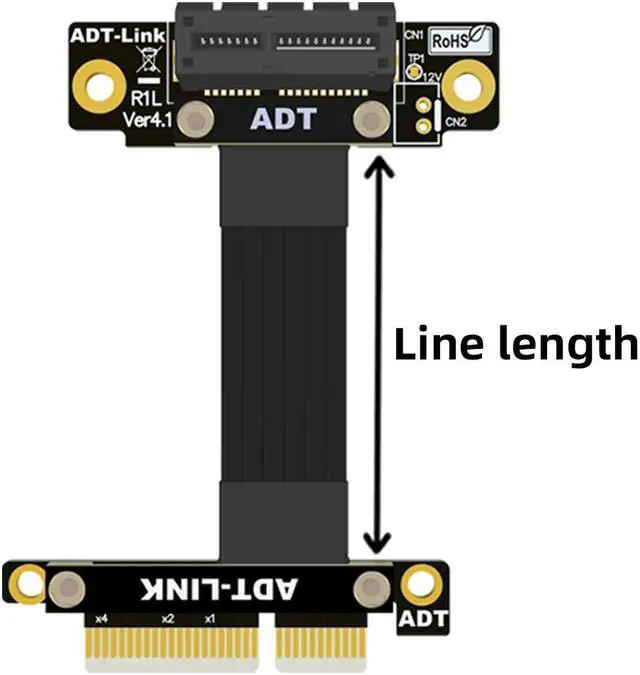

Wire length:15cm, the length can be customized,

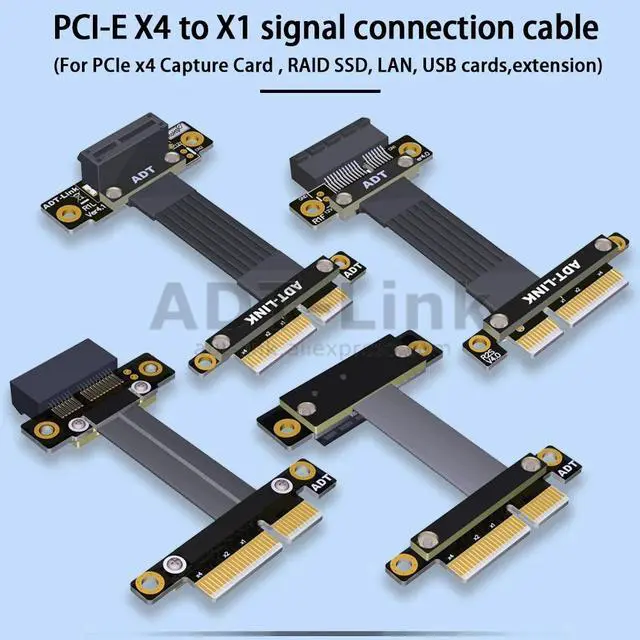

Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards,extension

Usage restrictions: PCIe 4.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 4.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 3.0 or lower.

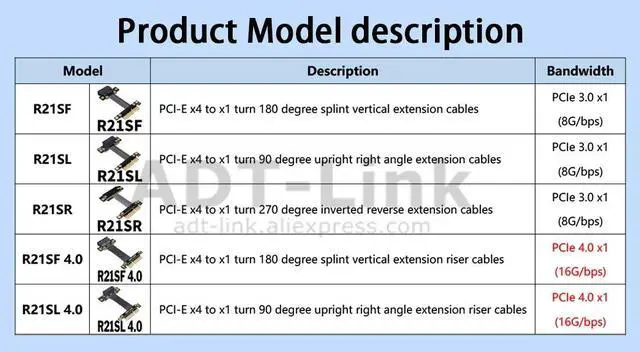

R21SF:PCI-E x4 to x1 turn 180 degree splint certical extension cables,PCIe 3.0 x 1(8G/bps).

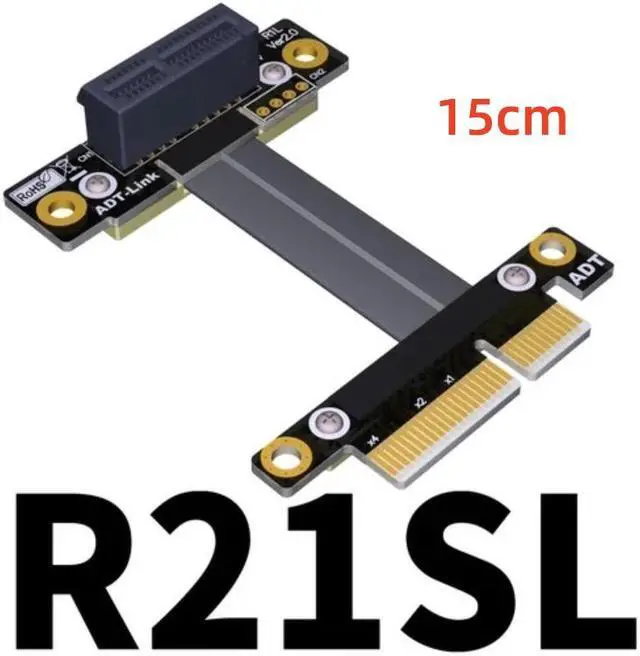

R21SL:PCI-E x4 to x1 turn 90 degree upright rightangle extension cables,PCIe 3.0 x 1(8G/bps).
R21SR:PCI-E x4 to x1 turn 270 degree inverted reverse extension cables,PCIe 3.0 x 1(8G/bps).
R21SF4.0:PCI-E x4 to x1 turn 180 degree splint vertical extension riser cables,PCIe 4.0 x1(16G/bps).
R21SL3.0:PCI-E x4 to x1 turn 90 degree upright right angle extension riser cables,PCIe 4.0 x1(16G/bps).

Product advantage:

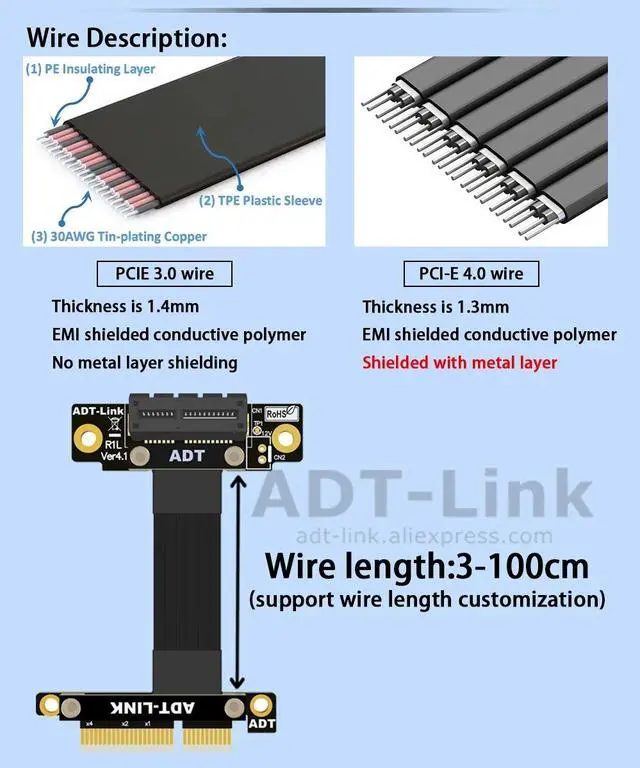

1. Wire advantage, using German patented imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.

Packing list:
1 x PCIe x4 to x1 extension cable
