Weastlinks Mini PCI-e mPCIe WAN WiFi To PCIe x4 PCI-E 4x Riser adapter cards Gen3.0 Mini-PCIe Ribbon cable Mini pci e for WIFI card

Feature:

Product name: PCIe x1 to mPCIe extension cable.

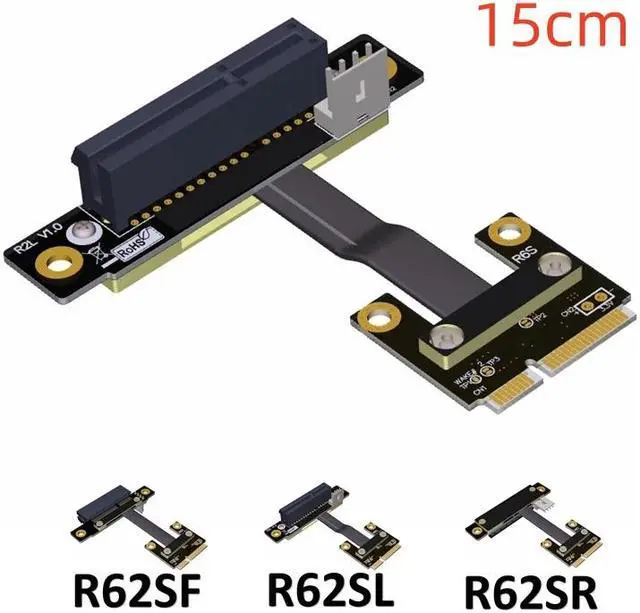

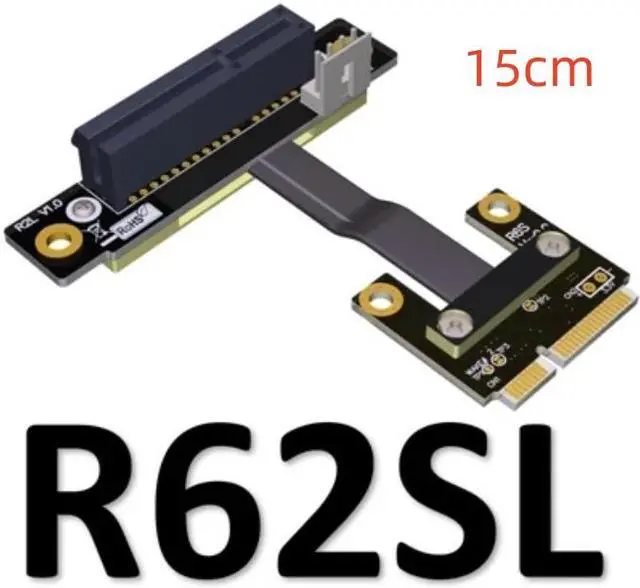

Product model: R62SF , R62SL , R62SR.

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.).

Wire length: 15 cm, the length can be customized.

Application: PCIe x4 RAID NVMe SSD card / LAN card / capture card to mPCIe extender.

Cable length Description:The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector.

Note: This product does not support notebook external!!!

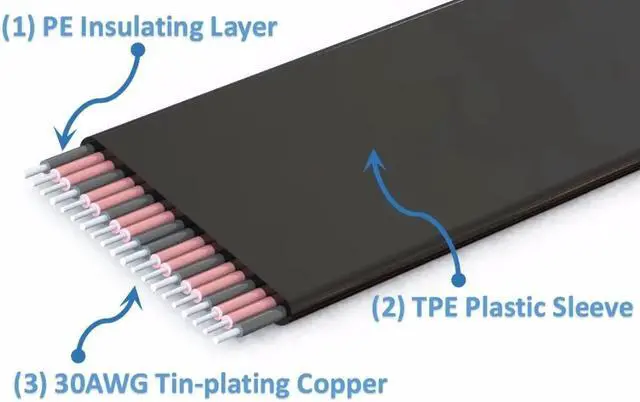

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Product advantage:

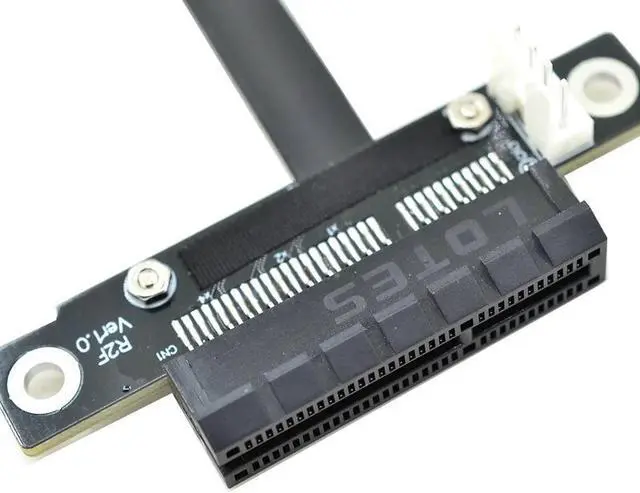

1. Wire advantage, using German patented imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.

Purchase Notice:

1. All kinds of Motherboard and equipment condition such as signal driving ability is different, the results of our test does not guarantee that it is the same as your test results. You need to know, as long as using a extension cable, the signal will have a loss. The buyer who requires perfectly, please don't buy.

2. The PCI-E card or motherboard is an electronic equipment which will increase over time and oxidant aging. It will become more unstable if plug in an extension cable. Does not support the old equipment. The device which is more than four years, please don't buy.

Packing list:
1 x PCIe x1 to mPCIe extension cable
