SIIG - JU-DK0811-S1

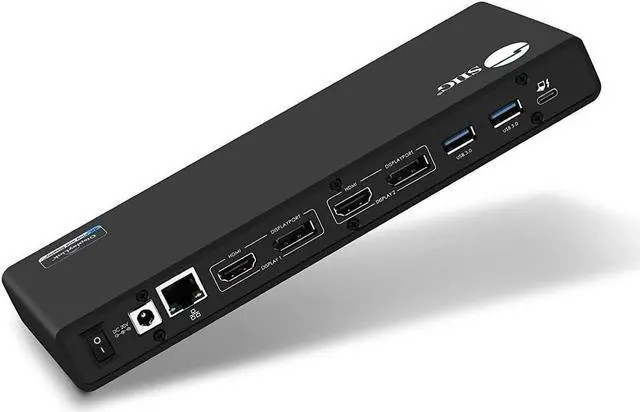

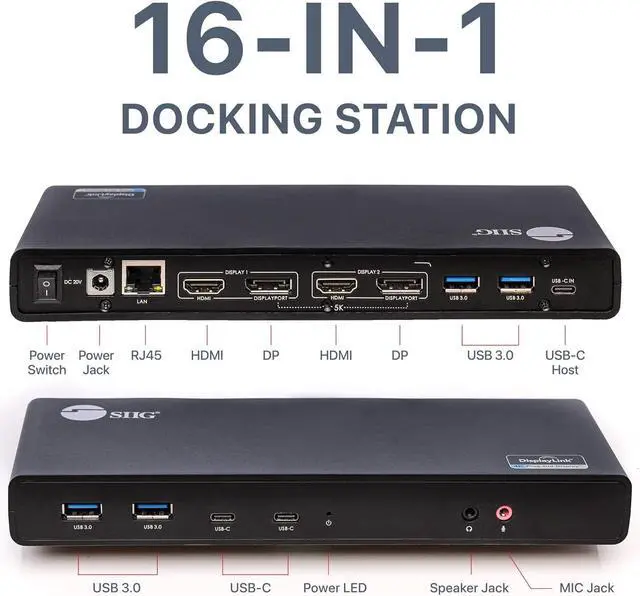

- MULTI-FUNCTION DOCK: Connect a USB-C port (TB3 compatible) into multiple connectivity options such as USB-C Gen 1 port, Type-A USB 3.1 ports, HDMI and DisplayPort ports, Gigabit Ethernet port, headphone jack, and microphone jack. Due to MacOS recent updates, please contact us before purchasing if you are not sure about compatibility.

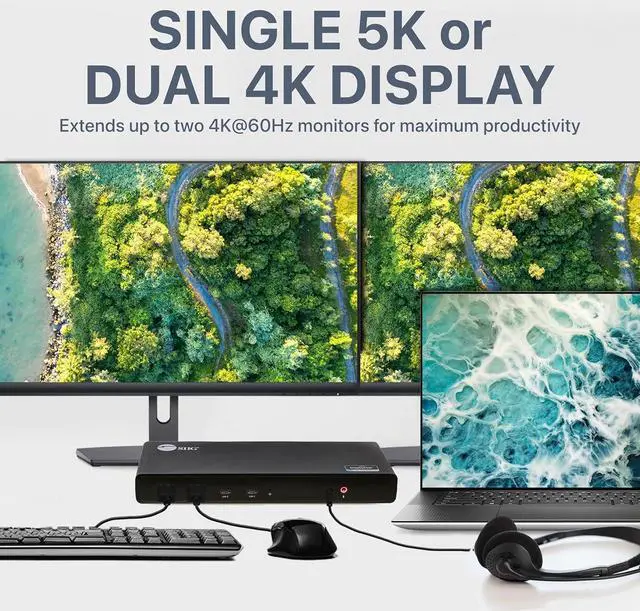

- HIGH RESOLUTION: Supports single 5K @60Hz Ultra HD video output through dual DisplayPort, or dual 4K @60Hz displays through HDMI/HDMI, DP/DP, or HDMI/DP outputs. NOTE: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor.

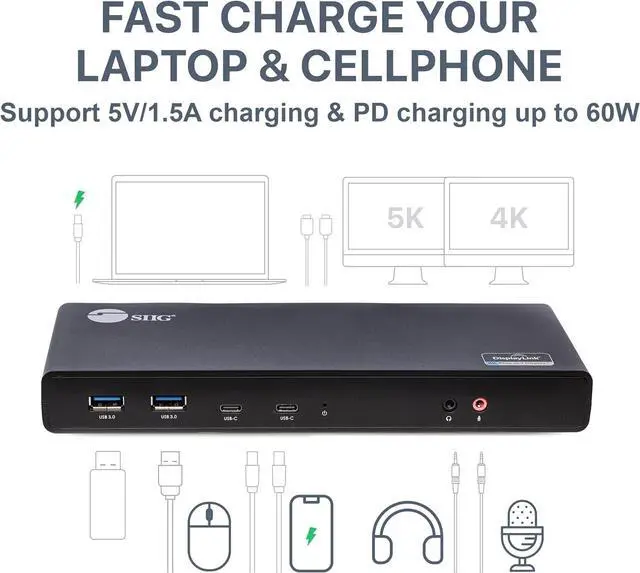

- FLEXIBLE VIDEO INTERFACE: Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound. Includes Fast ChargeUSB-C downstream that is compatible with USB Battery Charge Specification 1.2 (BC 1.2) for fast charging of portable USB devices
- ADVANCED FEATURES: such as Power Delivery (60W) and host-charging USB-C DisplayPlay Alternate mode technology must be
+
+
Overview
Specs
Reviews
Specifications:
Chipset: DisplayLink 6590 + FL5002 + GL3523
-Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
-Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
-Integrated DP 1.2/DP++ interface
-Integrated HDMI 2.0 interface
-Support 5.1 channel surround sound (HDMI/DisplayPort signal)
-USB Power Delivery up to 60W
-Supported video cable length: HDMI - Up to 5M (max) ; DisplayPort - Up to 3M (max)
Gigabit Ethernet:
-Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
-Supports IEEE 802.3x full duplex operation
-Compatible with IEEE 802.3, 802.3u
-Supports crossover detection & auto-correction
Resolution:
-Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
-Dual 3840x2160@60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
-Single 5120x2880@60Hz through dual DisplayPort connection Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
Requirements:
-PC computer or laptop with an available USB PD USB-C Port (Thunderbolt 3 compatible)
-Intel Core i5 3.0GHz CPU or higher and standalone GPU
-Windows 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
-Mac OS X 10.13 to 10.7 (Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update, Apple discontinued support for Video over USB on the update. It's recommended to upgrade to Mojave 10.14 and driver v5.0 or stay with 10.13.3 or earlier.)
-NOTE: Linux not supported

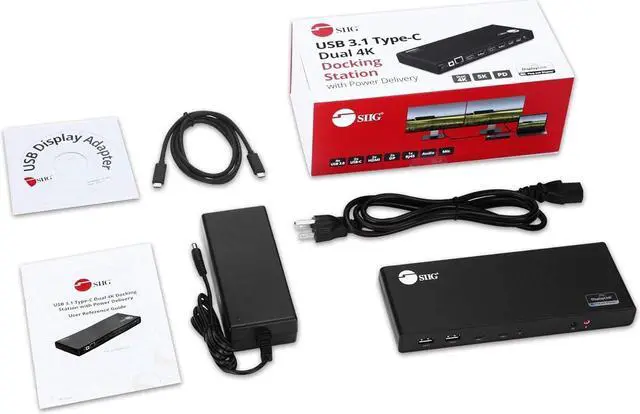

Package Content:
-USB 3.1 Type-C Dual 4K Docking Station with Power Delivery
-Power Adapter (DC 20V/5A)
-USB-C (M) to USB-C (M) cable
-Driver CD
-User Reference Guide
Warranty:This USB 3.1 Type C Dual 4K Docking Station comes with a 2 YEAR warranty.
Chipset: DisplayLink 6590 + FL5002 + GL3523
-Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
-Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
-Integrated DP 1.2/DP++ interface
-Integrated HDMI 2.0 interface
-Support 5.1 channel surround sound (HDMI/DisplayPort signal)
-USB Power Delivery up to 60W
-Supported video cable length: HDMI - Up to 5M (max) ; DisplayPort - Up to 3M (max)
Gigabit Ethernet:
-Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
-Supports IEEE 802.3x full duplex operation
-Compatible with IEEE 802.3, 802.3u
-Supports crossover detection & auto-correction
Resolution:
-Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
-Dual 3840x2160@60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
-Single 5120x2880@60Hz through dual DisplayPort connection Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
Requirements:
-PC computer or laptop with an available USB PD USB-C Port (Thunderbolt 3 compatible)
-Intel Core i5 3.0GHz CPU or higher and standalone GPU
-Windows 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
-Mac OS X 10.13 to 10.7 (Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update, Apple discontinued support for Video over USB on the update. It's recommended to upgrade to Mojave 10.14 and driver v5.0 or stay with 10.13.3 or earlier.)
-NOTE: Linux not supported
Package Content:
-USB 3.1 Type-C Dual 4K Docking Station with Power Delivery
-Power Adapter (DC 20V/5A)
-USB-C (M) to USB-C (M) cable
-Driver CD
-User Reference Guide
Warranty:This USB 3.1 Type C Dual 4K Docking Station comes with a 2 YEAR warranty.
