Dual Channels USB to CAN Converter for Raspberry Pi4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board/Any SBCs/Desktop/Laptop Support Windows Linux Mac OS Android Venus OS
- The Dual Channels Usb to Can Device compatible with all series Raspberry Pi/Jetson Nano/Tinker Board/any single board computer, desktop and laptop.
- Support Windows System, Mac OS, Linux, Android, Venus OS, Raspbian(v5.4 kernel) and Ubuntu.
- Plug and Play USB CAN device. No external power required. CAN baud rate from 20Kbps to 1Mbps can be programmed arbitrarily. Support for CAN bus 2.0A and 2.0B specification.
- Provides 3000VDC voltage isolation and 15kV Bus-Pin ESD protection.
- Provide C/Python with Socket-CAN feature for Raspbian(Linux), C#/C++ demo for Windows, Dynamic library and demo with IOUSBKit for Mac Os(Big Sur).
+
+
Overview
Specs
Reviews

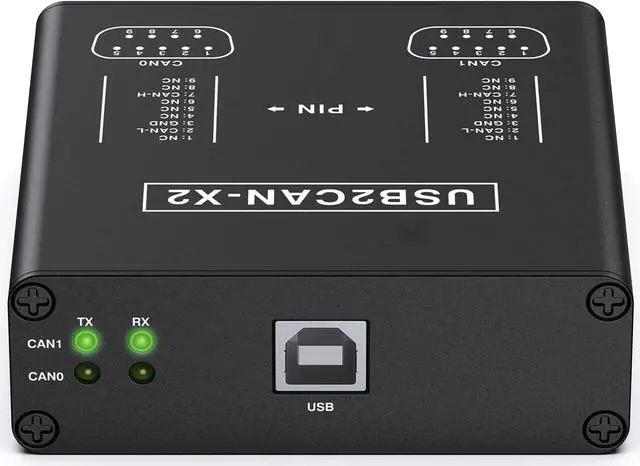

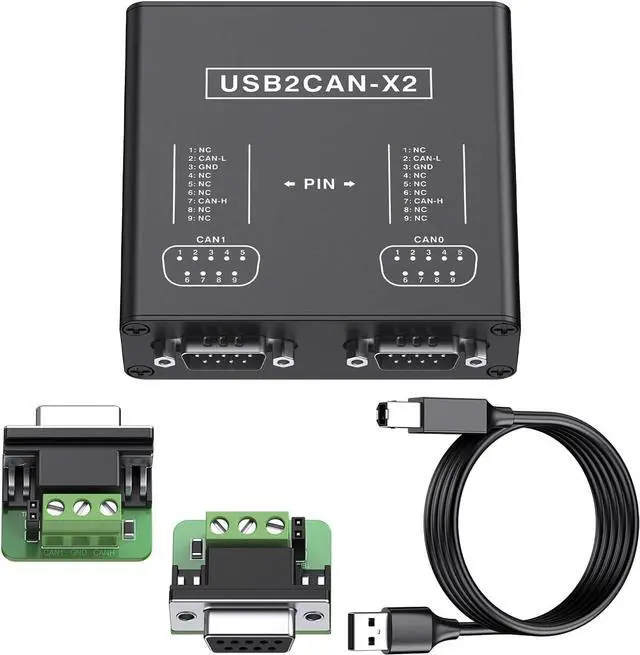

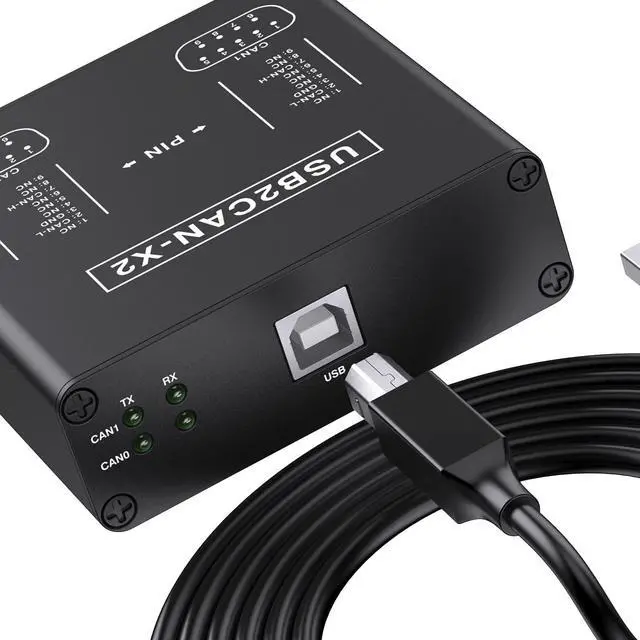

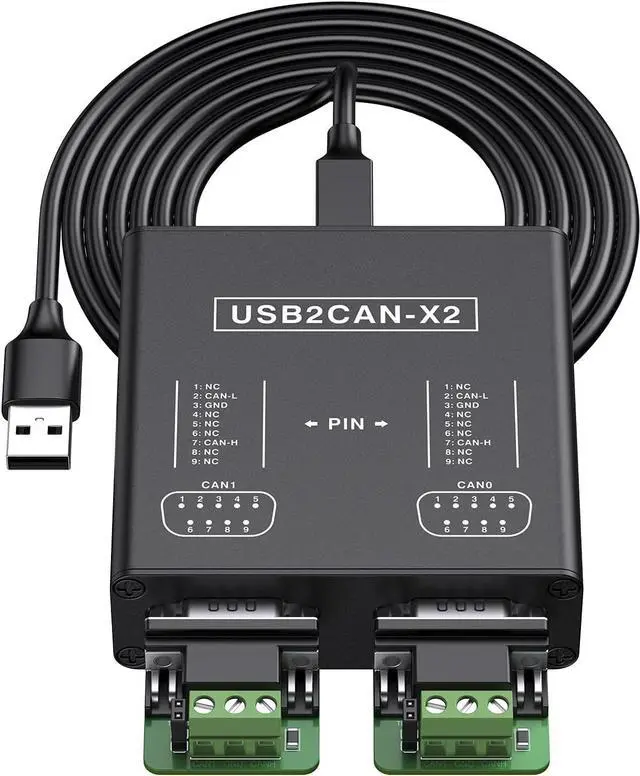

USB2CAN-X2 is a really 'plug and play' and bi-directional port powered USB to CAN converter which realizes long-distance communication between your Raspberry Pi/SBC/PC and other devices stably though CAN- Bus connection.
Dual channels can be set up independently , It's a cost-effective solution that are safe and reliable for all your data-conversion / device-protection applications for any experienced engineer interfacing to expensive industrial equipment yet simple enough for home use by an amateur hobbyist.
USB2CAN can also be applied to obtain the data of car via the OBD connector, but you need to configured and secondary development by yourself.
Support Win7/Win8/Win10
Provide C#/C++ demo and dynamic link libraries for help customer develop own applications.
Support Mac OS version equal or above 10.11
Provide development library for help customer develop own applications.
Support Linux system
It's a socket-can device in Linux, not need to install any driver and fully compatible with other socket-can software in Linux such as can-utils.
Industrial Automation
Medical Instrument
Car OBD System
Smart Home System
Technical Specification

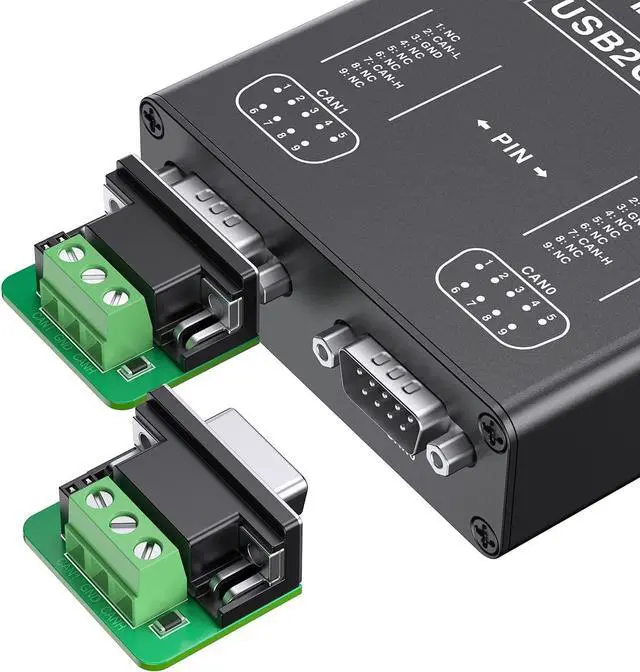

CAN: D-SUB, 9 pins
USB: USB 2.0 Full-Speed, Micro USB
Specification: 2.0A (standard format) and 2.0B (extended format), ISO 11898-2 High-speed CAN
Data Rate: From 20kbps to 1Mbps can be programmed arbitrarily
Isolation Voltage: Provides 3000VDC voltage isolation and 15kV Bus-Pin ESD protection
Microcontroller: STM32F0, 48MHz
Termination:120 Ohm resistor selectable jumper
Work Temperature: -40°~ 85°
Relative humidity: 15-90%, not condensing
PCBA Size (L * W * H): 84x80x28 mm
Weight: 190 g
Dual channels can be set up independently , It's a cost-effective solution that are safe and reliable for all your data-conversion / device-protection applications for any experienced engineer interfacing to expensive industrial equipment yet simple enough for home use by an amateur hobbyist.
USB2CAN can also be applied to obtain the data of car via the OBD connector, but you need to configured and secondary development by yourself.
Support Win7/Win8/Win10
Provide C#/C++ demo and dynamic link libraries for help customer develop own applications.
Support Mac OS version equal or above 10.11
Provide development library for help customer develop own applications.
Support Linux system
It's a socket-can device in Linux, not need to install any driver and fully compatible with other socket-can software in Linux such as can-utils.
Industrial Automation
Medical Instrument
Car OBD System
Smart Home System
Technical Specification
CAN: D-SUB, 9 pins
USB: USB 2.0 Full-Speed, Micro USB
Specification: 2.0A (standard format) and 2.0B (extended format), ISO 11898-2 High-speed CAN
Data Rate: From 20kbps to 1Mbps can be programmed arbitrarily
Isolation Voltage: Provides 3000VDC voltage isolation and 15kV Bus-Pin ESD protection
Microcontroller: STM32F0, 48MHz
Termination:120 Ohm resistor selectable jumper
Work Temperature: -40°~ 85°
Relative humidity: 15-90%, not condensing
PCBA Size (L * W * H): 84x80x28 mm
Weight: 190 g
