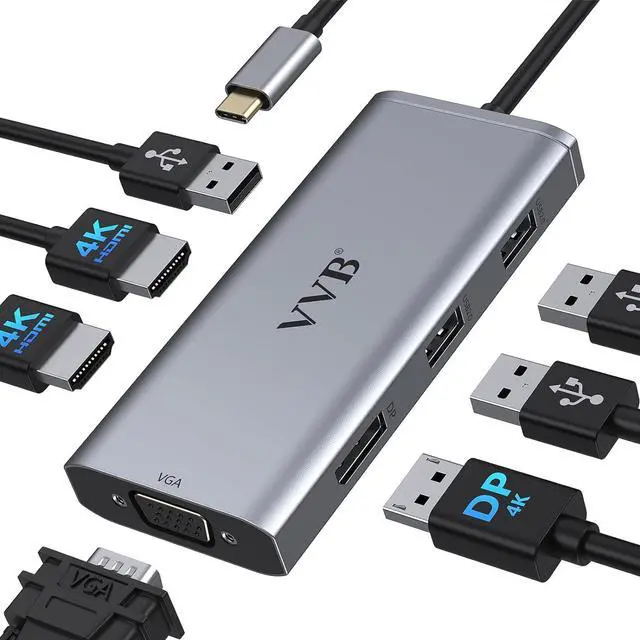

VVB Docking Station Dual Monitor, Quadruple Display Docking Station USB Type C Hub Multiport Adapter USB-C Dongle Laptop Docking Station with DP/DisplayPort+Dual HDMI+VGA+3USB 2.0 for Dell/HP/Lenovo

Previous page
Next pageLaptop Docking Station for HP/Dell/Lenovo Interface
HDMI1: Max resolution up to 4K@30Hz
HDMI2: Max resolution up to 4K@30Hz
DP Port: Max resolution up to 4K@30Hz
VGA: Max resolution up to 1080P@60Hz
3* USB 2.0: Speed up to 480Mbps

Vedio Output Resolution for Windows Laptop

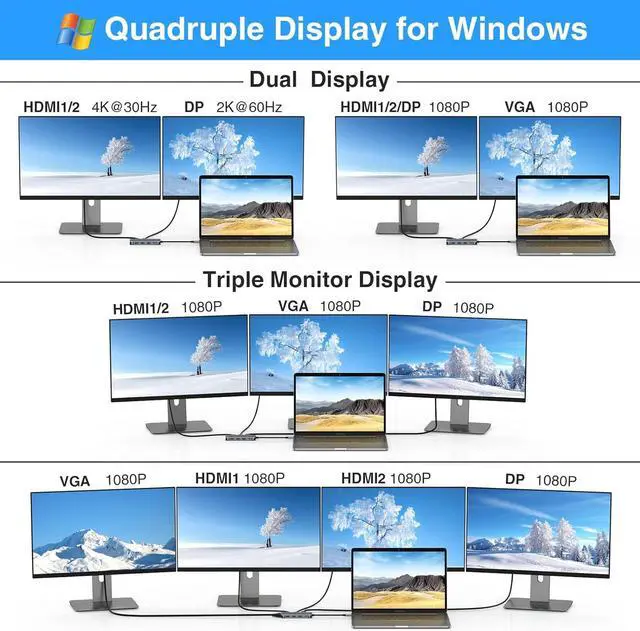

Dual Monitors

Up to 4K@30Hz + 4K@30Hz( HDMI 1/2+ DP ), while source is DP1.4.
Triple Display

Up to 1080P@60Hz 1920 x 1080 (HDMI 1+HDMI 2+ DP/VGA), while source is DP1.4.
Quadruple Monitor

Up to 1080P@60Hz 1920 x 1080 (HDMI 1+HDMI 2+ DP+VGA), while source is DP1.4.

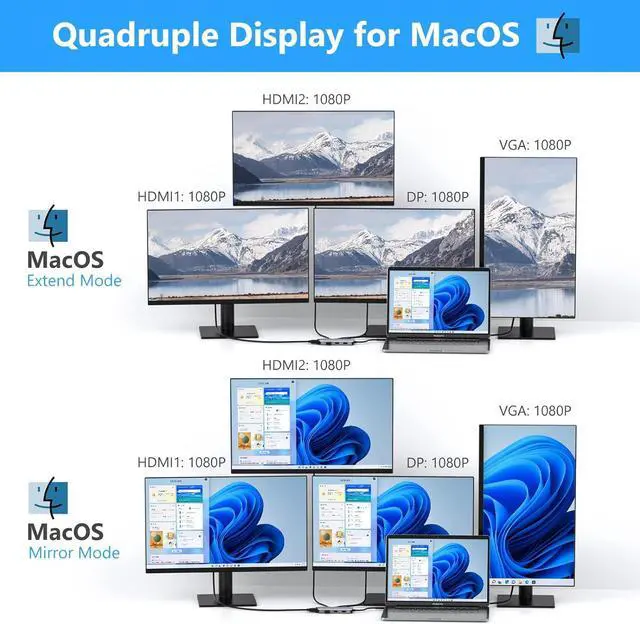

Vedio Output Resolution for MacOS
Dual Monitors & Triple Display

Up to 4K@30Hz
Quadruple Monitor

Up to 4*1080P@60Hz 1920 x 1080 (HDMI 1+HDMI 2+ DP+VGA)
Notices:
For Intel Graphics Laptop, only provides Three Display data stream outputs at the same time (INTEL chip computer can only support three external screen work, VGA screen will not work, if you need to work with four external monitors, the laptop needs to close the lid, close the lid needs to be set in the power options do not take any action).
macOS Only support Single-Stream Transport (SST),NOT support Multi-Stream Transport(MST).

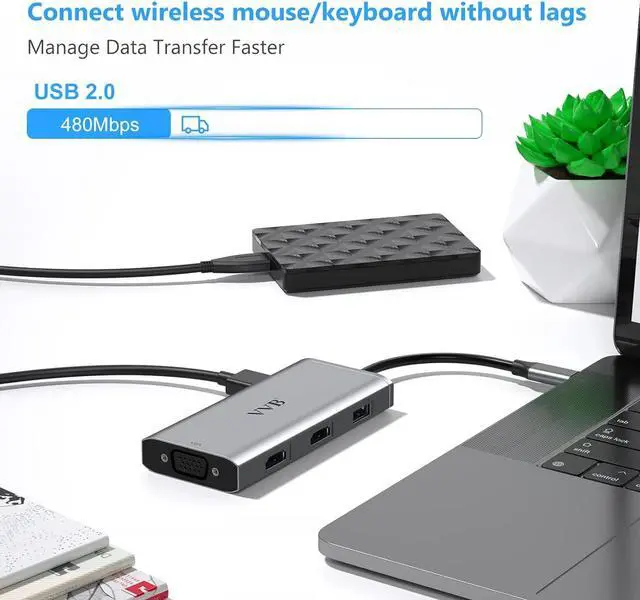

The thunderbolt dock come with 3* USB 2.0, speed up to 480Mbps to connect smartphones,tablet for effortless data transfer. And the USB 2.0 ports work well for connecting the wireless mouse/keyboard without lags.

Please note: Logitech Wireless Keyboard/Mouse not Support
Please confirm that your laptops with a Full-featured USB Type-C port.(Support DisplayPort, charging, data transfer protocol)
Only applicable to laptops with built-in usb c port, this usb type c hub can't be used with usb to usb c converter.
The incompatible laptop could not support to use the HDMI & DP& VGA function ports of this computer docking station.
Please plug in the Laptop's power adapter to the USB-C Power Delivery port before using multiple displays.
For MAC OS: It CAN NOT support MST Display, ONLY Mirror Mode due to Mac OS limitation; Not support Macbook pro air mini M1 2020.
Please update Mac OS of your MacBook to Catalina (10.15.1) or above for better compatibility.
HDMI & DisplayPort resolution will be 1080P/60Hz when work with VGA.
If you are not sure whether your laptop is Full-featured USB Type-C port, VVB docking station for lenovo are happy check if thisdock is compatible for your device.

NOTEPlease make sure your laptop with a fully function(support charging, data transfer and video output) USB-C port or Thunderbolt 3 port. If not sure please check with us.Hp LaptopsHP Elitebook 840 G5/ Elitebook X2/ Elitebook x360 1030 G3/ Elitebook 745 g6/ Elitebook 830 g6/ 2018 Elite 800 G4/ Elitebook 850 g5; Envy Geforce mx250/ Envy x360 15-ds1063cl/ ENVY Laptop 13-aq1/ ENVY 13 (13-ad000, 13-ad100) Series; Zbook 16 G6/ Zbook studio z5; Probook 440 G7/ ProBook 450 G7.Dell LaptopsDell XPS 9380/ XPS 13 9365/ XPS 15 2018/ XPS 13 9300/ New XPS 15 with i7 dedicated video card 64GB of ram and 2TB SSD; Latitude 7280/ Latitude 5310 2-in-1; Precision 7730/ Precision 7750; Laptop 5590.Lenovo LaptopsLenovo Yoga 370/ Yoga 720-13IKB/ Yoga 730/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930/ Yoga 940-14IIL / 3rd generation Thinkpad Yoga / Yoga15 Ultrabook Pro / Yoga C930/ Yoga c940/ Yoga C740-15IML/ Yoga 7i; Thinkpad E590/ Thinkpad P72/ Thinkpad T470/ Thinkpad T470s/ Thinkpad T490/ Thinkpad Carbon X1 Gen6/ ThinkPad E14/ ; Legion Y530/ Legion 5-15IMH05H/ Legion-5-17-82GN0000US; Lenovo C930/ T480s/ X390/ 81N8/ Y720; Lenovo C930/ T480s/ X390.Surface LaptopsSurface Pro 8/7; Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3.Huawei LaptopsHuawei Macbook Mate10/ Mate10 pro/ Mate20/ Mate20 pro / Mate30/ Mate30Pro.OTHER LaptopsGoogle Slate (2019); Chromebook C340-15; SanDisk Cruise Glide; Razer Blade 2017 (gtx 1060); Pixel book go 2019/2020.Notices The Laptop Docking Statio
