Docking Station, MCY 12 in 1 Triple Display Laptop USB C Docking Station Dual Monitor USB Type C Hub with Dual HDMI VGA Adapter, Compatible with MacBook, XPS, Dell, USB C Dock

SettingPlease click Intel Graphics Settings for multi-display setting or hotkey: Windows P
Note1:When connecting three displays at the same time, the resolution can only reach up to HDMI1920*1080/60HZ. VGA1366*720@60Hz
Note2: Among the four screens (Displays and laptop), only three can display. There will be one that can not displayed (either Display or laptop)
Note3Once your laptop shuts down or goes to sleep, you need to re-plug the product to get extend mode again
Triple display with MAC OS system
Setting: About This Mac>Display>Arrangement>Mirror Displays
Note1: When MAC OS needs to extend the display, you need to click on "Display" in Preferences, select the Arrangement, and then click Cancel "Mirror displays"
Note2For Mac system, it only support mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are same but different from laptop.

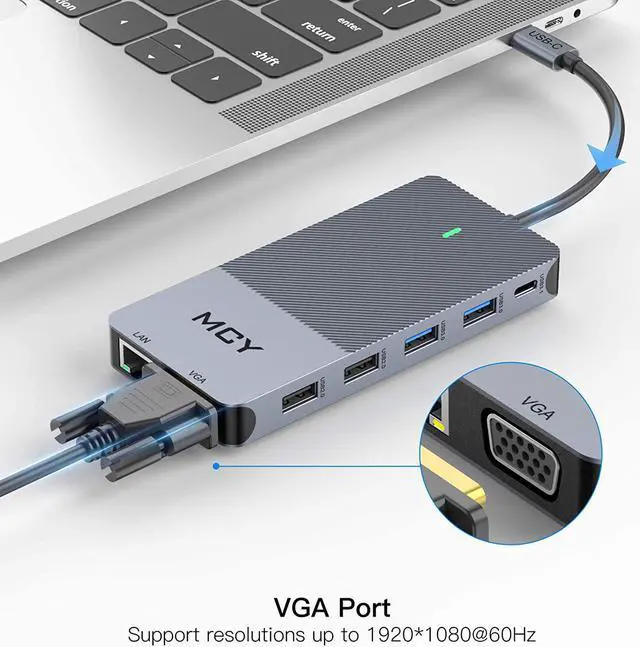

MCY USB C dock included 2*4K HDMI ports (up to 3840*2160@30HZ) and 1*VGA port(up to 1920*1080@60HZ).
The audio transmission requires HDMI output, USB C docking station dual monitor only converts HDMI audio to analog. VGA only transfer vedio, not audio.

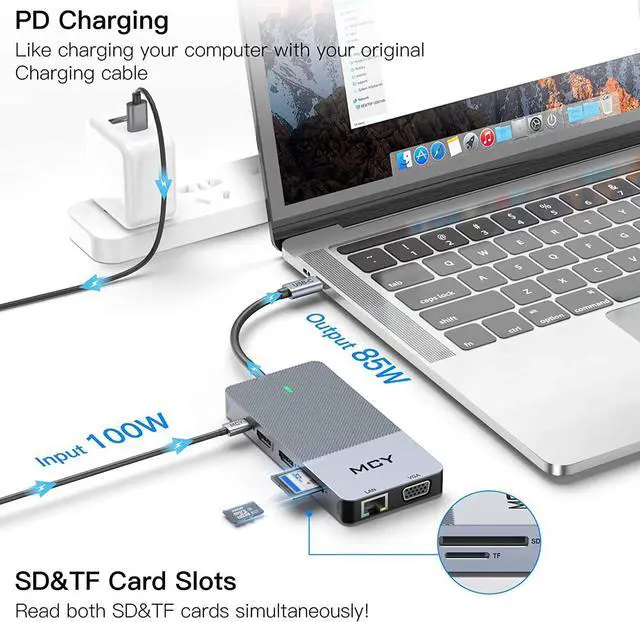

Allows maximum to 100W pass-through charging while using. The real output is based on the adapter used,(for Type-C laptop or Type-C smart phone charging) maximum to 85W.
Enables to power up your device,even when multiple peripherals are attached and working.Power is shared by hub and devices connected.

MCY USB C docking station get a high-speed network connection on your USB-C device.

Offering full 10/100/1000 Mbps Gigabit Ethernet performance over the RJ45 Ethernet port ensures you a stable, wired Internet connection.

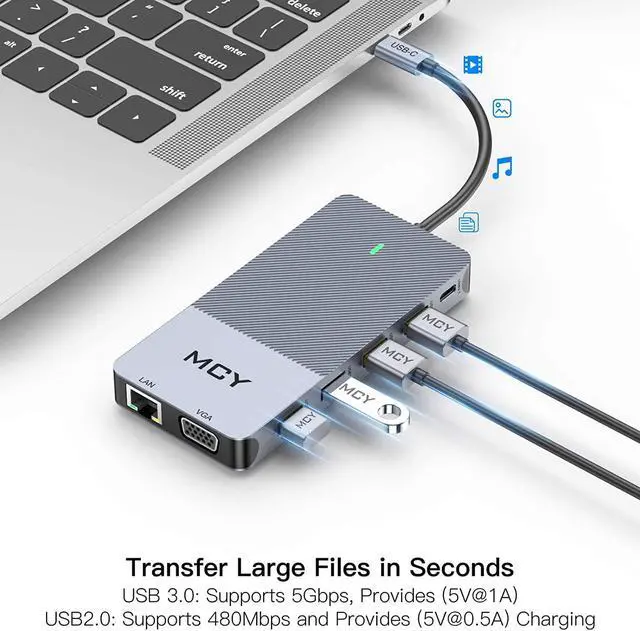

USB3.0 and 2.0 portdata transfer speed up to 5Gbps(USB3.0)/480Mbps(USB2.0). Stable and faster make it convenient for you to transfer data.
USB C 3.0 ports downward compatible with USB 2.0 and offers (5V@1A) charging (Data ports are not recommended for charging due to low output)

The Card reader of MCY USB C hub works with SDSDHCSDXC Micro SDMMC (SDXC :with high storage capacity up to 2TB).

The maximum read speed is 30MB/S. Note: SD card and TF card not be used in the same time.

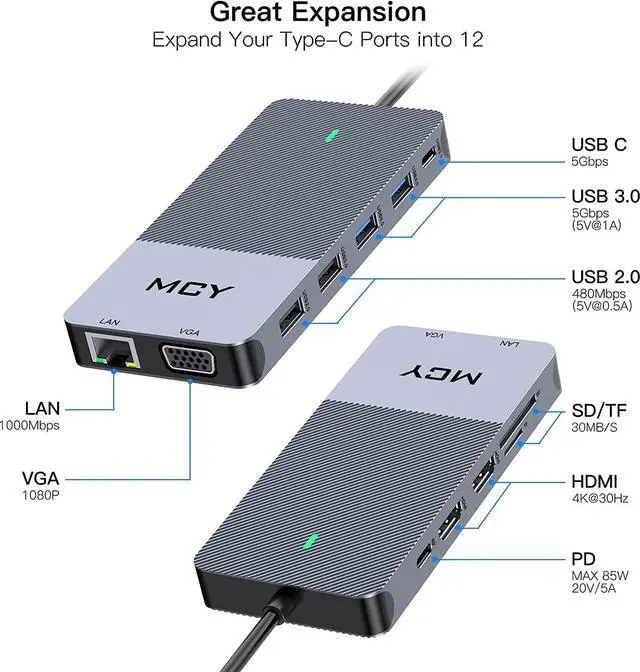

1 x USB-C PD Charging Port
1 xVGA Ports
2 x HDMI Ports
1 x TF/SD Card Slot
1 x RJ-45 Ethernet
1 x USB-C 3.0 Port
2 x USB-A 3.0 Ports
2 x USB-A 2.0 Ports

Laptop+ HDMI1or2 Resolution: (3840*2160@30Hz) The model of screen is: (A+A)
Laptop+VGAResolution: (1920*1080@60Hz) The model of screen is: (A+A)
Laptop+ HDMI 1 + HDMI 2Resolution: (3840*2160@30Hz) The model of screen is: (A+A+A)
Laptop+ HDMI 1or2 +VGAResolution: (1920*1080@60Hz) The model of screen is: (A+A+A)
Laptop+ HDMI 1+ HDMI 2 +VGAResolution: (1920*1080@60Hz) The screen is: (A+A+A+A)

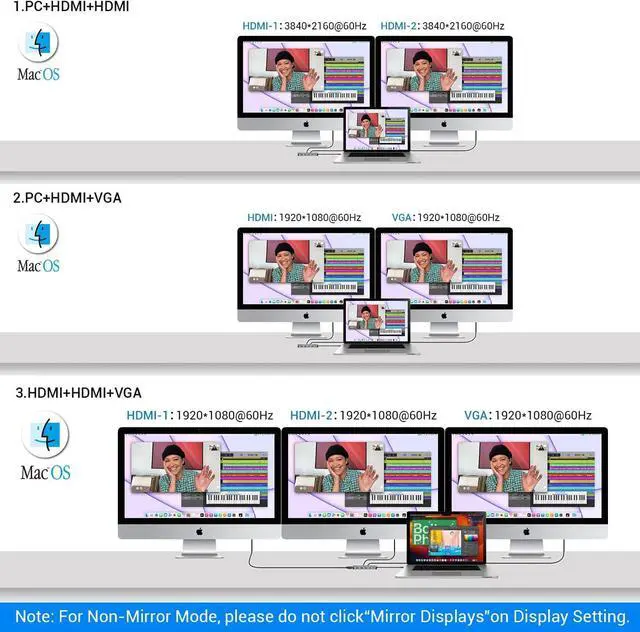

The extend mode of the MAC OS, the computer is set to not mirror mode:
Laptop+VGA+HDMI 1or2Resolution: (1920*1080@60Hz) The model of screen is: (A+B+B)
Laptop+ HDMI 1 + HDMI 2Resolution: (3840*2160@30Hz) The model of screen is: (A+B+B)
Laptop+ VGA+HDMI 1 + HDMI 2Resolution: (1080P) The model of screen is: (A+B+B+B)

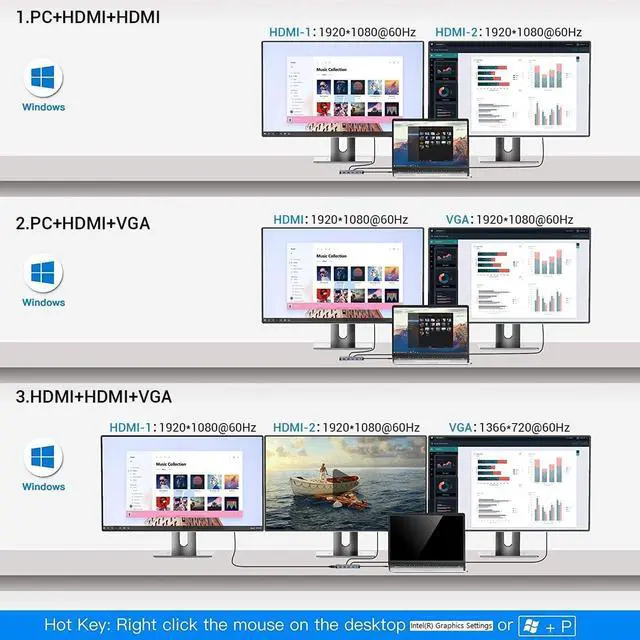

The extend mode of windows system:
Laptop+VGA+HDMI 1or2Resolution: (1920*1080@60Hz) The screen is: (A+B+C)
Laptop+ HDMI 1 + HDMI 2Resolution: (1920*1080@60Hz) The screen is: (A+B+C)
HDMI 1+ HDMI 2 +VGAResolution: (1920*1080@60Hz+1920*1080@60Hz+1366*720@60Hz) The screen is: (A+B+C)In windows system, there are only three video signal output streams together with the laptop, you need to turn off a monitor, or turn off the laptop or TV
