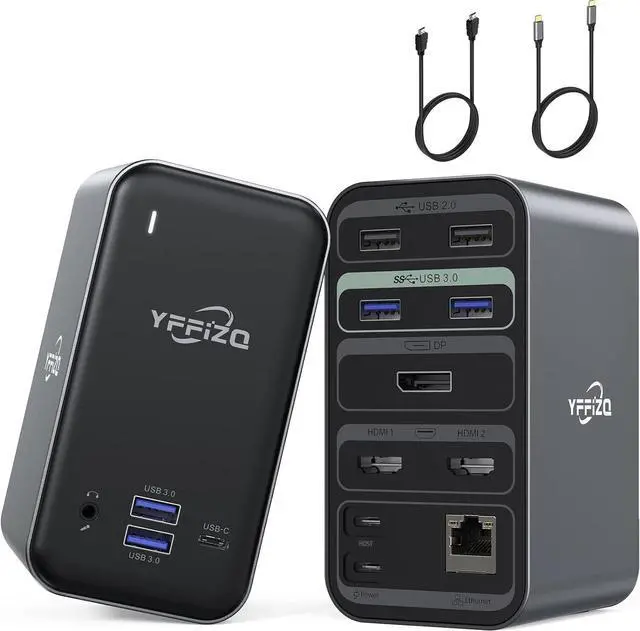

You can use YFFiZQ "Magic Box" to connect everything imaginablythis USB-C Dual Multimedia Docking Station is an ALL-IN-ONE solution to connect all your peripherals.I
deal for home office, stock investment,design,games,and online education. Just plug and play, no extra drivers or installation required,you can create a powerful workstation to improve work efficiency.
With an elegant, aluminum brushed finish and a convenient plug and play design, it has never been easier to connect your perfect work space.
Please read below carefully before ordering:
Make sure there is a USB-C ports(Thunderbolt 3 or 4) port on your laptop.
Make sure your laptop is equipped with WINDOWS system,If you want to exptend the additional 2 or 3 monitors(Extend Mode).
Macbook can only extend1 additional monitor and 3 mirror mode.

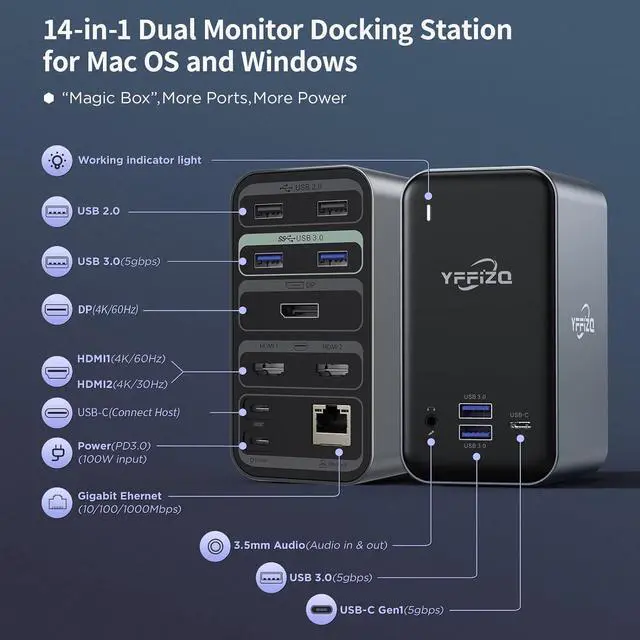

There are totally 15 ports in 1 Docking Station, it provides ports for every peripheral:
1 x USB-C Gen1: 5gbps(For data transfer or charging)
4 x USB 3.0: 5gbps/s(For data transfer)
2 x USB 2.0: Add a keyboard, mouse, and printer(For data transfer or integrate external devices)
1 x HDMI1: Resolution up to 4K/60Hz(For external 4K monitor)
1 x HDMI2: Resolution up to 4K/30Hz(For external 4K monitor)
1 x DP: Resolution up to 1080P@60Hz(For external 1080P monitor)
1 x 3.5mm Audio/Microphone: Listen to music(For media)

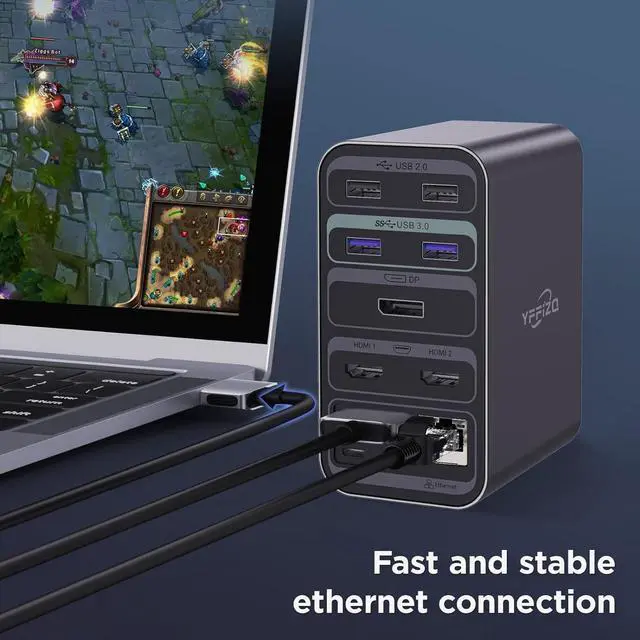

1 x Gigabit Ethernet: Speed up to 10/100/1000M(For ethernet)

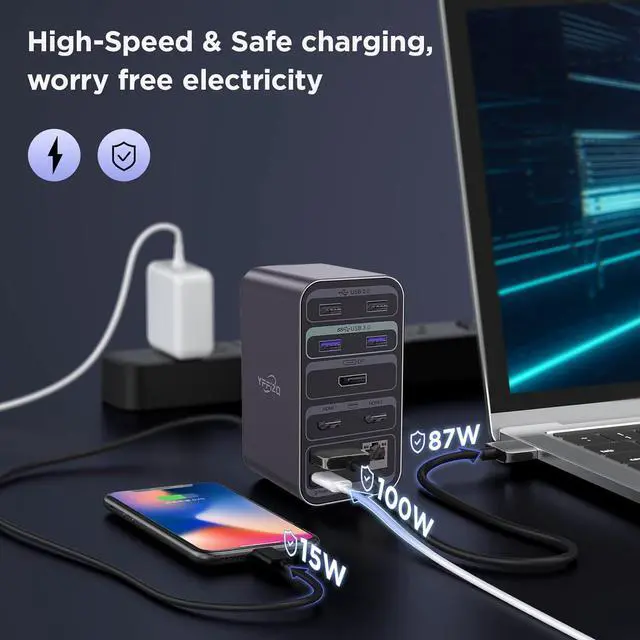

1 x PD3.0: Support up to 100W input, 87W output(Import port,connect to laptop power adapter)
[Note]
Please connect the original laptop power adapter to the PD port of docking station before usePower adapter is NOT included!
Make sure your laptop has USB-C ports, then you can implement MST(Extended) mode(A-B-C or A-B-C-D)

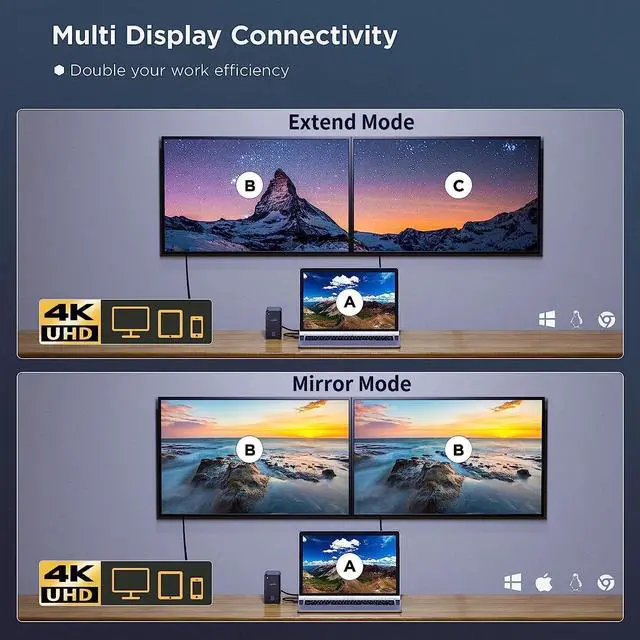

Dual 4K HDMI Display
Enjoy brilliant 4K3840*2160@30Hz/60HzHDMI display extended across two monitors, for a stunning dual setup. Requires a direct HDMI to HDMI connection also works with DP, Thunderbolt displays.
Triple 1080P Display
When triple additional monitors are connected at the same time, the resolution of all three monitors will reach 1920* 1080@60Hz.

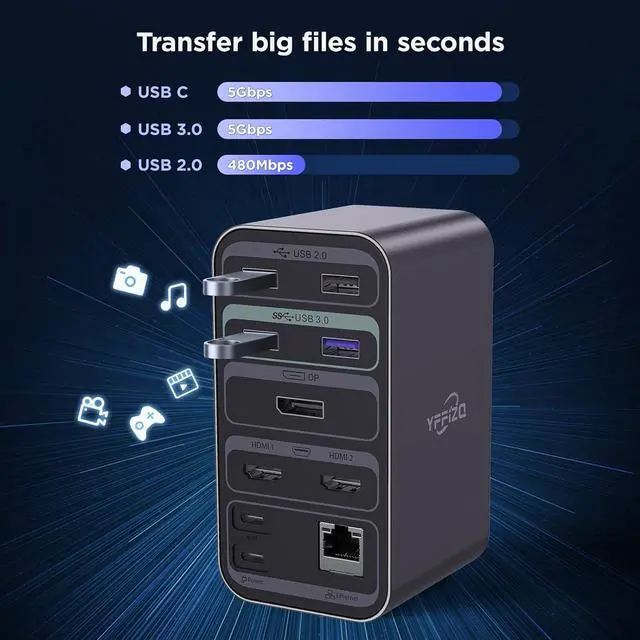

Transfer movies, photos, and music at speeds up to 5 Gbps via the USB 3.0 and USB-C ports, Ultra-fast data transfer improves efficiency and saves time.
The MacBook Pro USB C adapter hub has two USB 2.0 Ports that are specially designed for your wireless devices, such as keyboard and mouse, offer you a stable WiFi connection. (Note: The front USB-C port supports data transfer only, NOT for Alternate mode DisplayPort).
Reminder:
1. Please connect the power adapter to the USB C PD(Power Delivery) charging port of the laptop docking station or connect the original laptop power adapter to the charging port on your laptop directly before use. Note: Power adapter is NOT included.
2. Due to the process of EDID (Extended Display Identification Data) communication protocol, your displays may blackout and back on upon plugging into the docking station. This is normal behavior and the displays will recover within a few seconds, but the speed depends on the source device and monitor (1 minute at max).
3. Please connect wireless devices such as wireless mouse and wireless keyboard to the USB 2.0 ports on the docking station.
