HDMI maximum resolution: 3840X2160 P / 30Hz (requires screen support), also supports 1080 p / 23.98 / 24/50 / 59.94 / 60Hz, 1080i / 50 / 59.94 / 60Hz 720/50 / 59, 94 / 60Hz, etc.
Maximum resolution VGA: 1920x1080 P / 60Hz (requires screen support), also supports 1080 p / 23.98 / 24/50 / 59.94 / 60Hz, 1080i / 50 / 59.94 / 60Hz 720/50 / 59, 94/60 HZ, etc.
Support audio output
Support SST / MST mode
HDMI supports HDCP2.2

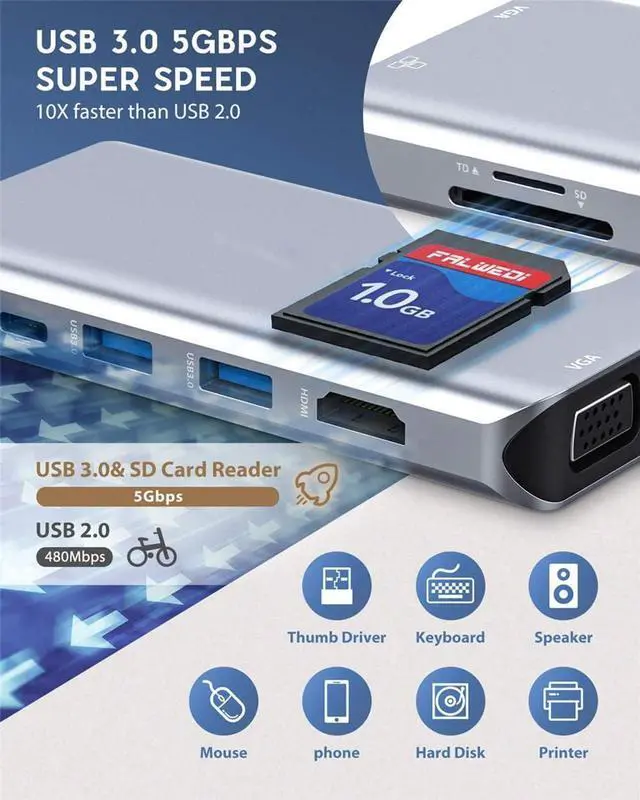

USB3.0 A/F supports a maximum current of 0.9A, USB3.0 * 1a/F single-sided interface supports a maximum current of 1.5A (BC1.2) supports a maximum rate of 5 Gbps, and supports a maximum rate of 5 Gbps.
Compatible with USB2.0/1.1
Comply with USB-C interface specifications
Support SD/TF card data storage and reading function

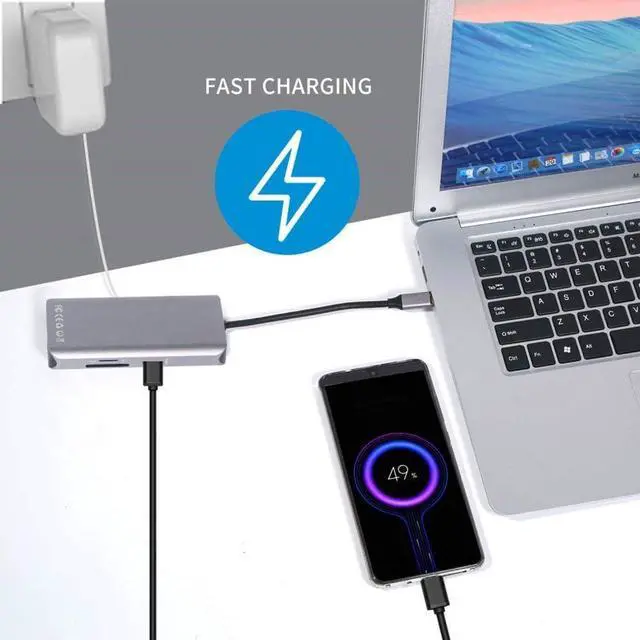

USB-C charging/F support up to 87 W
Support network maximum speed 1000 Mbps
Built-in public chip conversion and playback
specification:
gray
Material: Aluminum shell
Working temperature: 0-70°C
Working humidity: 10% to 85% RH (no condensation)
Storage temperature: -10-70°C
Storage humidity: 5% to 90% RH (no condensation)
HDMI and VGA interface: compatible with screens displayed at the same time
Separate HDMI terminal: 4K X 2K supporting 30Hz
RJ45: Gigabit network card support
VGA interface: support 1080P
USB3.0 interface: can be connected to hard disk, mouse, keyboard, etc.
