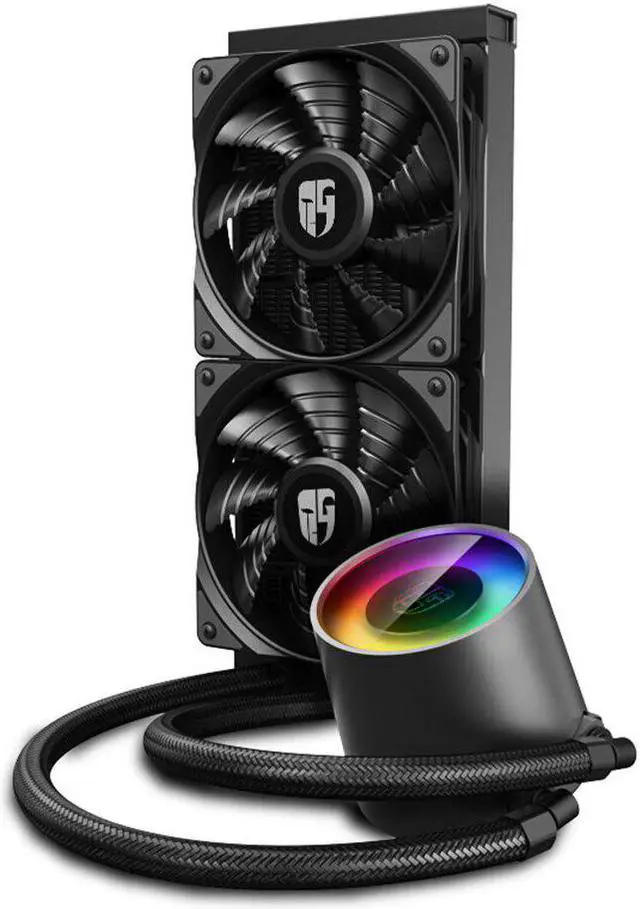

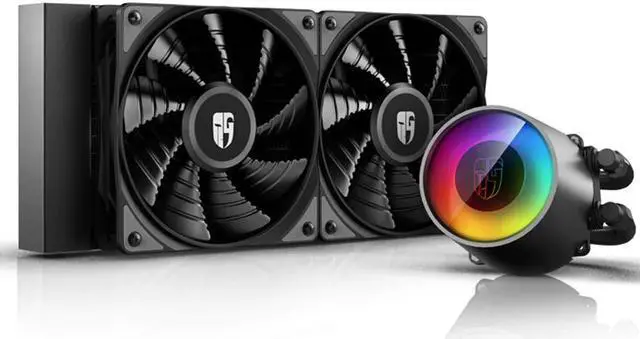

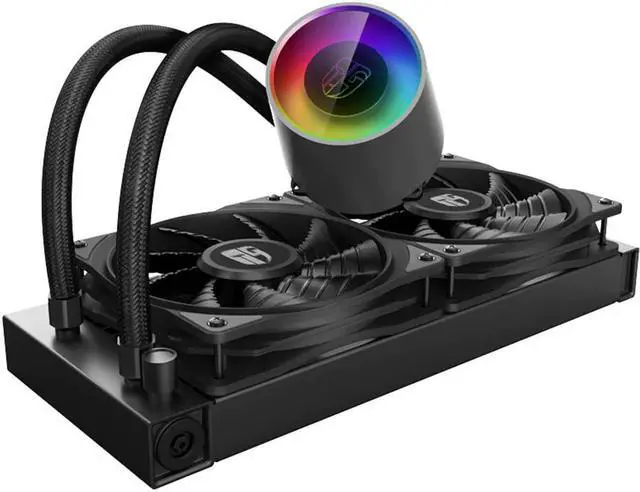

CASTLE 240 V2 CPU Liquid Cooler Desktop PC Water Cooling radiator For 115X 1200 1366 2011 AMD TR4 AM4 AM3

Features1Anti-leak Tech Inside liquid cooling system equipped.

216.7 M true color RGB flowing light system

3Motherboard and controller Addressable RGB SYNC control supported*

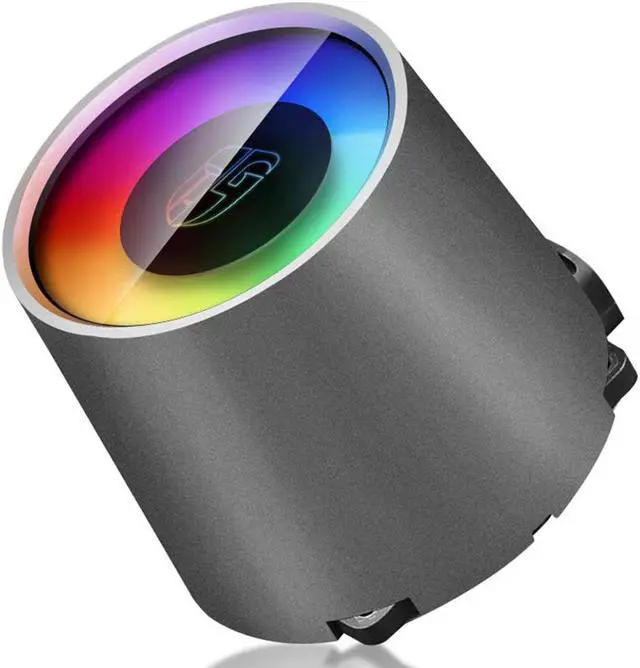

4Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.

5An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.

6The ceramic axle bearings and axle cores guarantee an ultra-long service life.

7Supports mainstream and AMD socket mounting, including TR4/AM4.

Technical SpecPump Dimensions 91×79×71 mm

Radiator Dimensions 282×120×27 mm

Radiator Material Aluminum

Net Weight 1396 g

Tube length 310 mm

Pump Speed 2550 RPM±10%

Pump Noise 17.8 dB(A)

Pump Connector 3-pin

Pump Rated Voltage 12 VDC

Pump Rated Current 0.21 A

Pump Power Consumption 2.52 W

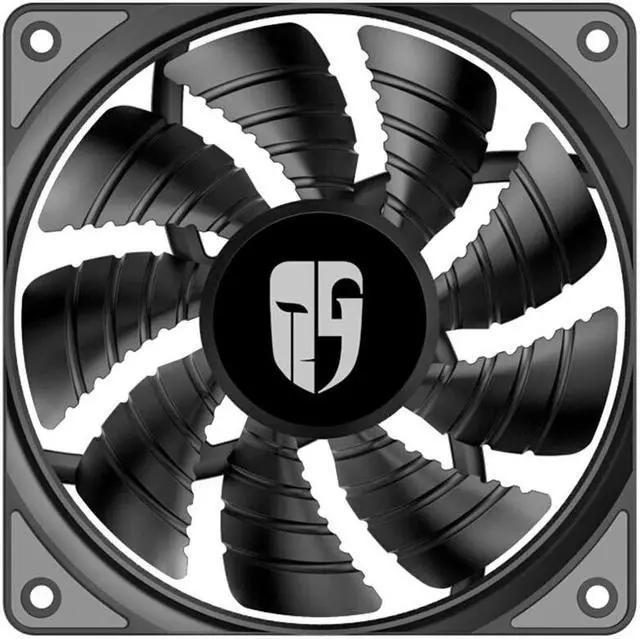

Fan Dimensions 120×120×25 mm

Fan Speed 500~1800 RPM±10%

Fan Airflow 69.34 CFM

Fan Air Pressure 2.42 mmAq

Fan Noise 30 dB(A)

Fan Connector 4-pin PWM

Bearing Type Hydro Bearing

Fan Rated Voltage 12 VDC

Fan Power Consumption 2.04 W

LED Type Addressable RGB LED

LED Connector 3-pin(+5V-D-G)

LED Rated Voltage 5 VDC

LED Power Consumption 2.25 WPUMP

EAN 6933412726418

P/N DP-GS-H12AR-CS240V2

The cold head supports RGB, the fan does not support RGB.

Application ForIntel

LGA2066/2011-v3/2011/LGA1200/1151/1150/1155/1366

AMD

TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
