Description:

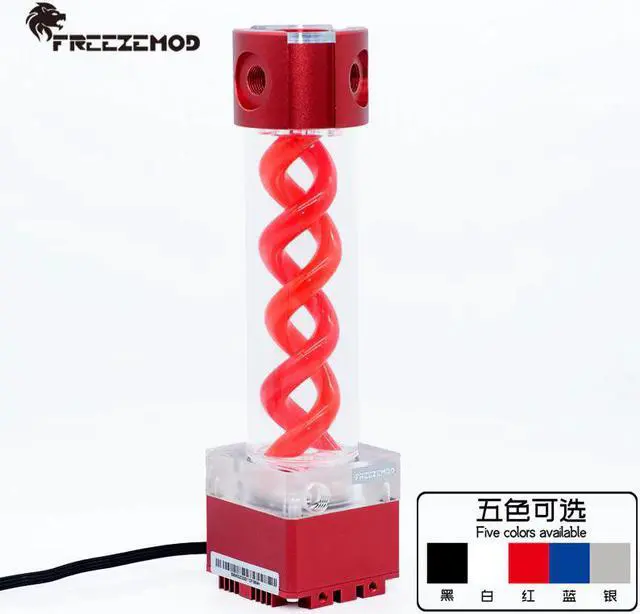

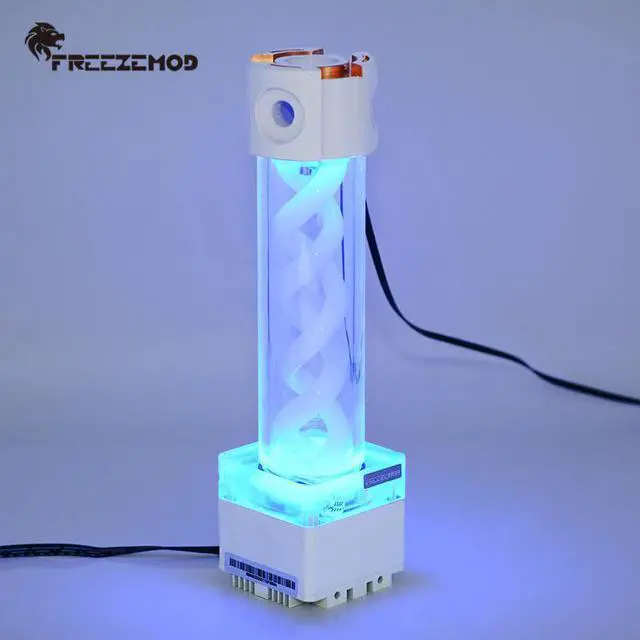

Name: water tank and pump kit
Model: PUB-FS6MB
Material: Aluminum alloy + Acrylic + Copper + Silicone
Hole position: G1 / 4 * 5

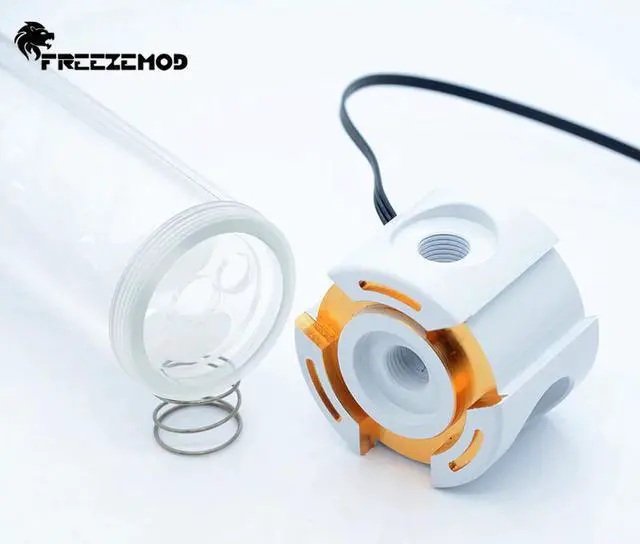

Outer diameter of water tank: Body OD50mm, cover OD60mm

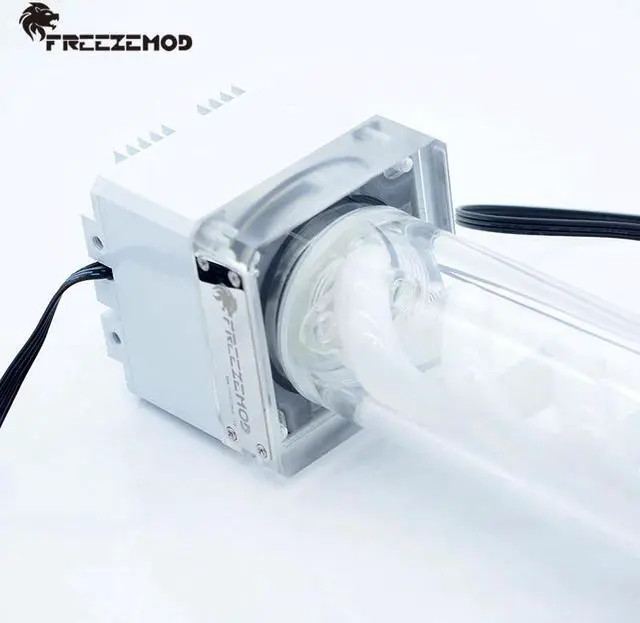

Pump size: 65mm * 65mm * 62mm

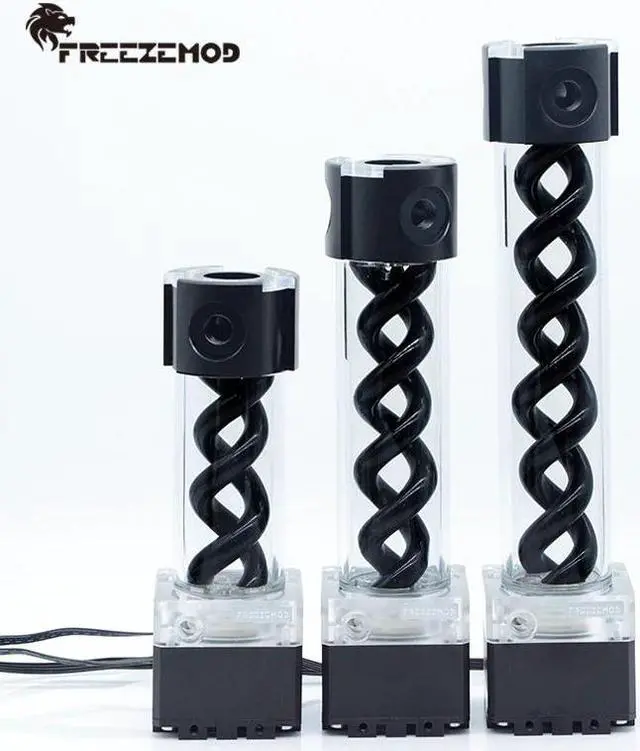

Total height: about 202mm / 252mm / 302mm
Pump specifications:
Rated current: 0.7A
Rated power: 8W
Pump head: 4 meters
Pump flow: 800L / H
Starting voltage: 7V
Maximum voltage: 13V
Working water temperature: less than 65
Power connector: large 4P (plug power supply); small 4 pin (plug into the motherboard, support PWM speed control)
Packing List:
Pump * 1
Reservoir *1
ABS adjustable bracket * 2
Metal I-bracket * 2 (Black/Silver color for radom)
Screws* 2 set
Sealing ring* 2 pcs
End plug* 2 pcs (Black/Silver color for radom)
Shock pad* 1pcs
5V RGB light strip * 1
Manual remote control *1 pcs
Defoamer * 1 pcs (installed)
Spiral tube * 1 pcs (installed)
