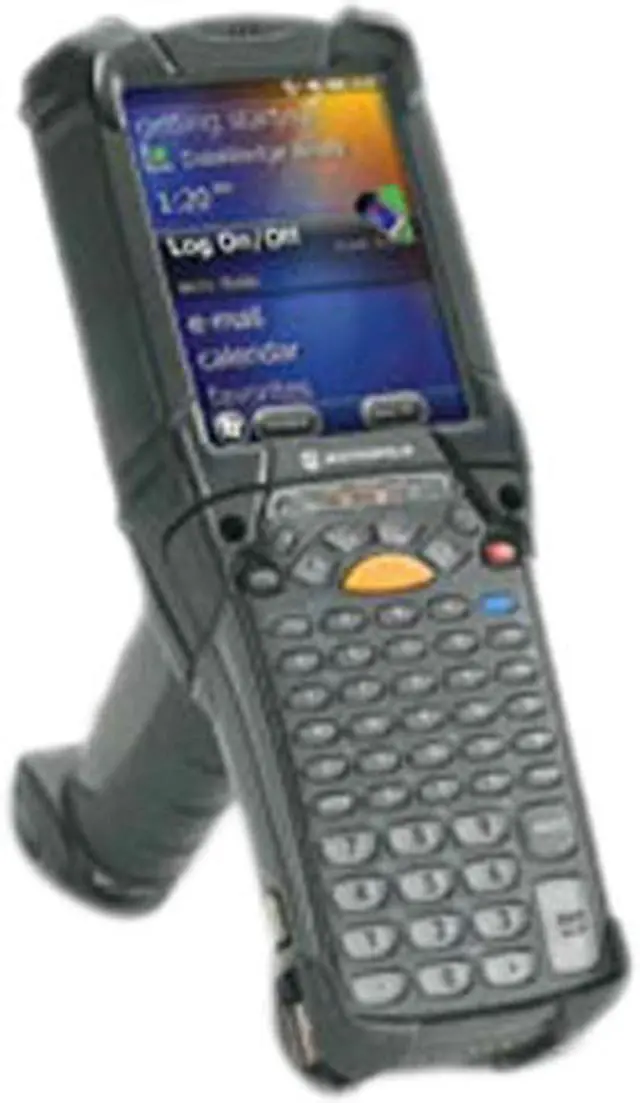

Zebra MC9200 Mobile Computer

The MC9200 Mobile Computer
THE GOLD STANDARD FOR MOBILITY IN DEMANDING ENVIRONMENTS

INDUSTRY LEADING GOLD STANDARD FOR MOBILITY IN DEMANDING ENVIRONMENTS

The MC9200 is the next generation in the MC9000 Series, the industry’s gold standard for mobility in inventory and asset management in the most demanding environments — from the warehouse floor to the dock door.

The MC9200 once again raises the bar on rugged mobile computing and device flexibility, with your choice of three operating systems, the ability to switch between operating systems, seven of our most advanced scan engines, six interchangeable keypads and plenty of power to support today’s highly-graphical applications. And if you already own MC9000 Series mobile computers, you can use the same accessories with the MC9200, demonstrating our commitment to helping our customers upgrade as cost-effectively as possible to the newest technology platform.

The MC9200 — all the mobile computing technology you need to take productivity and accuracy to the next level in your toughest environments.

The MC9200

When it comes to mobility, Zebra’s MC9000 Series rugged mobile computers are the industry’s gold standard, long recognized as the best selling mobile computer for demanding environments. Every day, over two and a half million workers use their MC9000 Series device to better manage inventory in retail stores, warehouses and manufacturing plants; keep track of baggage and freight out on airport tarmacs and help keep vehicles, weaponry and other assets on military bases in peak operating condition.

We took the best and made it better to bring you the next generation in the MC9000 Series, the MC9200. You get the same great form factor and the same great rugged design, with more of what you need most. More processing power. More memory. Faster wireless connections. A choice of operating systems: Windows Embedded Handheld, Windows CE or Android KitKat. The ability to switch between operating systems through your Zebra OneCare service contract. And more scan engine options, including an extended long range imager with a best-in-class range from 3 in. to 70 ft./7.6 cm to 21.4 m. Get everything you need to support next-generation mobile applications that help employees work even faster and smarter with the MC9200 — only from Zebra.

You get the same great proven, exceptionally rugged design

With over two and a half million sold, no other rugged mobile computer offers the same level of unsurpassed proven reliability. The MC9200 boasts the same unrivaled rugged feature set as its predecessor, the MC9190-G, offering:

A durable shock-resistant housing
The integrated one-piece gun handle is part of the housing, greatly increasing durability over snap-on handles. A Torque Cell design replaces the traditional clamshell construction — the two halves of the housing slide together and are connected with a series of 28 hooks and locks instead of a handful of plastic ‘flanges’ (known as bosses) and screws. The force of a drop is no longer concentrated on the bosses, instead dispersed throughout the 28 connection points, eliminating twisting and flexing in any one spot.

A durable battery design
A flat corrosion-proof battery connector replaces traditional pin-style connectors, where a single broken pin prevents operation. And since the connector is part of the battery instead of part of the device, you get a new connector every time you replace the battery.

Ready for the cold
Use the MC9200 to streamline your cold chain operations. With a temperature rating of -4° F to 122° F/-20° C to 50° C; an IP64 sealing rating and an internal replaceable desiccant pack* that prevents condensation from forming inside the device, the MC9200 is ready for your refrigerators and temperature controlled loading dock.

Protection for sensitive electronics
Our innovative tuned external rubber bumpers are constructed of materials that significantly reduce the effects of shock during a drop. Sensitive electronics moved less than 6/1000ths of an inch in tests, approximately 40 times less than the ¼ inch movement common in clamshell housings. In addition, the circuit board is not attached to the housing with screws. Instead, it is held in place with floating rubber-wrapped magnesium frames. Since the entire electronic assembly “floats” inside the housing, it doesn’t bend when the unit is dropped.

Reliable sealing
Since we utilize insert molding fabrication, parts can be added during the molding of the plastic housing, improving the quality and the reliability of the environmental sealing.

* The desiccant pack is only available on condensation resistant models.

A durable touchscreen design
Our polycarbonate display is rated to a 4H hardness factor instead of the typical 3H for most touchscreens, making it more resistant to wear and tear. And an air gap between the touchscreen and the display further protects the display.

Ultra strong scanner exit window
Incredibly tough Corning® Gorilla® glass is virtually scratch and shatter proof, protecting one of the most business-critical features of the MC9200 — barcode scanning.

The highest endurance specification in this class
The MC9200 continues to operate reliably, even after 2,000 tumbles — the equivalent of 4,000 3.28 ft./1 m hits — the highest rating in this class.

The industry’s toughest drop test
All drop tests are not created equally. To ensure that the MC9200 can handle a drop, we surpassed the 8 ft./2.4 m military MIL-STD 801G 516.5 specifications. During the drop test, the unit must be:

• Powered on, instead of off
• Dropped to concrete instead of plywood over concrete
• Dropped across the entire operating temperature range instead of room temperature
• Must not lose power, data or a network connection, or reboot during a fall, instead of simply powering up after the test is complete

You’re ready for next generation mobile applications — today

With its dual core 1GHz OMAP 4 processor, up to 1GB RAM/2GB Flash memory plus a user-accessible SD card slot that can add up to 32GB of memory, the MC9200 provides the power to run virtually any application — from today’s elegant and intuitive graphics-based applications to simpler terminal emulation applications.

Your data is protected with government-grade security

The MC9200 brings government-grade security to the enterprise. The native FIPS 140-2 Level 1 validation meets the security requirements of some of the most demanding federal government agencies, providing the equivalent of wired-line security for data that is stored on the device, as well as data traveling over the wireless LAN. You can add extra layers of security for extremely sensitive data with Zebra’s Mobile Security Suite — such as a device-level firewall, device-level intrusion prevention, device-level enforced authentication and a certified Virtual Private Network. And with our remote device management solutions, IT can simply press a button to deploy additional layers of security — or lock and wipe a lost device. And unlike many other mobile devices, our security features don’t impact device performance.

Your workers get single device simplicity for voice and data

It couldn’t be any easier to add push-to-talk (PTT) voice communications to the MC9200. Since the complimentary Workforce Connect Push-to-Talk Express client software is already installed, the MC9200 is ready for PTT calls to any other Zebra Push-to-Talk-enabled devices, right out of the box. With Radio Link Server, workers can even talk to two-way radio users — despite the fact that the devices operate on two completely different networks. Now, workers can carry a single device, yet reach individuals or an entire team to help resolve issues, right on the spot.

Create modern and intuitive All-touch TE apps

All-touch Terminal Emulation (TE), powered by Wavelink, allows you to easily convert all of your existing “green screen” TE apps into intuitive HTML5 all touch apps that are easy to use, reduce keystrokes, and improve productivity. You can give your legacy WMS and ERP a modern upgrade without writing a line of code. (Available for all Android models.)

You get a device with the intelligence to manage itself

Zebra’s Interactive Sensor Technology gives your MC9200 mobile computers the brainpower to preserve battery power. When the MC9200 is placed face down or remains idle for a period of time you define — such as two minutes — it can automatically enter power saving mode. When workers pick up the device to resume work, it returns to the last known state, allowing workers to pick up right where they left off. And each time a free fall occurs, you can trigger a potential man-down alarm, improving employee safety. The event is also automatically logged in the history file, improving device troubleshooting and worker accountability.

Deliver wireless connections that rival wired network performance

With 802.11n bandwidth and a new antenna that helps create highly efficient wireless connections, your workers will experience wireless voice and data that is equivalent to a wired phone and desktop computer. Expanded Wi-Fi support for 802.11d/h/i/k/r further enhances Wi-Fi performance and security.* And our wireless technologies also help minimize wireless traffic, helping preserve processing power and extend battery cycle times.

* Android models: 802.11 a/b/g/n/d/h/i/k/r; WinCE/WEH models: 802.11 a/b/g/n/d/h/i

Track your MC9200 devices — effortlessly

With the MC9200, you can automatically track which employee has which device to improve accountability. A fixed RFID reader can automatically read the RFID tag embedded in the MC9200 as well as a worker’s RFID-enabled identity badge every time employees enter and exit the device check-in/check-out area.** The result is improved accountability for device care during a shift and for the return of devices at the end of a shift, improving management and utilization. If you have a fixed reader and antenna at exit points in your facility, any device that passes the RFID reader can trigger an alert to help prevent device theft.

** Integrated RFID tag is available with premium models only.

Boost productivity with industry-leading data capture technology for instant capture of virtually any barcode

The MC9200 offers the most scanning flexibility in its class — seven different scanning options let you tailor the MC9200 to capture whatever types of data you need, as quickly and as accurately as possible.

1D Lasers

For businesses that utilize 1D barcodes, two laser options deliver first-time every-time barcode capture, even if barcodes are scratched, dirty or poorly printed.

SE965 1D Laser
Adaptive Scanning technology delivers a best-in-class scanning range — from near contact to as far as 15 ft./ 4.5 m. The Liquid Polymer scan engine is frictionless and won’t wear out. And the patented die cast chassis offers the industry’s best rating for durability, offering dependable operation, even after a 2,000G shock.

SE1524-ER Extended Range 1D Laser
This scan engine is ready to capture barcodes over an extraordinary range — from near contact to as far as 45 ft./13.71 m away. Fuzzy logic enables the accurate capture of even the most challenging barcodes across the entire read range — including poorly printed or low contrast barcodes. Accurate aiming at any distance is no problem. The 650 nanometer laser diode generates a bright, highly visible scan line that is easy to see, even if an item is on the top shelf of a warehouse rack.

1D/2D Imagers

Six imager options that use Zebra’s revolutionary imaging technology bring stunning laser-like performance to both 1D and 2D barcodes. Our imagers can capture challenging barcodes, such as those under shrinkwrap, as well as new types of data that can help you further streamline your business processes — such as documents, images and signatures. And omnidirectional scanning brings point-and-shoot simplicity to barcode capture — users never need to align scanner and barcode.

MC9200 Specifications Chart
