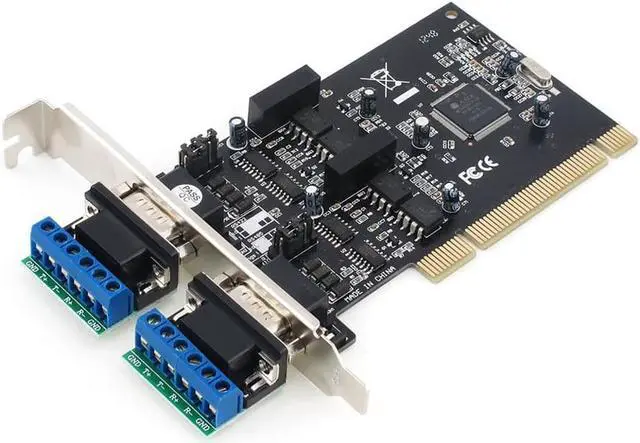

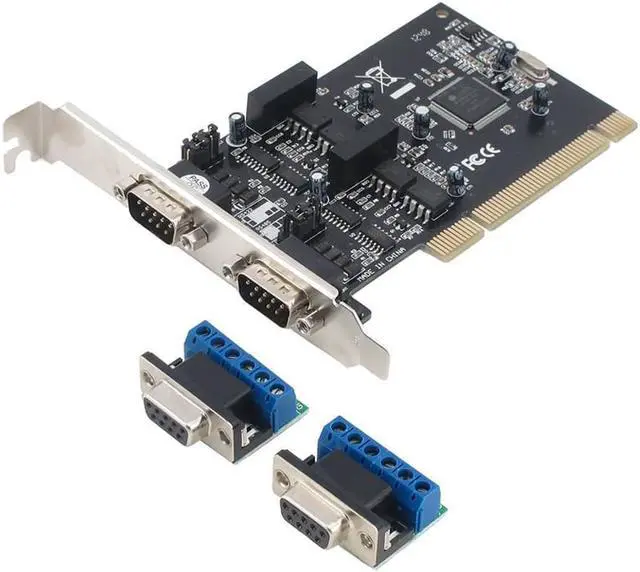

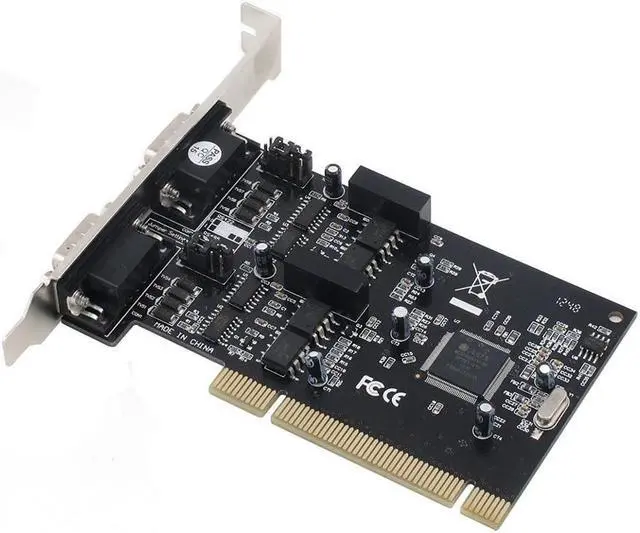

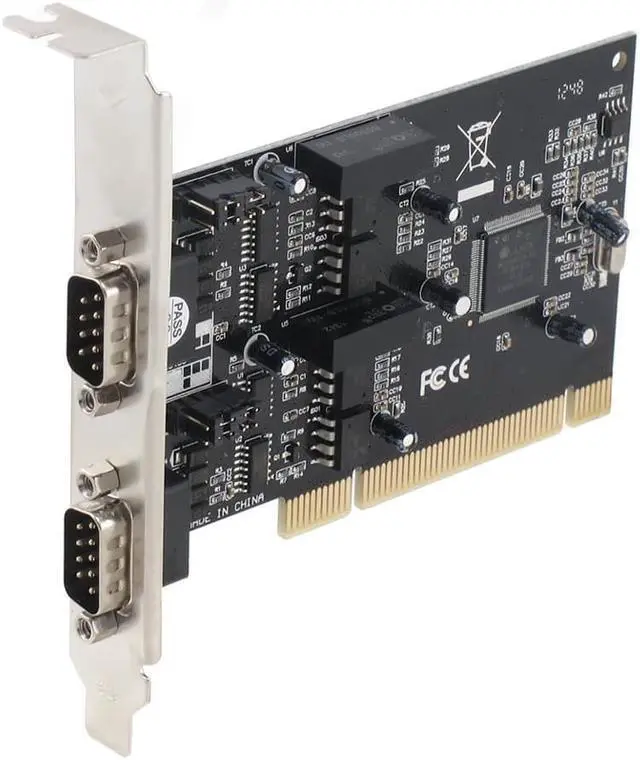

PCI 2 PORT RS-422/485 Adapter Card

Features:

Hardware Interface Connector: DB9 male 2
2 x DB9 to 6 Pin screw terminal module included
Signal:
RS-422: T/R+? T/R-? RXD+? RXD-? GND
RS-485: Data+ (A) Data- (B) GND

Optical Isolation Protection: Isolation Voltage 2500Vrms 500VDC
Continuous DC/DC Module
Interface Protection: 400W Surge Protection each line for RS-422andRS-485 interface ESD Protection
Transmission: distance: 1-1200meters (9600bps)

Specifications

:

Fully compliant with PCI Local Bus Specification, Revision 2.3
2 x 16C 450 / 550 / Extended 550 compatible UAR
Ts
Bi-directional Speeds from 300-115200bps
Supports Hardware, Software flow control
5, 6, 7, 8, 9-bit Serial format support
Even, Odd, None, Space & Mark parity supported
On Chip deep 256 Byte FIF
Os in Transmit & Receive paths of each Serial Port
Support OS: Windows 7/Vista/XP 32/64-bit, Win 98 32 bit
Linux kernel 3. x/ 2.6. x
Windows CE 5.0 / 6.0

Applications:

Industrial control
Serial Attached Devices
Serial Networking / Monitoring Equipment
Data Acquisition System
POS Terminal & Industrial PC


Package Content:
1 x PCI RS482/485 adapter
1 x Driver CD
2 x DB9 to 6 Pin Screw terminal module
