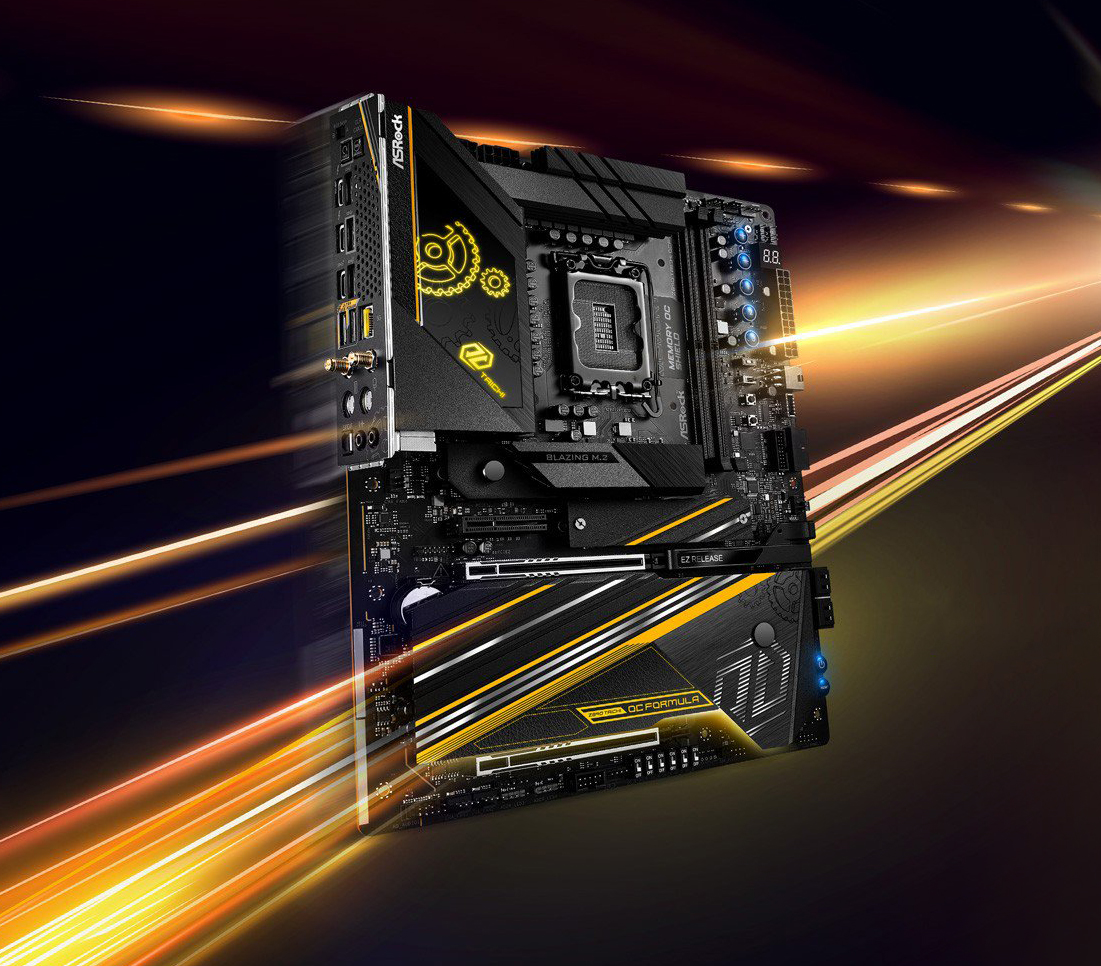

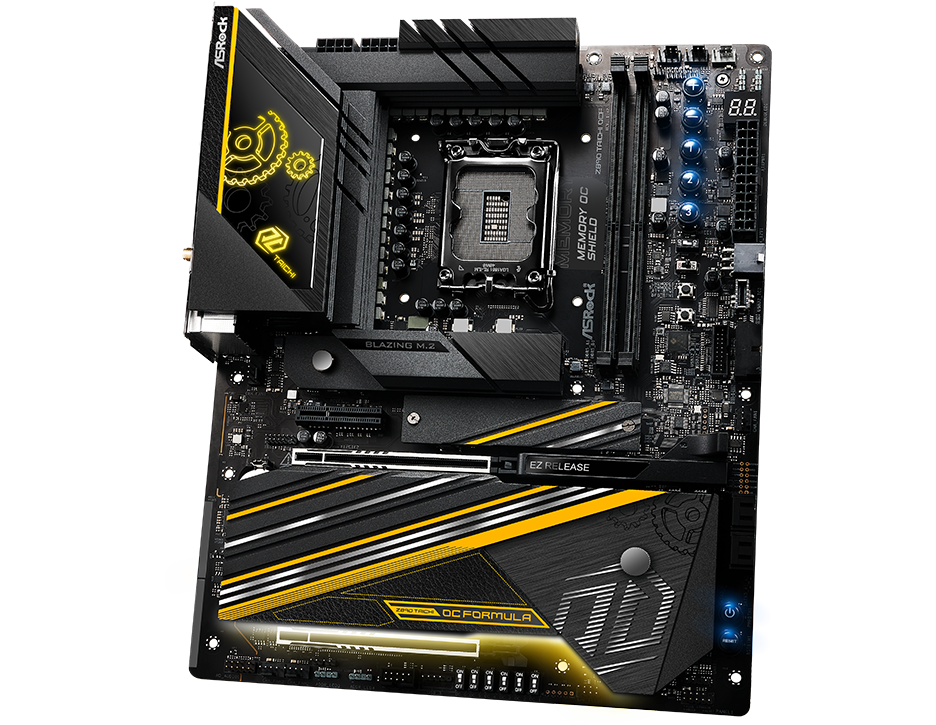

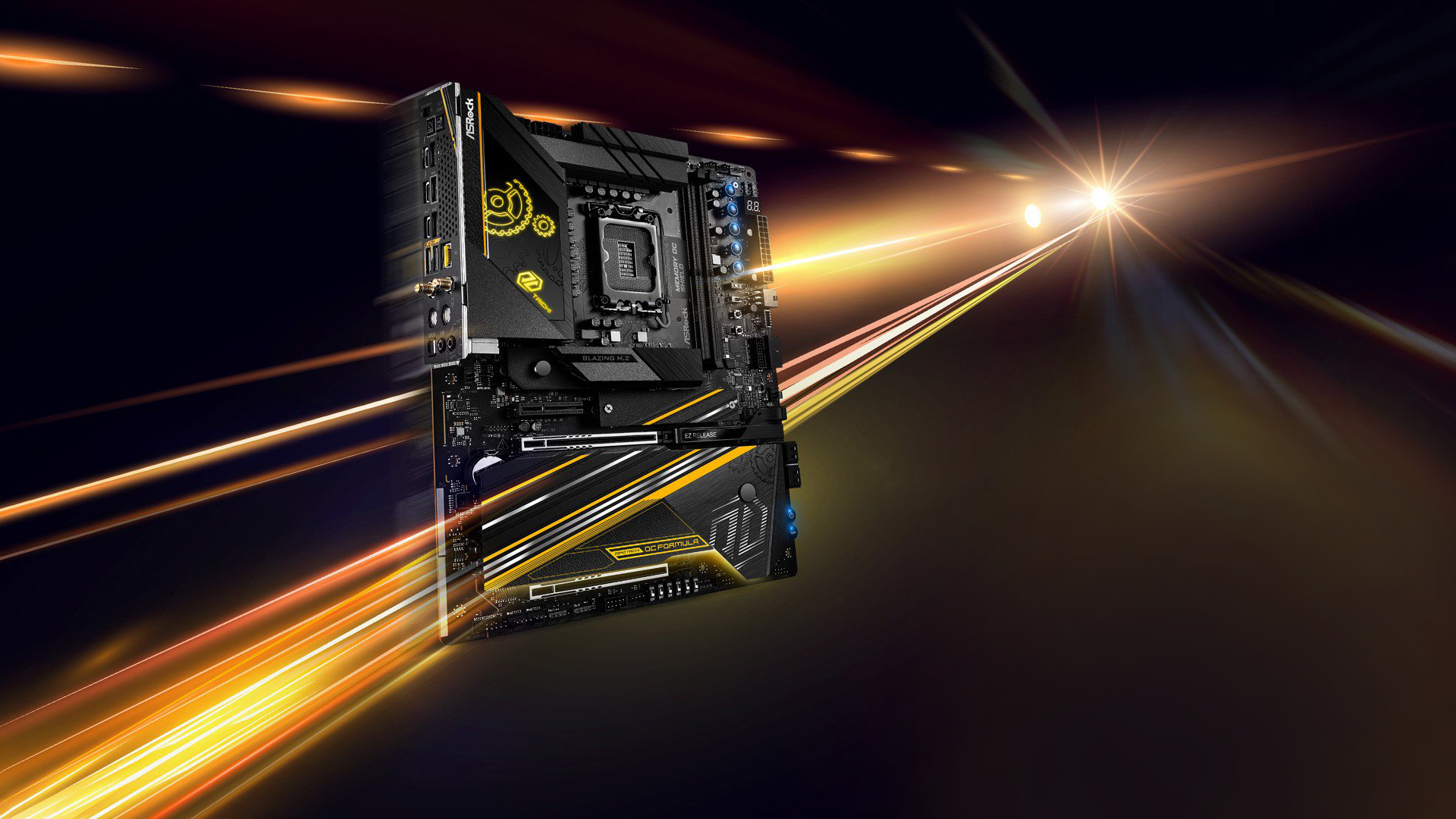

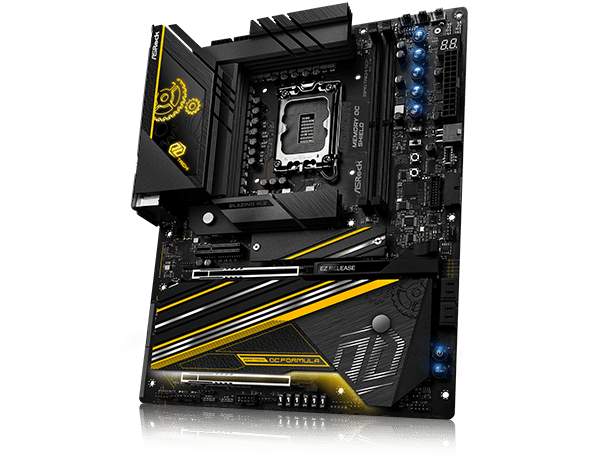

    ASRock Z890 Taichi OCF LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard

    (18)(8) Write a Review
    • Z890 Taichi OCF
    • Z890 Taichi
    • Z890 Taichi Lite
    • Z890 Nova WiFi
    • Z890I Nova WiFi
    • Z890 Riptide WiFi
    • Z890 Lightning WiFi
    • Z890M Riptide WiFi
    • Z890 Steel Legend WiFi
    • Z890 Pro RS WiFi
    • Z890 Pro RS WiFi White
    • Z890 Pro RS
    • Z890 Pro-A WiFi
    • Z890 Pro-A
    • Z890 LiveMixer WiFi
    • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    • 22+1+2+1+1 Power Phase, 110A SPS for VCore
    • 2 x DDR5 DIMMs Supports Dual Channel, up to 10133+ (OC)*
    • 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
    • Graphics Output Options: 2 Thunderbolt™ 4 Type-C
    • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
    +
    +
    Specs
    Reviews (18)

    Learn more about the ASRock Z890 Taichi OCF

    Best Seller Ranking #86 in Intel Motherboards
    Model
    Brand ASRock
    Model Z890 Taichi OCF
    Supported CPU

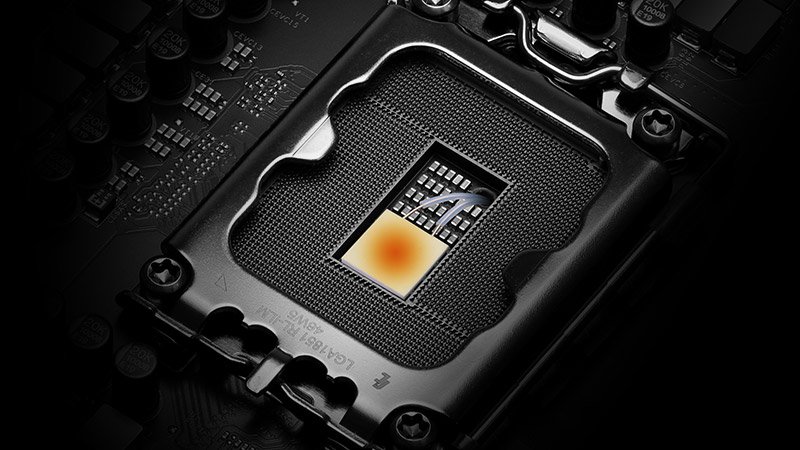

    CPU Socket Type LGA 1851
    CPU Type Intel Core Ultra Processors (Series 2)
    Chipsets
    Chipset Intel Z890
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard DDR5 10133 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9466 / DDR5 9600 / DDR5 9866
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Memory Feature Supports DDR5 non-ECC, un-buffered memory up to 10133+(OC)*
    - 1DPC 1R Up to 10133+ MHz (OC), 6400 MHz Natively.
    - 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
    Max. capacity of system memory: 128GB
    Supports Intel Extreme Memory Profile (XMP) 3.0
    Expansion Slots

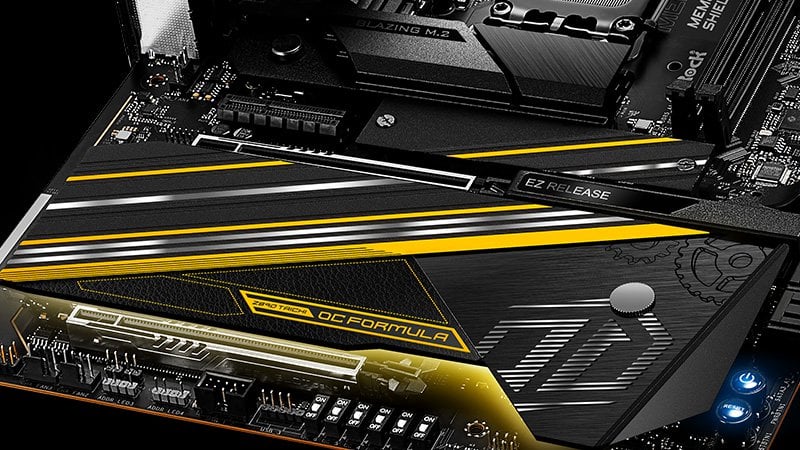

    PCI Express 5.0 x16 CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
    - 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode*
    PCI Express x4 Chipset:
    - 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*

    * PCIE3 supports PCIe riser cards to extend one x8 slot to x4/x4 slots.
    * Supports NVMe SSD as boot disks
    - Supports AMD CrossFire
    - 15µ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s
    M.2 CPU:

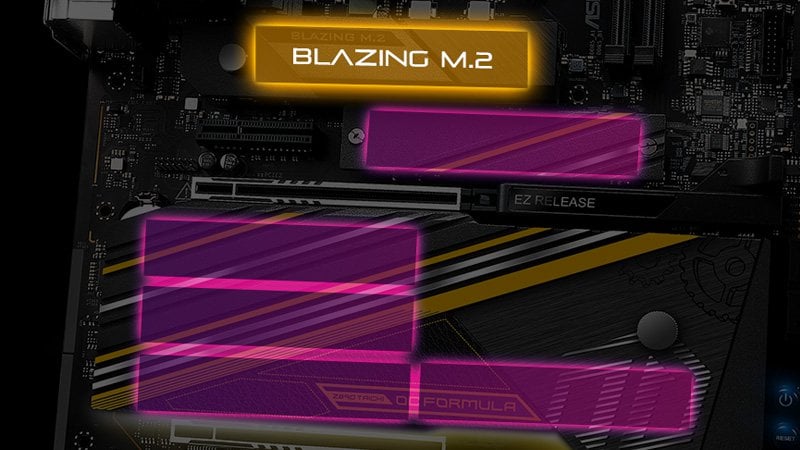

    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    ASMedia ASM1061:
    * Supports Intel Volume Management Device (VMD)
    * Supports NVMe SSD as boot disks
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    Onboard Audio
    Audio Chipset Realtek ALC4082
    Audio Channels 7.1 CH HD Audio with Content Protection
    Nahimic Audio
    Onboard LAN
    LAN Chipset Realtek RTL8126
    Max LAN Speed 5Gbps
    Wireless LAN Wi-Fi 802.11 be
    Bluetooth Bluetooth 5.4

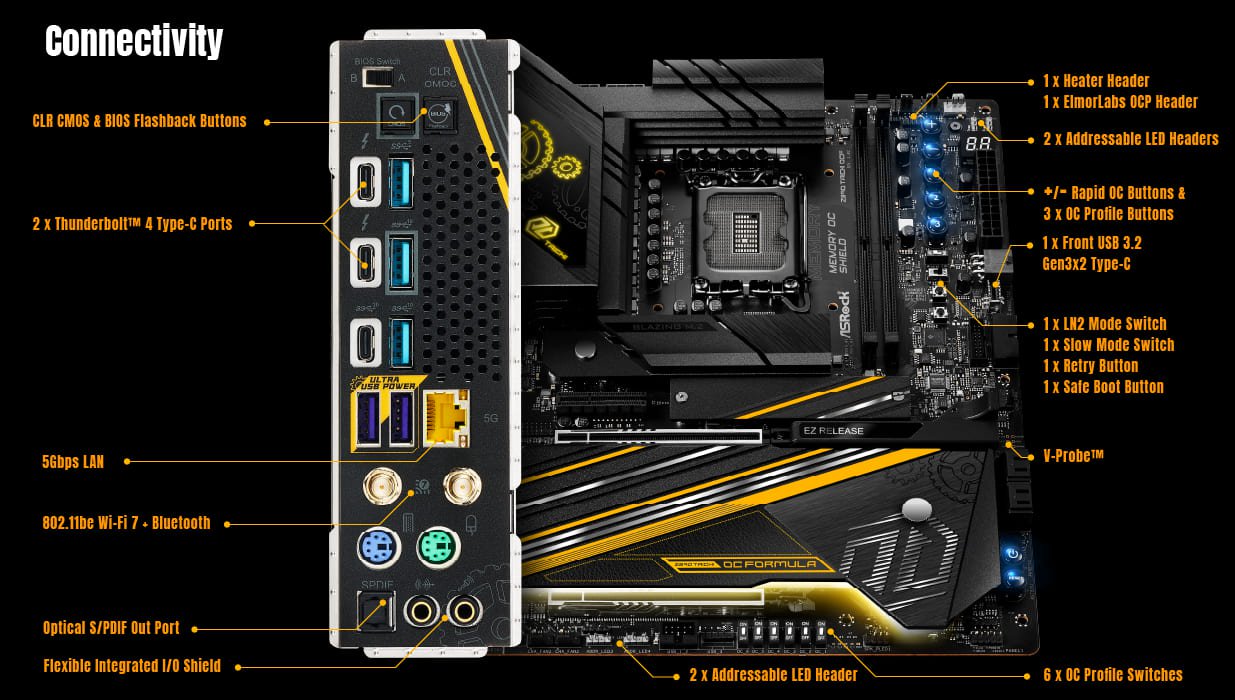

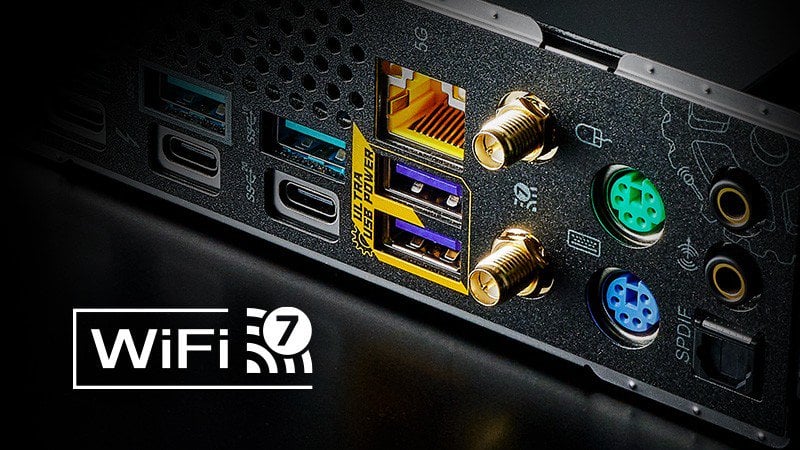

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x PS/2 Keyboard Port
    1 x PS/2 Mouse Port
    1 x Optical SPDIF Out Port

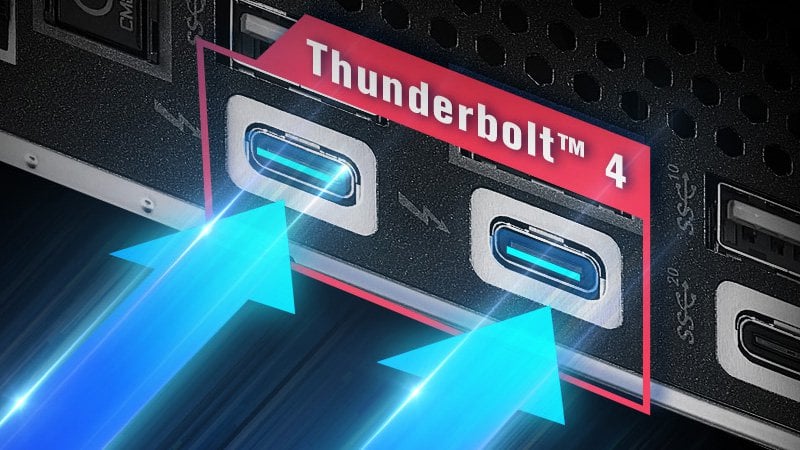

    2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
    1 x USB 3.2 Gen 2x2 Type-C Port (20 Gb/s)
    4 x USB 3.2 Gen 2 Type-A Ports (10 Gb/s)**
    1 x USB 3.2 Gen 1 Port
    1 x RJ-45 LAN Port
    1 x Clear CMOS Button
    1 x BIOS Flashback Button
    1 x BIOS Selection Switch
    1 x Line Out Jack (Gold Audio Jack)
    1 x Microphone Input Jack (Gold Audio Jack)
    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    ** USB32_45 support Ultra USB Power.
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    Other Connectors 2 x Thermistor Cable Headers
    1 x Power LED and Speaker Header
    4 x Addressable LED Headers*

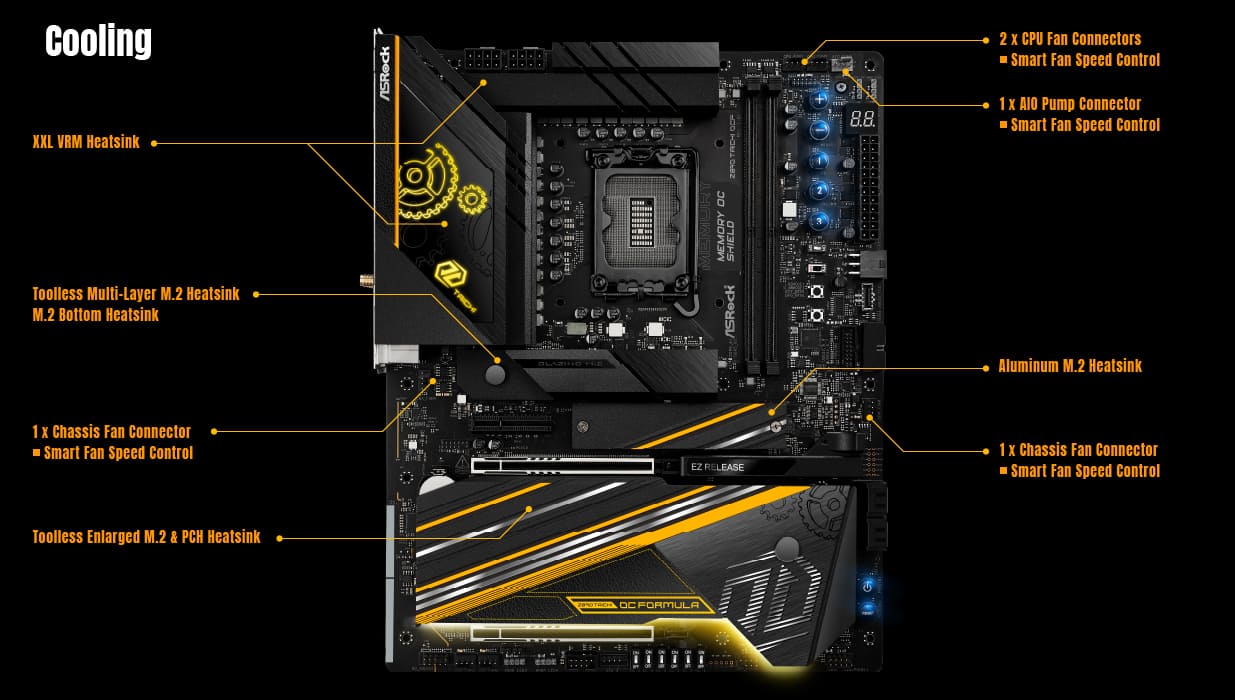

    2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)**
    4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)
    1 x Front Panel Audio Connector (15µ Gold Audio Connector)
    1 x Heater Header
    1 x ElmorLabs OCP Header
    1 x Dr. Debug with LED
    1 x Power Button with LED
    1 x Reset Button with LED
    1 x Retry Button
    1 x Safe Boot Button
    V-Probe: 11-set of onboard voltage measurement points laid

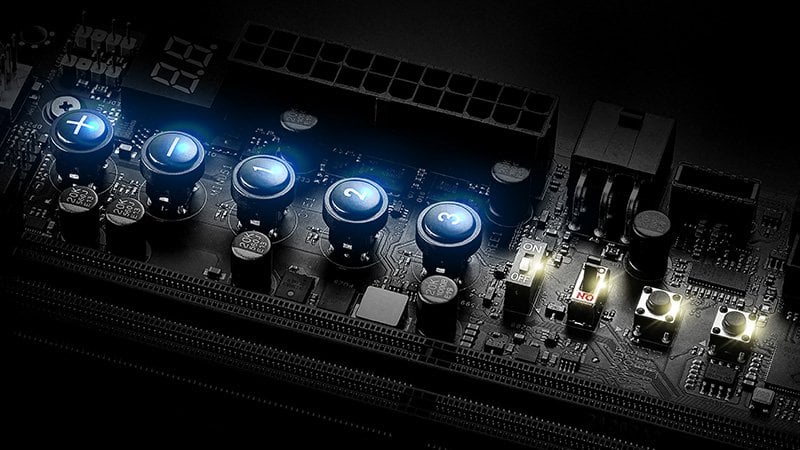

    Rapid OC Buttons: +/buttons to adjust OC frequency
    6 x OC Switches
    1 x Slow Mode Switch
    1 x LN2 Mode Switch
    1 x NickShih's OC Profile 1 Button with LED
    1 x NickShih's OC Profile 2 Button with LED
    1 x NickShih's OC Profile 3 Button with LED
    * Support in total up to 5V/3A, 15W LED Strip
    ** CPU_FAN1 supports the fan power up to 1A (12W).
    ** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
    ** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    BIOS Feature 2 x 256Mb AMI UEFI Legal BIOS with GUI support
    Software Software
    - ASRock Formula Drive
    - ASRock Polychrome SYNC
    * These utilities can be downloaded from ASRock Live Update & APP Shop.
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

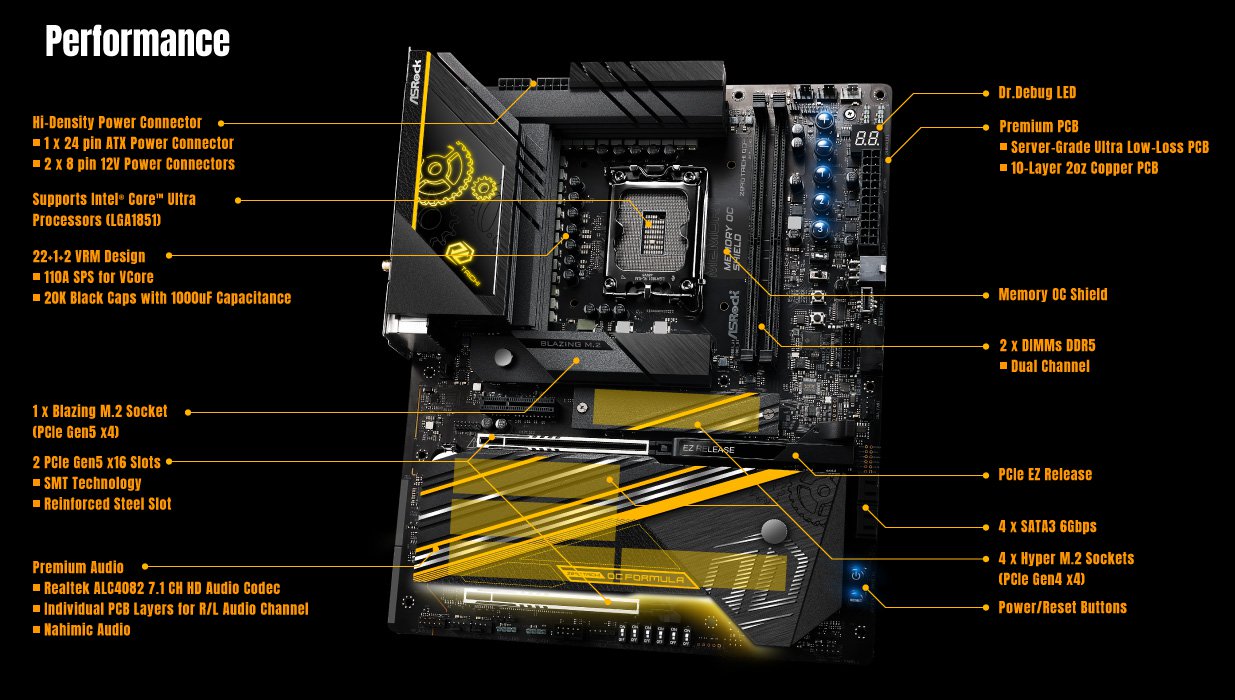

    Features
    Features Superb Productivity

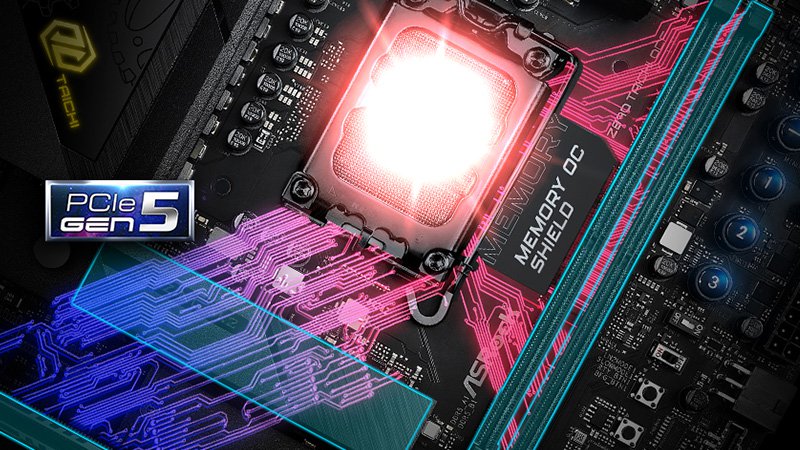

    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    - Thunderbolt 4 Type-C Ports (40 Gb/s)
    - 6 x M.2 Sockets

    Rock-Solid Durability
    - Server-Grade Low-Loss PCB

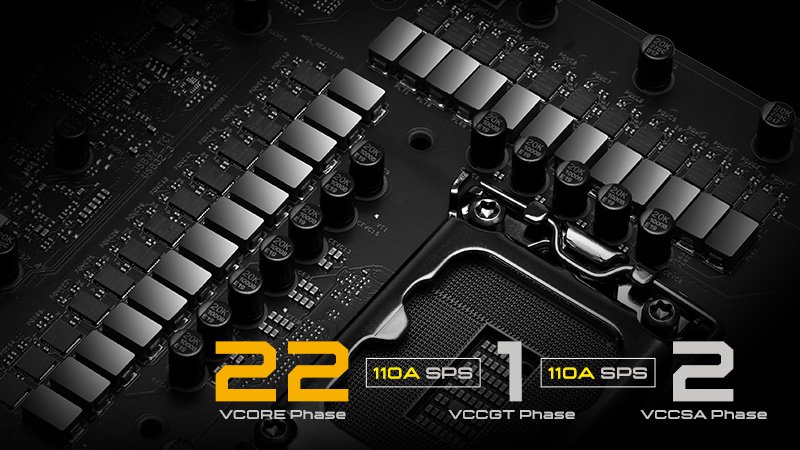

    - 22+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor

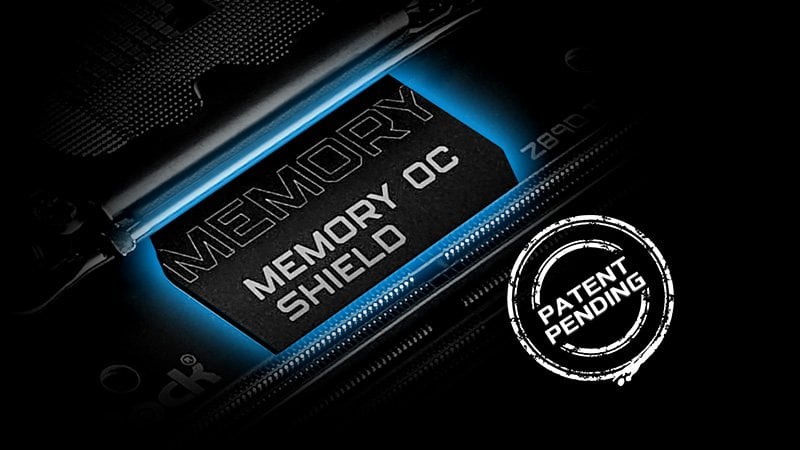

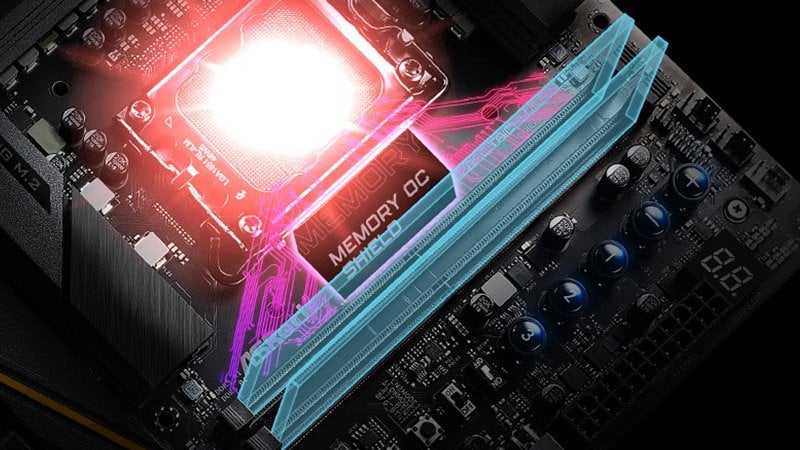

    - Memory OC Shield
    - Flexible Integrated I/O Shield
    - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

    Ultrafast Connectivity
    - 5G LAN, 802.11be Wi-Fi 7 Module

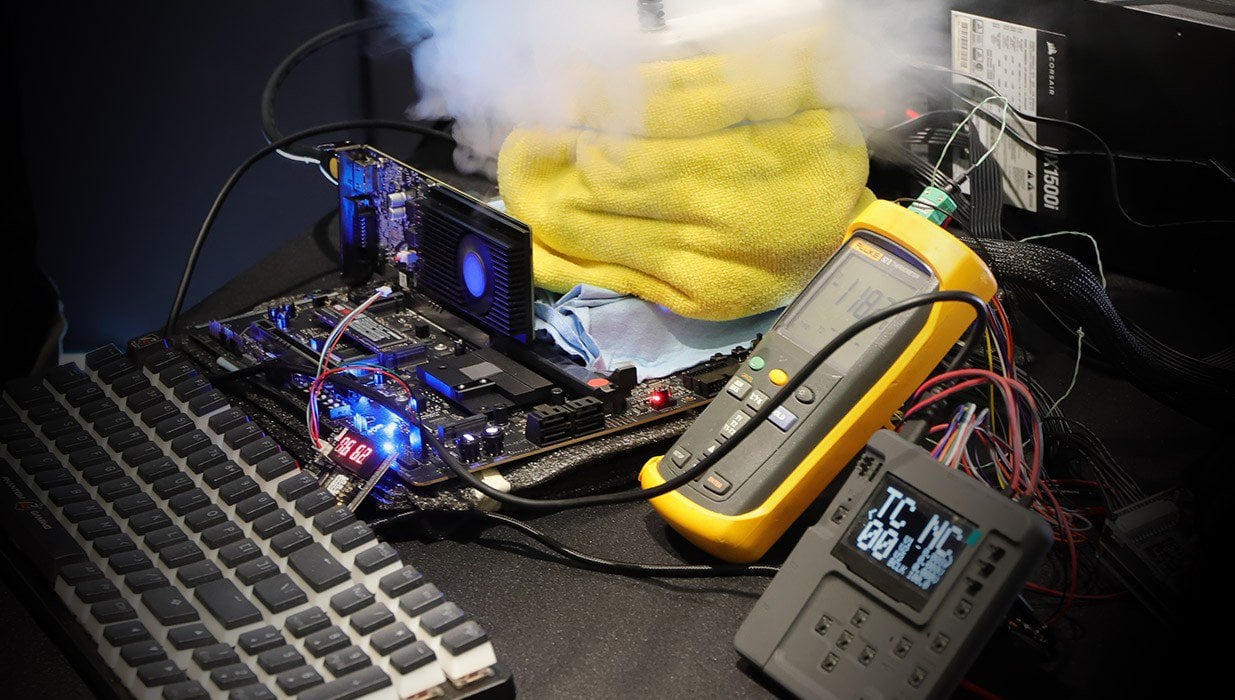

    Professional Overclocking
    - ASRock Hyper BCLK Engine
    - 6 x OC Profiles
    - Heater
    - ElmorLabs OC Panel

    EZ Update

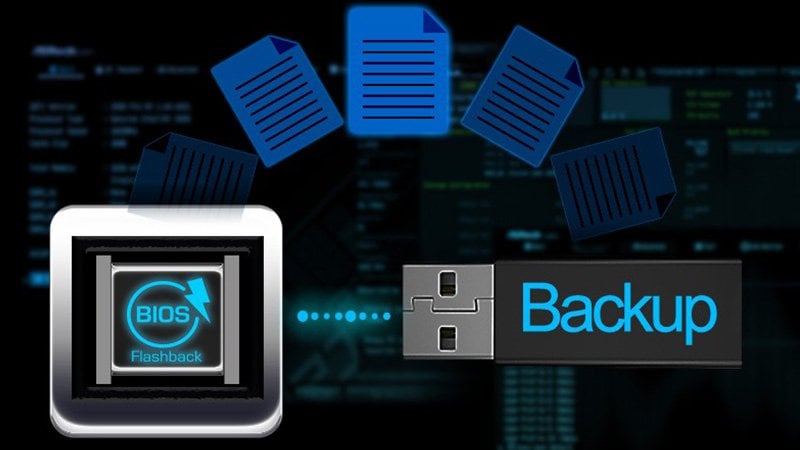

    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    Packaging
    Package Contents 4 x SATA Data Cables
    1 x ASRock WiFi 2.4/5/6 GHz Antenna
    1 x ARGB Splitter Cable
    2 x Thermistor Cables
    1 x Screw for M.2 Socket
    1 x Standoff for M.2 Socket
    Additional Information
    Date First Available November 07, 2024
