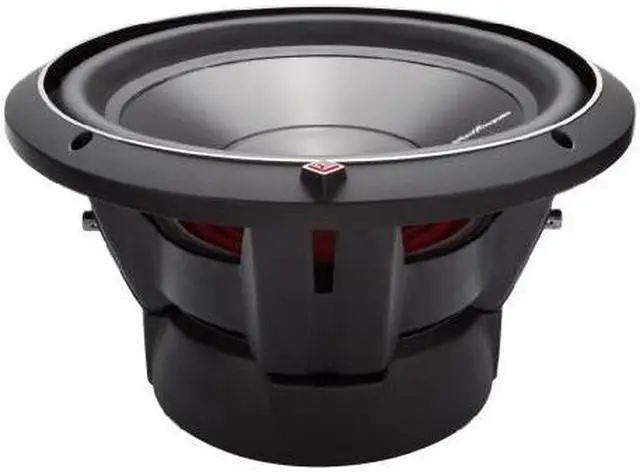

Rockford Fosgate P3D4-12 12" 1200W 4-Ohm Car Subwoofer + 12" Mesh Grille Insert

The Rockford P3D4 12 car audio subwoofer features 1200 Watts of MAX power and 600 Watts of RMS power to give your car's audio system amazing bass at a great price. Its dual voice coil design gives many different wiring options to ensure you get the most from your amplifier.

The Rockford P3D4 12 also features VAST technology to increase cone surface area by up to 25%, a FlexFit basket for extreme installations, an Anodized Aluminum Voice Coil Former that provides superior heat dissipation (up to 100° at full power levels) and a new hybrid stamp cast basket that offers the best of both worlds by providing super strength while minimizing weight and resonance. This Rockford P3D4 12 also offers stitched Tinsel Leads that reduce fatigue and possible shorting while increasing reliability and performance.

The Rockford Fosgate P2P3G 12 grille insert is made from stamped metal and will protect your 12" P2 & P3 subwoofers from the trunk of your car. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re secure the trim ring.



We are an Authorized Rockford Fosgate Dealer!

• 1200 Watts MAX
• 600 Watts RMS
• Anodized aluminum heat sinking cone and dust cap
• High temp voice coil with spun laced Nomex insulating reinforcement collar
• Custom 10 AWG nickel plated push terminals
• Diamond cut cast aluminum trim ring with optional grille (grille insert not included)
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• Protective PVC textured magnet cover
• StampCast basket with integrated spider venting
• Size: 12"
• Voice Coil Diameter: 2.5" (65.5 mm)
• Impedance: Dual 4 Ohm
• SPL: 85 dB
• Magnet Weight: 96 oz. (2.73 kg)
• Fs (Hz): 27.7
• Re (Ohms): 6.40
• Le (mH): 6.94
• Qms: 5.60
• Qes: 0.57
• Qts: 0.
• Vas (Liters): 57.7
• Sd (cm2): 570
• Xmax (mm): 15.9
• Woofer Displacement: 0.194 cu. ft. (5.5 Liters)
• Cutout Diameter: 11.25 in. (285 mm)
• Mounting Depth (6.66 in. (169.3 mm)
• CEA 2031 Compliant
• Quantity: 1 Subwoofer
• Weight: 20.9 lbs (shipping weight)
• Product Condition: BRAND NEW!
• Warranty: 2 Year VMInnovations Warranty
• 12" grille insert for the P2, P3, and P3 Shallow models
• Black finish
• Protects against surround and cone damage.
• Sized to fit Gen 3 P2 & P3 woofers.
• Stamped mesh grille insert.
• Inserts snugly into Gen 3 P2 & P3 trim rings.
• Condition: Brand New
• Item Weight: 1.3 lbs
• 1 Year Manufacturer Warranty
