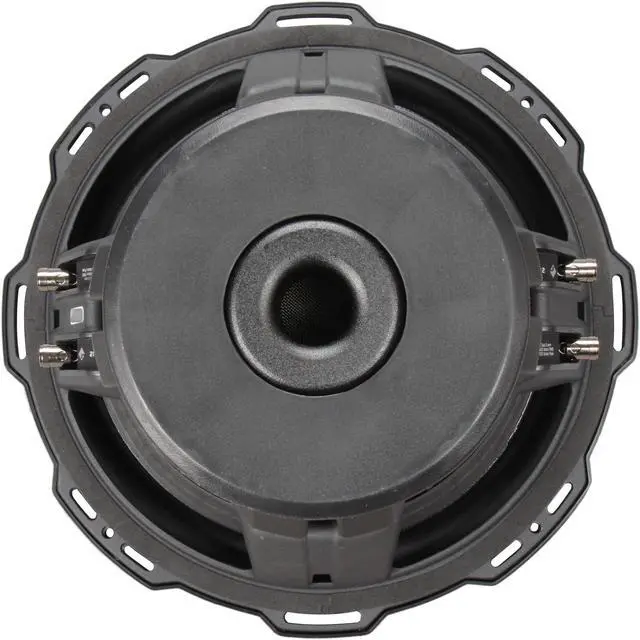

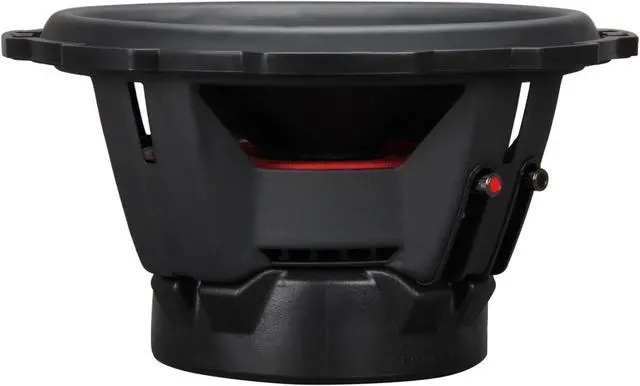

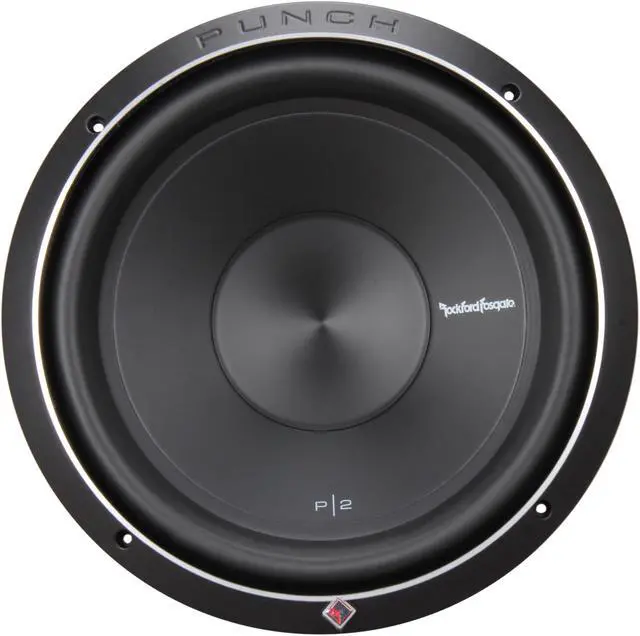

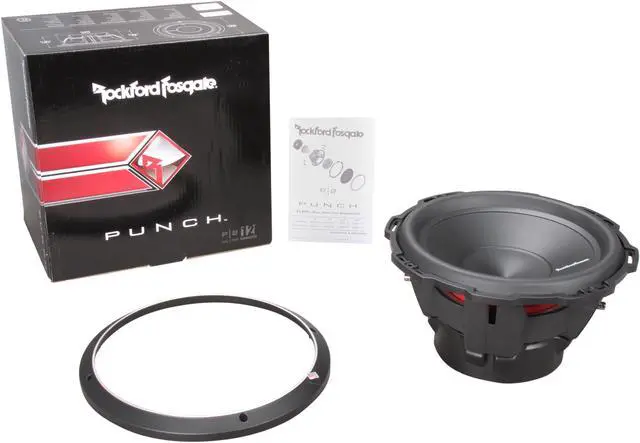

Rockford Fosgate P2D2-12 12" 800W Car Subwoofer

The **Rockford Fosgate P2D2 12** 12" 800 Watt 2 Ohm Punch Series Car Audio Subwoofer will provide "The Punch" you desire. This sub features Kevlar fiber reinforced paper cones that will deliver superior bass impact; VAST technology that increases the cone surface area up to 25%; an Anodized Voice Coil Former that provides superior heat dissipation (up to 100° at full power levels); A Flex Fit Basket that allows fine tuning of the mounting position; Stitched Tinsel Leads that reduces fatigue and possible shorting and increasing reliability and performance. The P2D2 12 sub performs best in standard sealed and vented enclosures, and conforms to CEA 2031 industry standards to offer the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils. If you are looking for thumping bass, look no further than the Rockford Fosgate P2D2 12 12" 800 Watt 2 Ohm Punch Series Subwoofer!

**We are an authorized Rockford Fosgate dealer**

View the Owners Manual [here][1]
View the Specifications [here][2]


[1]: //www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/4020118 0_P2Subs MAN_Rev2.pdf
[2]: //www.rockfordfosgate.com/rftech/library/2011/5_Subwoofers/RFPB_P2D2 12 TS_RevD.pdf

@[video](QVG9ngKIe 0)

• NEW **Rockford Fosgate P2D2 12** 12" 800 Watt 2 Ohm Punch Series Car Audio Subwoofer
• **Power Handling:**
• 800 Watts MAX
• 400 Watts RMS
• Kevlar fiber reinforced paper cone
• Stitched Tinsel Leads
• Anodized Aluminum Voice Coil Former
• Flex Fit Basket
• VAST Surround
• Dual linear spider with embedded 16 AWG tinsel leads
• Custom 10 AWG nickel plated push terminals
• StampCast basket with integrated spider venting
• Protective PVC textured magnet cover
• High temp voice coil with spun laced Nomex® re inforcement collar
• Extended pole piece and bumped vented backplate
• Diamond cut cast aluminum trim ring with optional grille (grille insert not included)
• CEA 2031 Compliant
• **Specifications:**
• Size: 12"
• Nominal Impedance: Dual 2 Ohm
• Voice Coil Diameter: 2.25" (57.7 mm)
• Magnet Weight: 78.8 oz. (1.88 kg.)
• Speaker Connector: Dual 10 AWG compression
• Fs (Hz): 26
• Re (Ohms): 3.30
• Le (mH): 3.7
• Qms: 6.50
• Qes: 0.56
• Qts: 0.52
• Vas (Liters): 81.5
• Sd (cm2): 570
• SPL (dB @ 1w/1m): 86
• Xmax (mm): 13.3
• Subwoofer Displacement: 0.170 Cu. Ft. (4.8 Liters)
• Cutout Diameter: 11.22 Inches (285 mm)
• Mounting Depth: 6.40 Inches (162.6 mm)
• **grille insert not included**
• Quantity: 1 Subwoofer
• Weight: 15.6 lbs (shipping)
• Condition: BRAND NEW!
• Part Number: **P2D2 12**
• 1 Year Manufacturer Warranty
