Server Components
Rosewill's line of server components help you build or improve your own dedicated server.
RSV-Z2600U 2U Server Chassis
Spacious Chassis Design
The 2U rackmount server case is designed to allow you to install up to (4) 3.5" HDDs.
Quiet and Effective Case Fans
The server chassis comes equipped with (3) front 80mm cooling fans pre-installed.

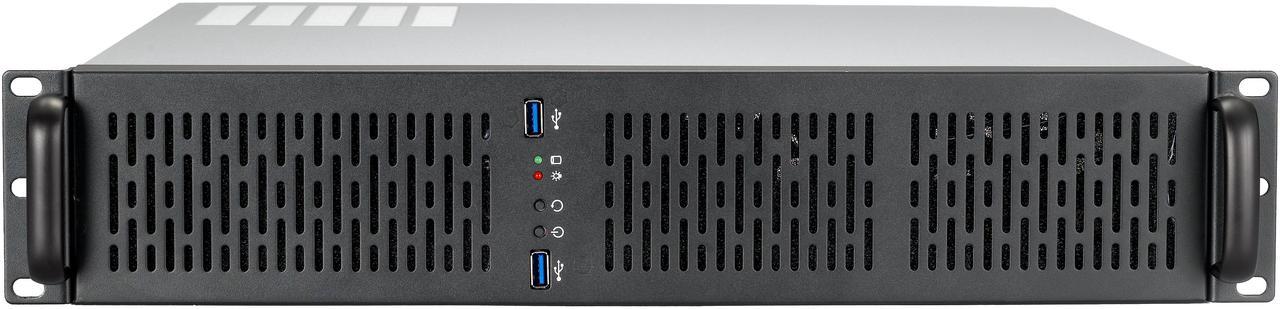

Intuitive Front Panel
Server case features LED indicators for easy Power and HDD status monitoring as well as (2) USB 3.0 ports.
Highlights:
- Can carry up to 4 HDDS
- 3 pre-installed cooling fans
- Micro-ATX compatibility
- 4 expansion slots
- LED status indicators for HDD and Power
- USB 3.0 ports

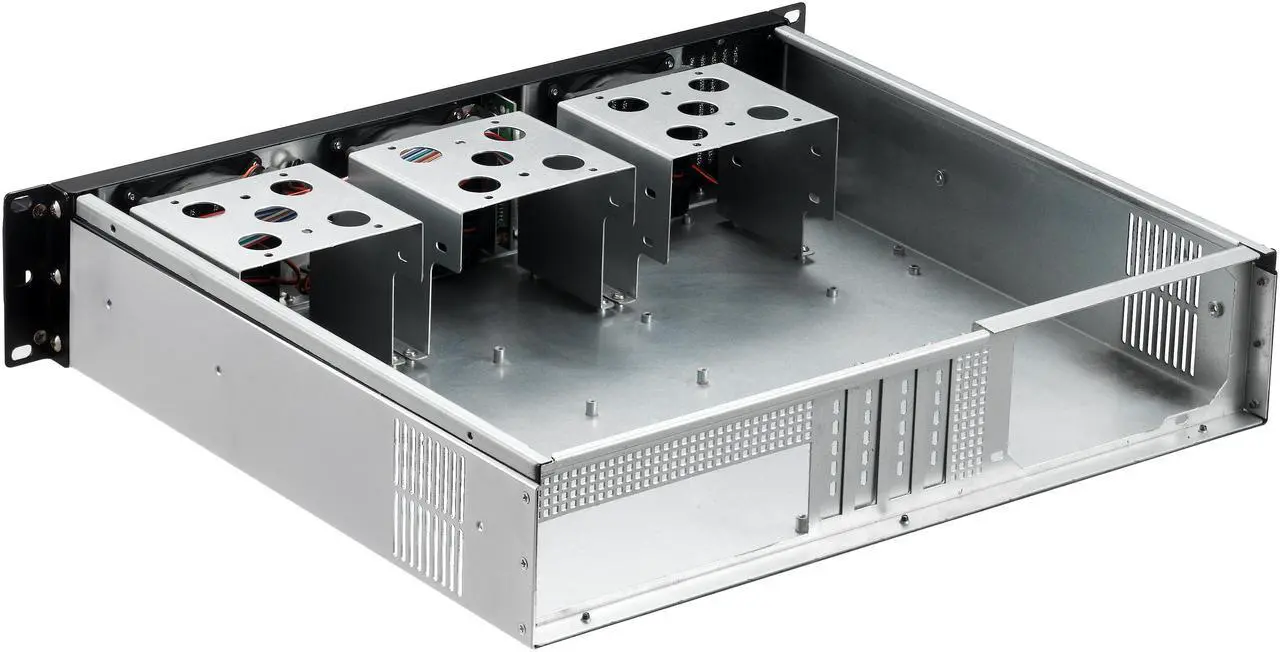

Large Capacity
The spacious design allows you to install up to (4) 3.5" HDDs, Micro-ATX motherboard, (3) pre-installed cooling fans, and a PS2 power supply.
Superior Cooling
3 total pre-installed case fans keep your server chassis and hard drives cool to avoid overheating.

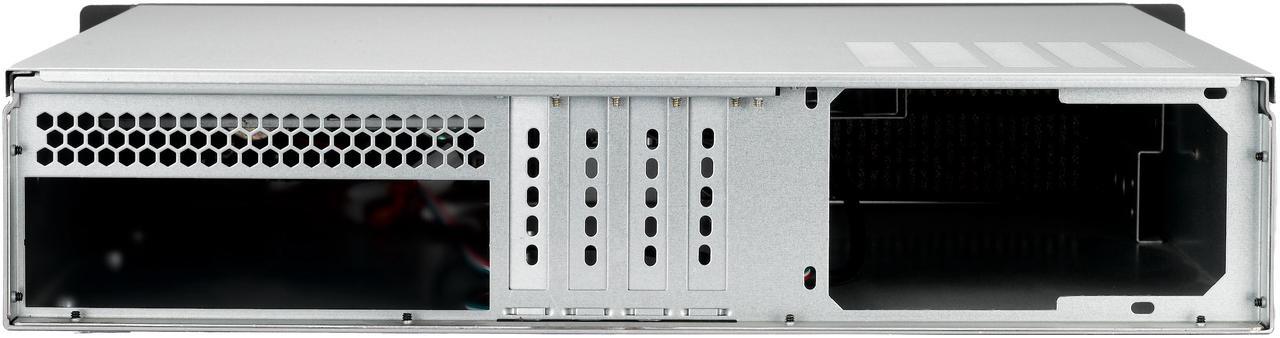

PCI Expansion Slots
Expand your server case's functionality by installing up to 4 PCI expansion cards.
LED Indicators
Easily monitor status of Power, LAN, and HDD.
RSV-Z2600U |
RSV-Z2700U |
RSV-Z2800U |
RSV-Z2850U |
RSV-Z2900U |
|
U-Type | 2U | 2U | 2U | 2U | 2U |
---|---|---|---|---|---|
2.5" Drive Bays | 0 | 0 | 2 | 2 | 2 |
3.5" Drive Bays | 4 | 4 | 4 (6) | 4 (6) | 4 (6) |
5.25" Drive Bays | 0 | 1 | 0 | 0 | 0 |
80mm Fans | 3 | 2 | 3 (2 pre-installed) | 4 (2 pre-installed) | 3 |
120mm Fans | 0 | 0 | 0 | 0 | 0 |
Expansion Slots | 4 | 4 | 4 | 7 | 7 |
USB 3.0 | 2 | 2 | 2 | 2 | 2 |
Width x Height x Depth (Chassis) | 16.9” x 3.5" x 15.0" | 16.9” x 3.5" x 15.0" | 16.9” x 3.5” x 17.7” | 16.9” x 3.5” x 21.7” | 16.9” x 3.5” x 25.6” |
Width x Height x Depth (Chassis + Bracket + Handle) | 19.0” x 3.5” x 15.9” | 19.0” x 3.5” x 16.5” | 16.9” x 3.5” x 18.9” | 16.9” x 3.5” x 22.6” | 16.9” x 3.5” x 26.6” |
Weight (lbs) | 10.6 | 11.5 | 11.6 | 14.6 | 16.8 |
