MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
FULL MODULAR - Use only the cables you need to reduce clutter and improve airflow for a better ventilated system.
80 PLUS GOLD - Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
12 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
+
+
Overview
Specs
Reviews (680)
Unboxing Video

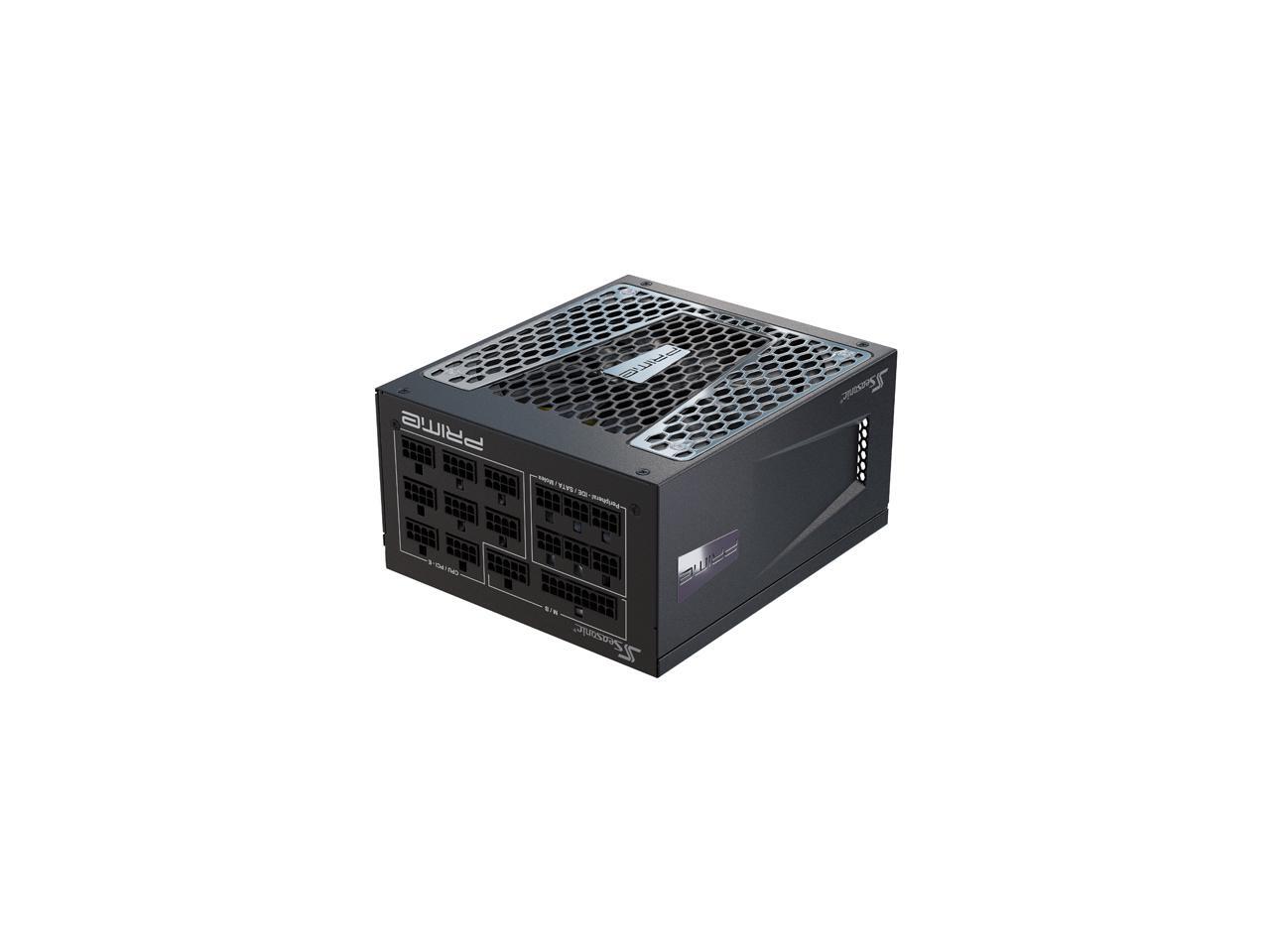

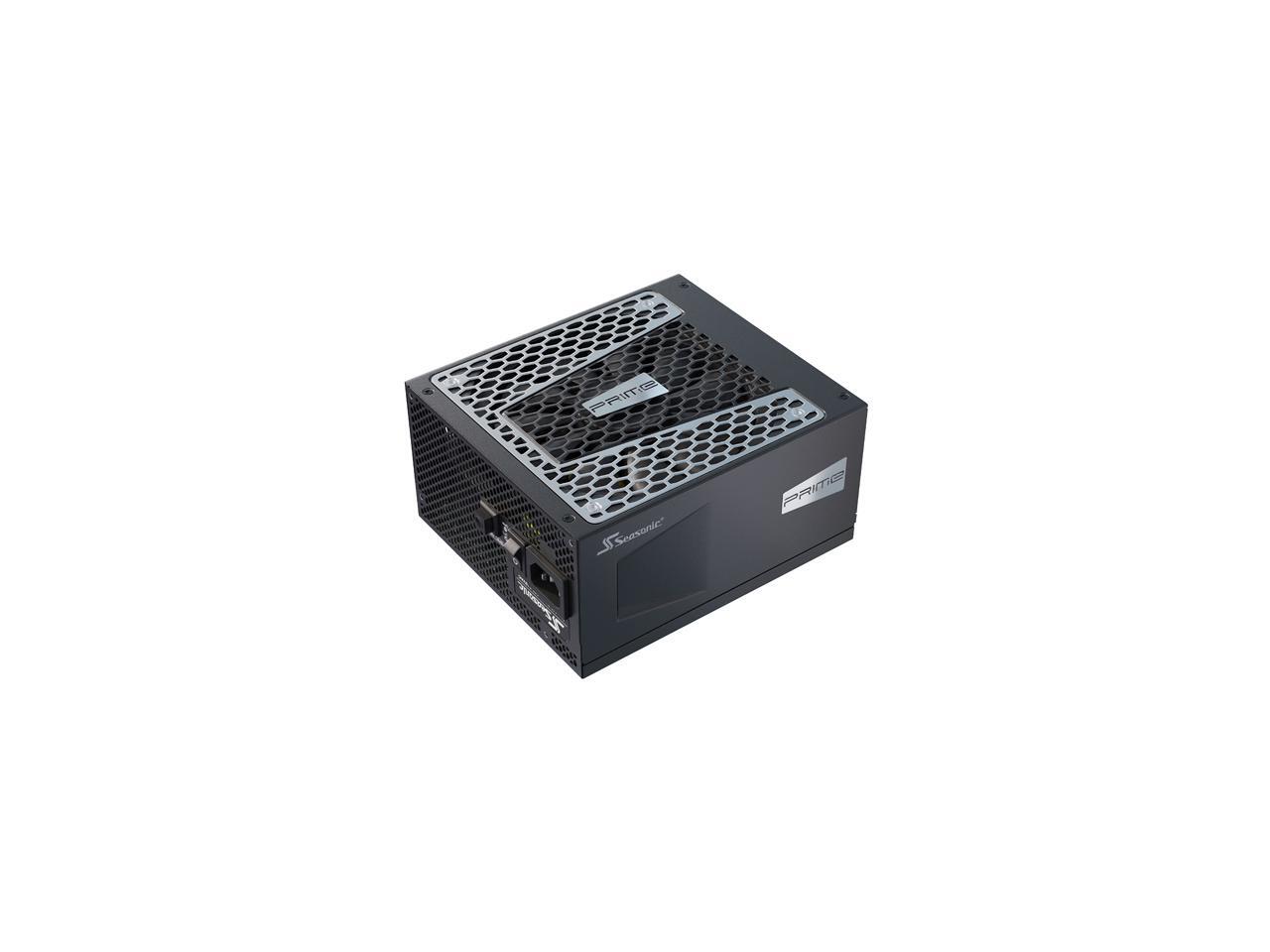

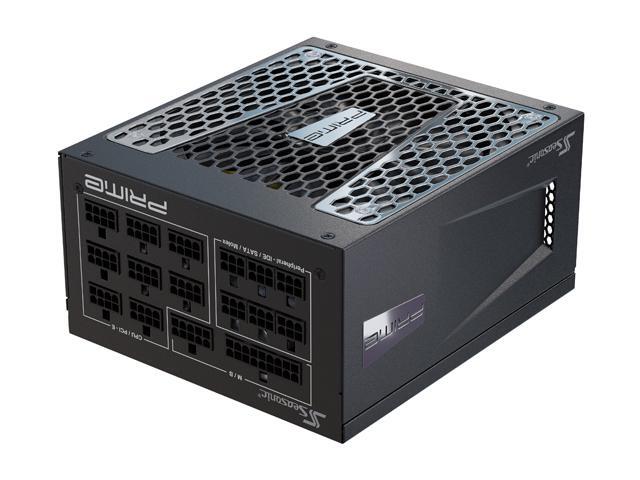

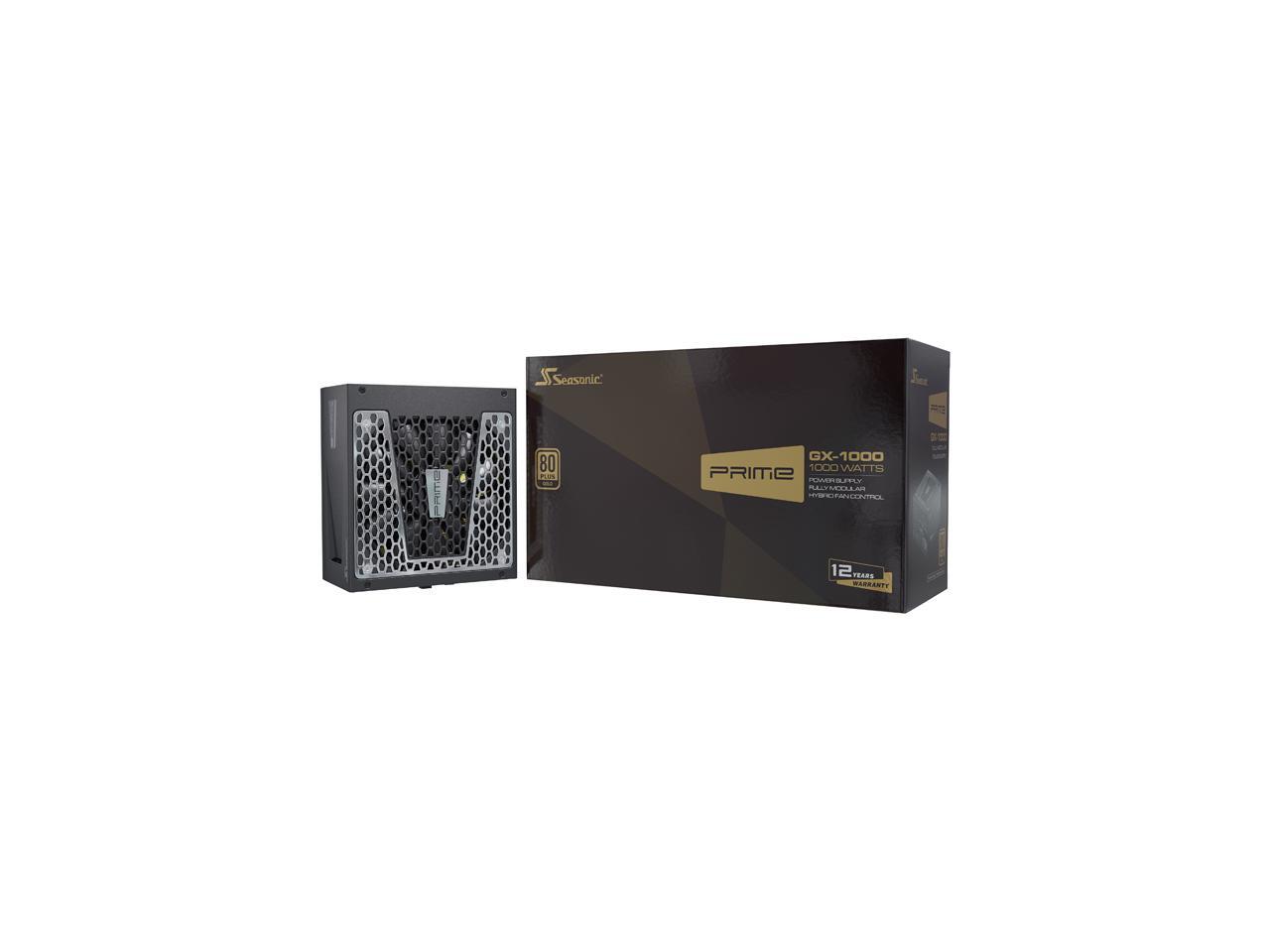

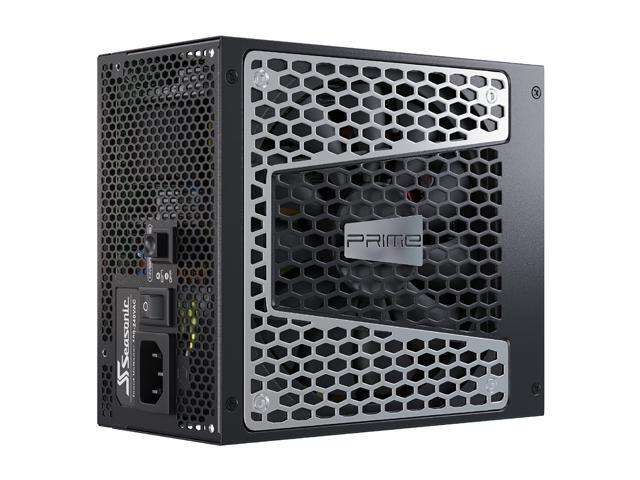

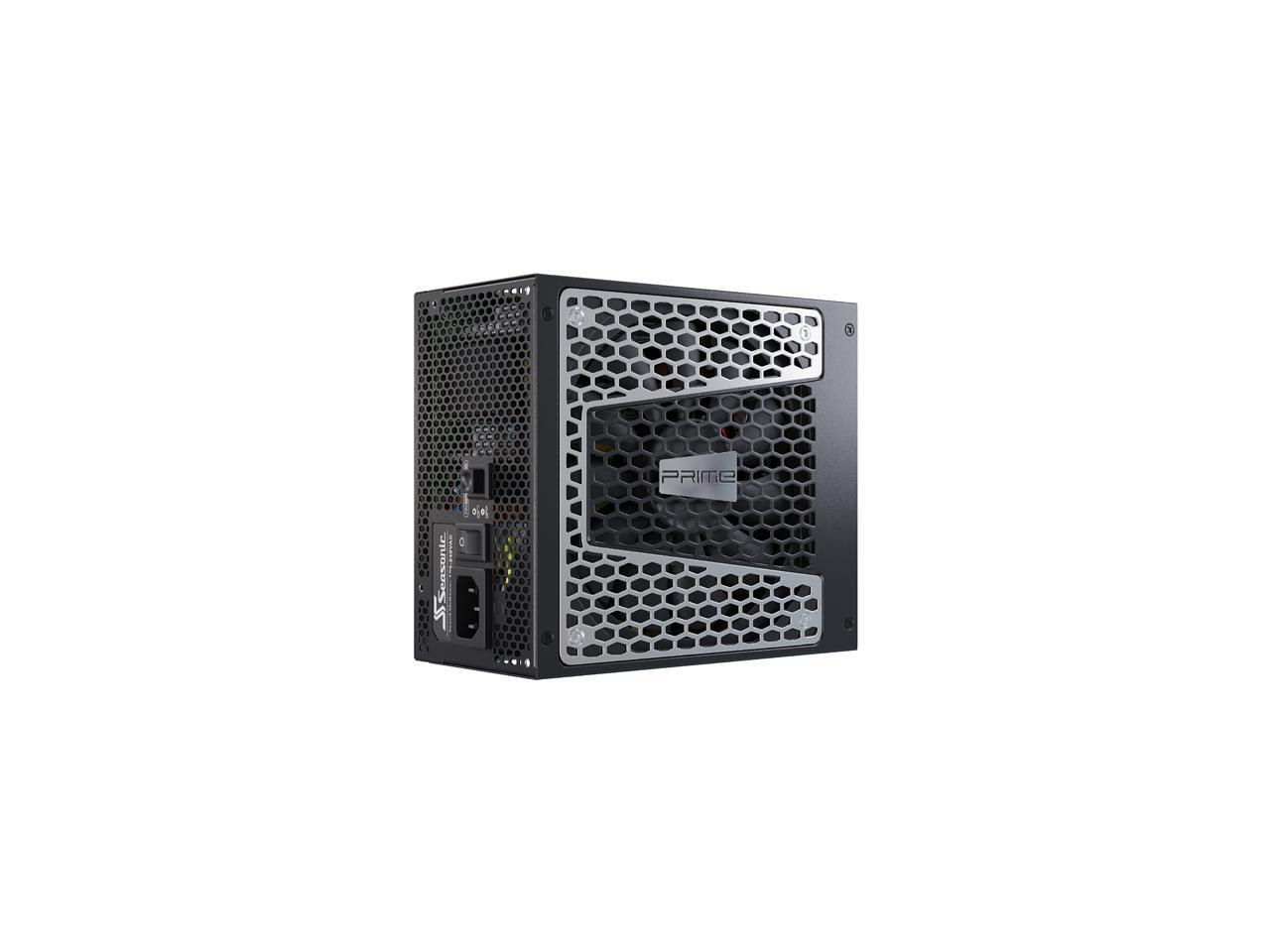

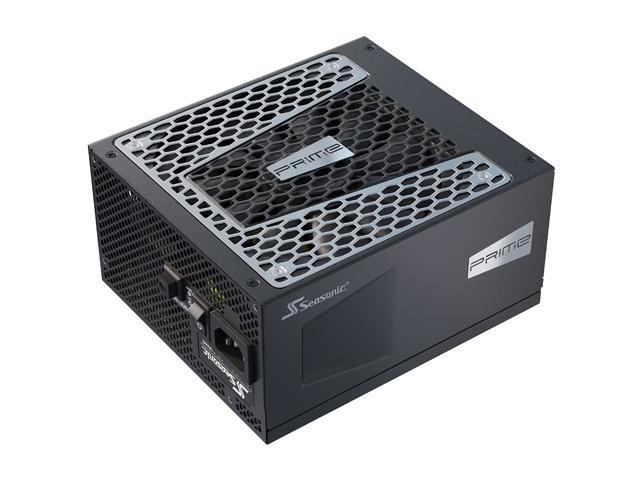

Learn more about the SeaSonic USA PRIME GX-1000 (SSR-1000GD)
General
Brand
SeaSonic
Series
PRIME Ultra Gold
Model
PRIME GX-1000 (SSR-1000GD)
Details
Type
ATX12V / EPS12V
Maximum Power
1000 W
Fans
135mm Fluid Dynamic Bearing Fan w/ Hybrid Fan Control
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
8 x 6+2-Pin
SATA Power Connector
12
Max PSU Length
170 mm
Modular
Full Modular
Efficiency
91.37% (Avg.)
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
13 - 6.5 A

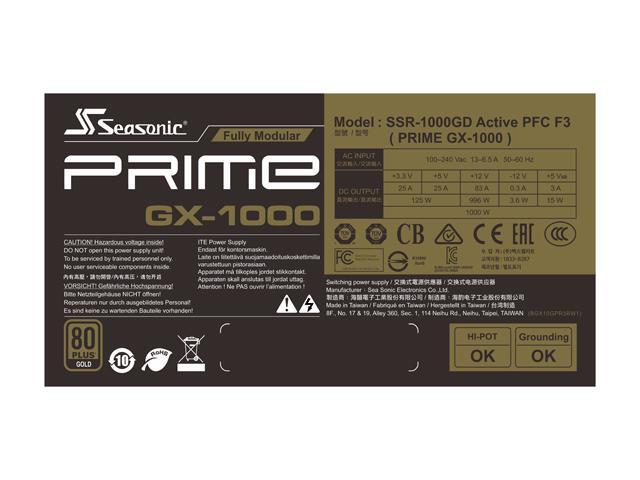

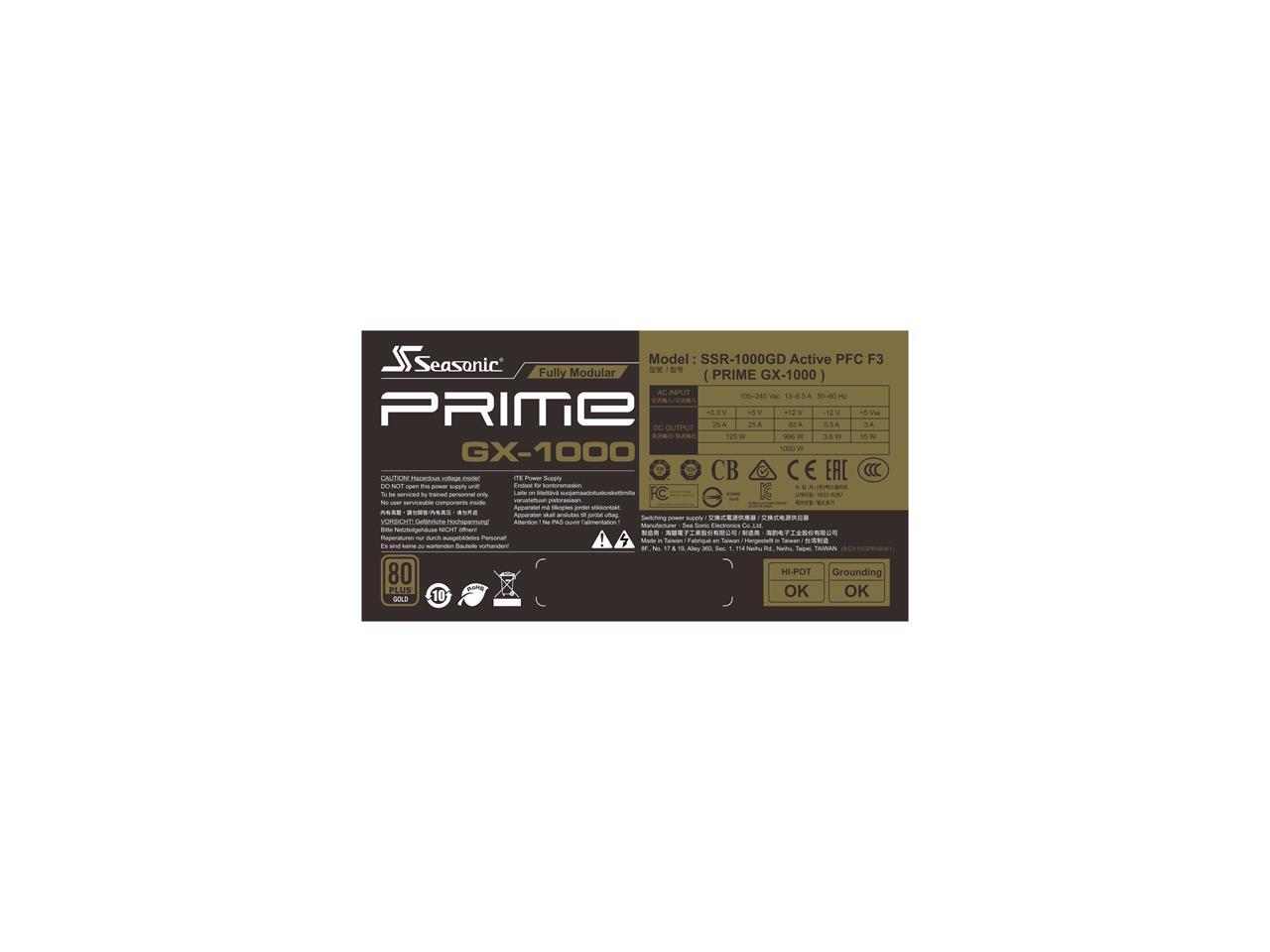

Output
+3.3V@25A, +5V@25A, +12V@83A, -12V@0.3A, +5VSB@3A
MTBF
150,000 hours MTBF @ 25 degree C, excl. fan
Approvals
cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH

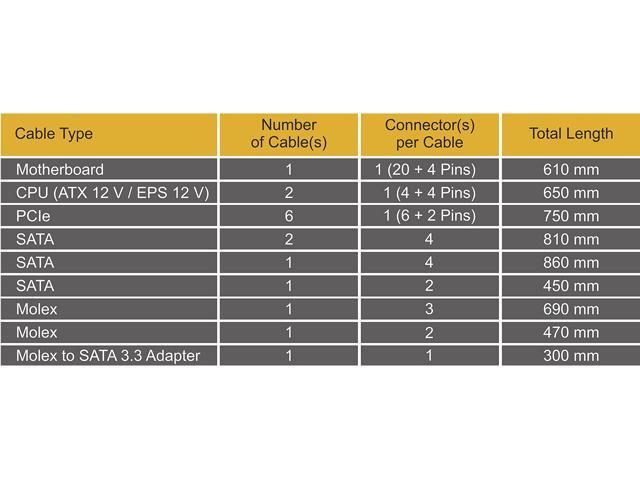

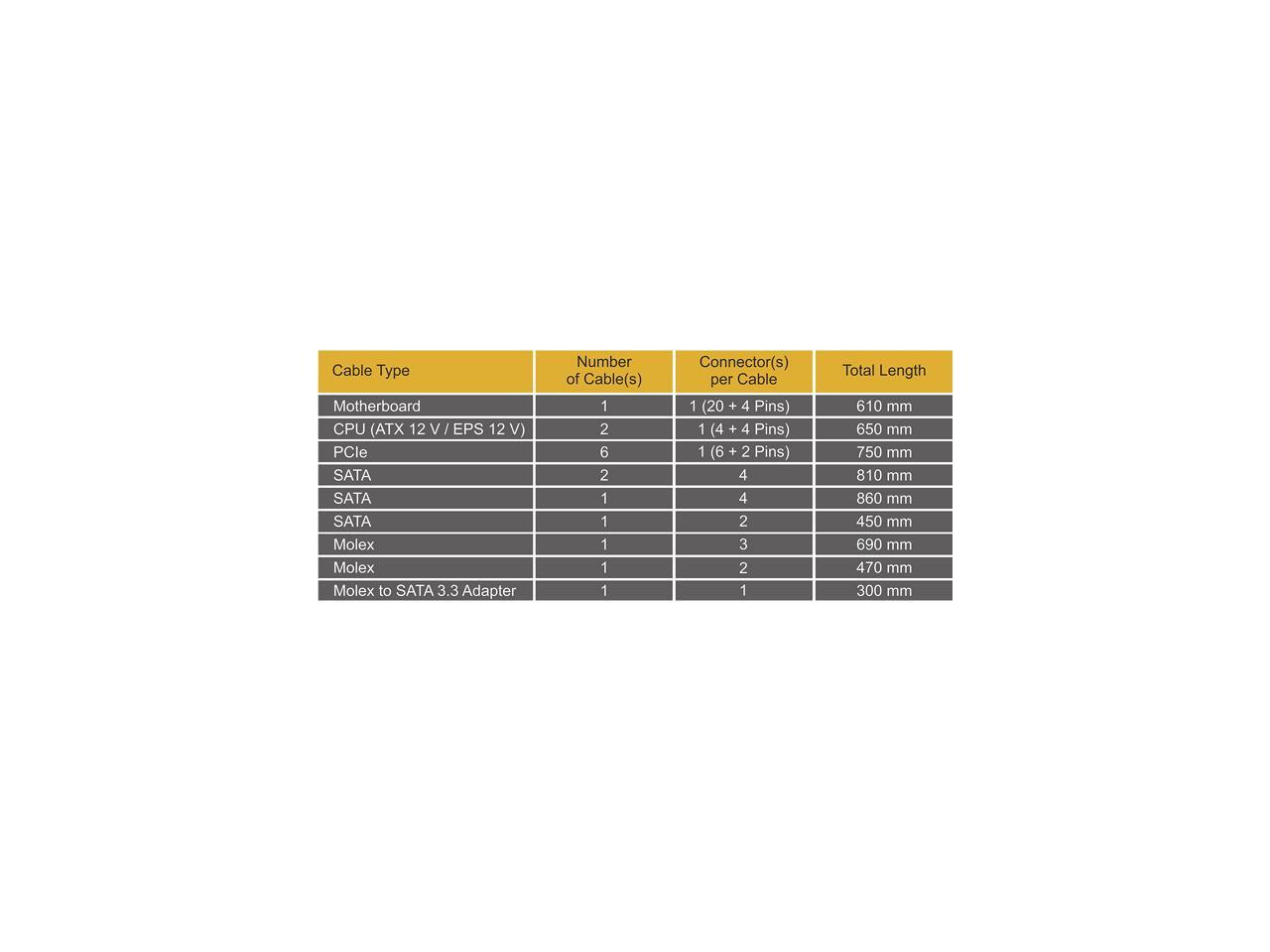

Connectors
PCIe connecotors x 6,SATA x 14
Features
Features
High Efficiency, 80 PLUS Gold Certified
Fully Modular
Top-Quality 135 mm Fluid Dynamic Bearing Fan
Premium Hybrid Fan Control
Micro Tolerance Load Regulation (MTLR) [0.5 %]
Super Low Ripple Noise [under 20 mV]
Cable-free Connection Design
Gold Plated High Current Terminal (MB, CPU and PCIe)
Multi-GPU Technology Support
Dimension & Weight
Dimensions
3.39" x 5.91" x 6.69"
Weight
9.00 lbs.
Additional Information
Date First Available
September 05, 2024
