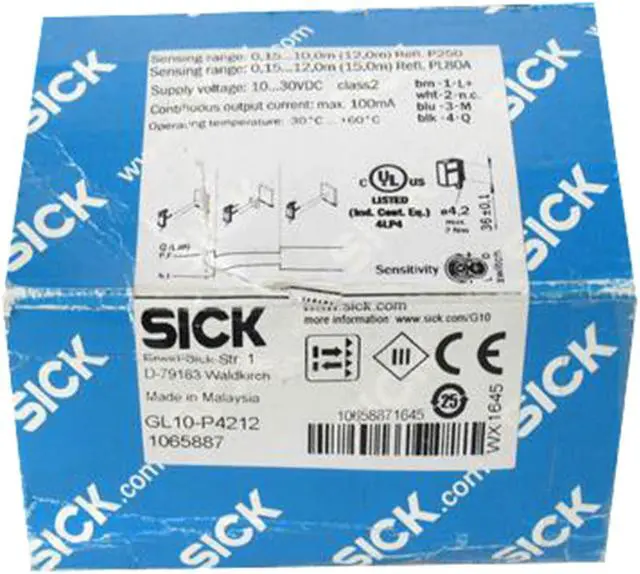

SICK GL10-P4212 Small photoelectric sensors PNP,New
- SICK GL10-P4212 Small photoelectric sensors PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 0.08 m... 15 m 1) 0.08 m... 12 m 2) Sensing range 0.15 m... 12 m 1) 0.15 m... 10 m 2) Type of light Visible red light Light source PinPoint LED 3) Light spot size (distance) Ø 58 mm (5 m) Wave length 625 nm Adjustment Potentiometer, 270° MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 5 Vpp 2) Power consumption 20 mA Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark selector Output current Imax.
= 100 mA Response time = 500 µs 3) Switching frequency 1, 000 Hz 4) Connection type Male connector M12, 4-pin Circuit protection A 5) B 6) C 7) D 8) Protection class III Weight 35 g Polarisation filter? Housing material Plastic, ABS/PMMA Enclosure rating IP67 Items supplied Mounting bracket BEF-G10DC01, Reflector P250 EMC EN 60947-5-2 Ambient operating temperature –30 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E348498 & NRKH7. E348498 More standards UL325 9)
= 100 mA Response time = 500 µs 3) Switching frequency 1, 000 Hz 4) Connection type Male connector M12, 4-pin Circuit protection A 5) B 6) C 7) D 8) Protection class III Weight 35 g Polarisation filter? Housing material Plastic, ABS/PMMA Enclosure rating IP67 Items supplied Mounting bracket BEF-G10DC01, Reflector P250 EMC EN 60947-5-2 Ambient operating temperature –30 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E348498 & NRKH7. E348498 More standards UL325 9)
