FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor

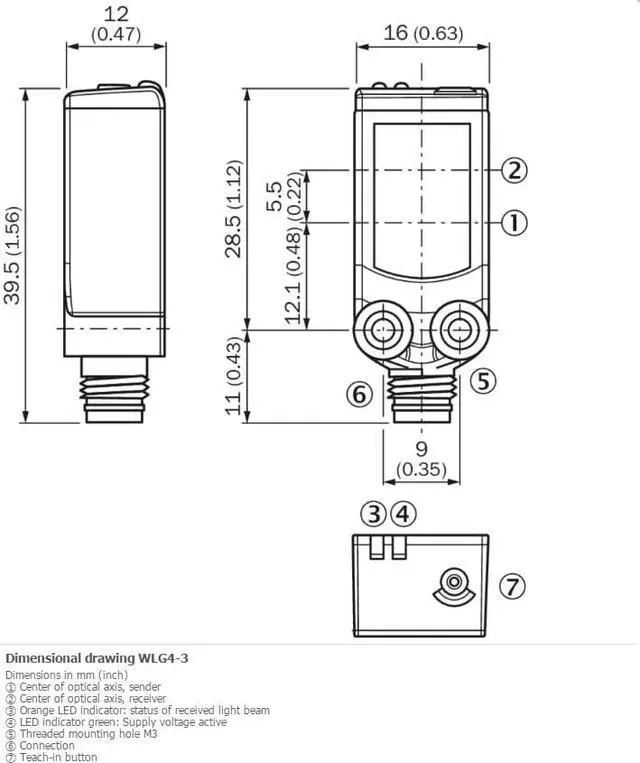

Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm
Housing design (light emission) Rectangular
Sensing range max 0.01 m ... 4.5 m
Sensing range 0.02 m ... 3.5 m
Type of light Visible red light
Light source PinPoint LED
Light spot size (distance) 75 mm (1.5 m)
Wave length 650 nm
Adjustment Single teach-in button
Special applications Detecting transparent objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple < 5 Vpp
Power consumption 20 mA
Switching output PNP
Switching mode Dark switching
Output current Imax. = 100 mA
Response time < 0.5 ms
Switching frequency 1,000 Hz
Angle of reception Approx. 30°
Connection type Connector M8, 3-pin
Weight 30 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP66
Special feature Detecting transparent objects
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
