$205.91
Ships from China.
Fees for brokerage and duty included in price.
Meet Your Seller

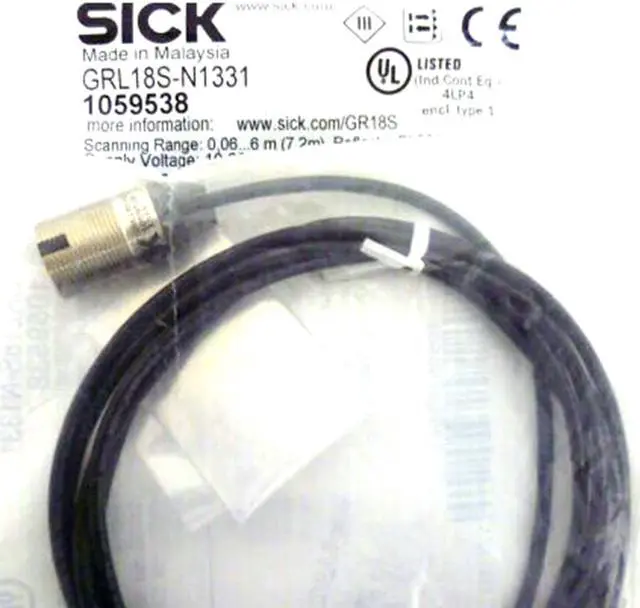

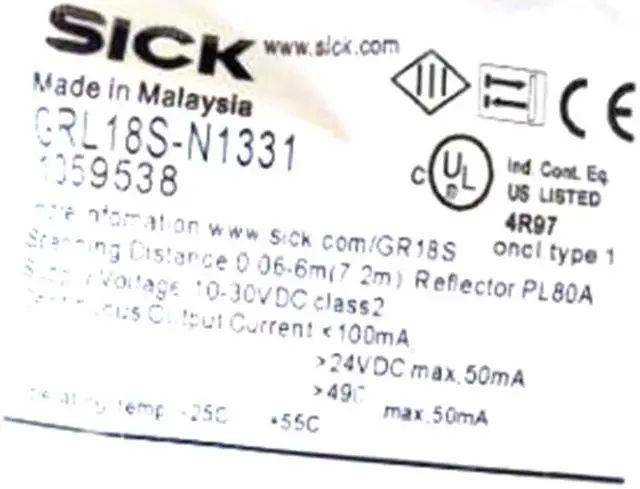

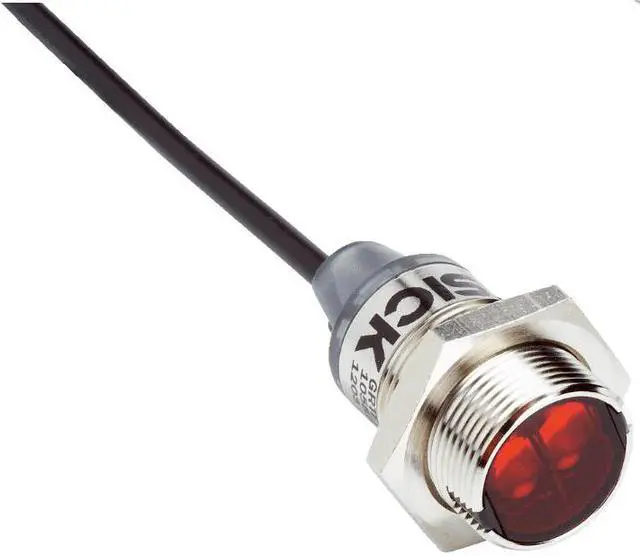

SICK GRL18S-N1331 Cylindrical photoelectric sensors ,NPN New
- SICK GRL18S-N1331 Cylindrical photoelectric sensors ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

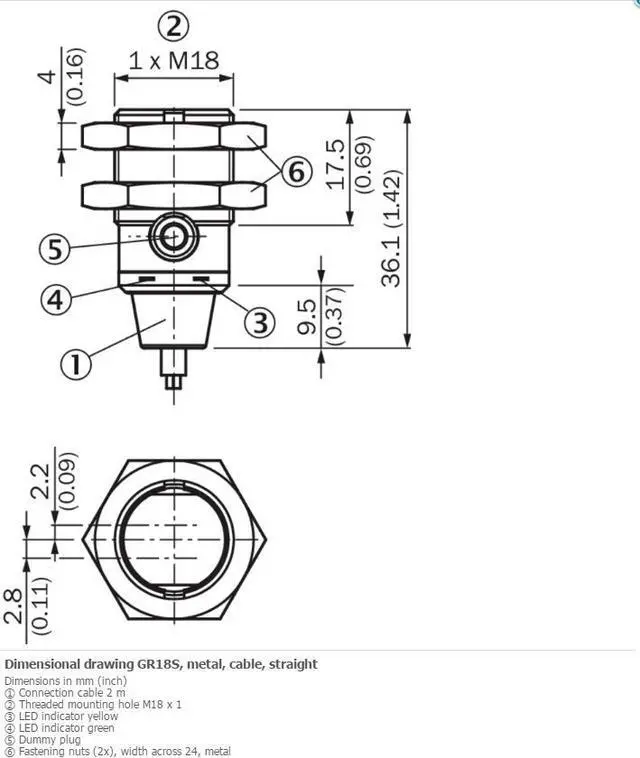

Housing design (light emission) Cylindrical
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.03 m ... 7.2 m 1)
Sensing range 0.06 m ... 6 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 175 mm (7 m)
Wave length 650 nm
Adjustment None
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 30 mA
Switching output NPN
Switching mode Light switching
Signal voltage NPN HIGH/LOW Approx. VS / = 3 V
Output current Imax. 100 mA 3)
Response time < 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Protection class III
Polarisation filter ?
Housing material Metal, Nickel-plated brass and ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (2 x)
EMC EN 60947-5-2
Ambient operating temperature –25 °C ... +55 °C 10)
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Housing design (light emission) Cylindrical
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.03 m ... 7.2 m 1)
Sensing range 0.06 m ... 6 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 175 mm (7 m)
Wave length 650 nm
Adjustment None
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 30 mA
Switching output NPN
Switching mode Light switching
Signal voltage NPN HIGH/LOW Approx. VS / = 3 V
Output current Imax. 100 mA 3)
Response time < 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Protection class III
Polarisation filter ?
Housing material Metal, Nickel-plated brass and ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (2 x)
EMC EN 60947-5-2
Ambient operating temperature –25 °C ... +55 °C 10)
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
