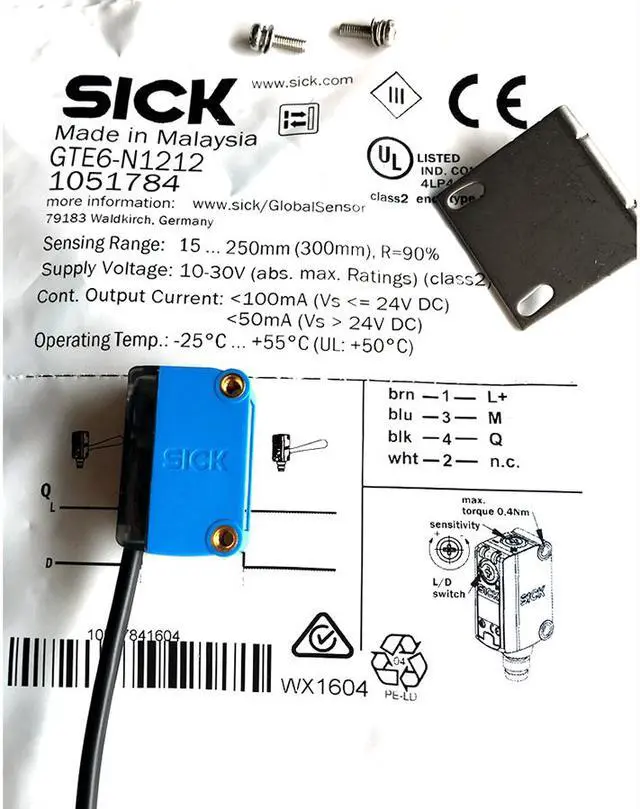

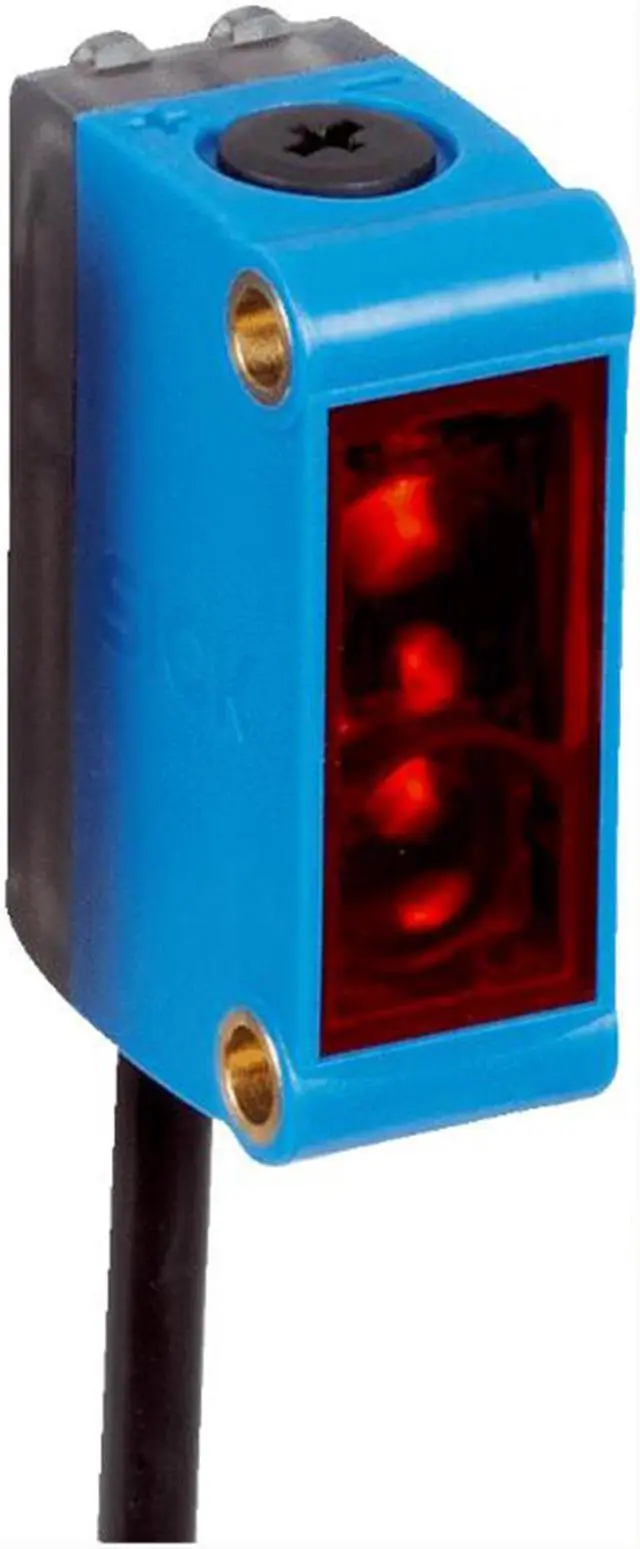

SICK GTE6-N1212 Miniature photoelectric sensors ,NPN ,PNP,New

FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic

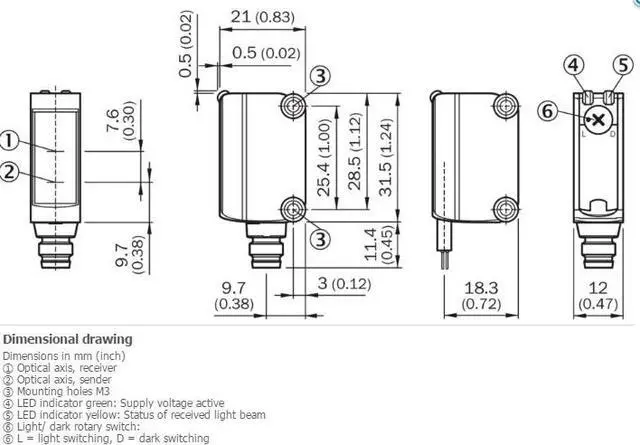

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Housing design (light emission) Rectangular
Sensing range max. = 300 mm 1)
Sensing range = 250 mm
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 7 mm (90 mm)
Wave length 650 nm
Adjustment Mechanical spindle, 5 turns

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Signal voltage NPN HIGH/LOW Approx. VS / = 3 V
Output current Imax. = 100 mA 4)
Response time < 1,250 ms 5)
Switching frequency 500 Hz 6)

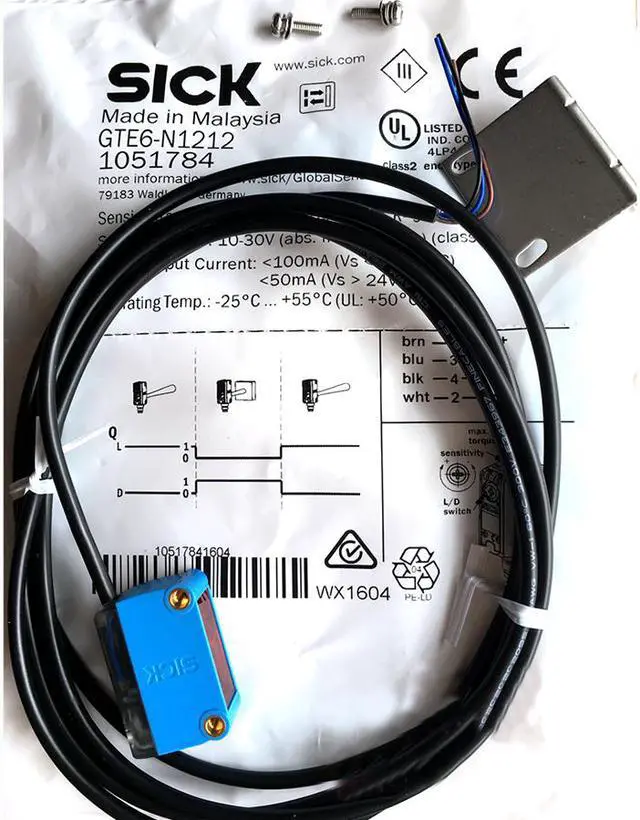

Connection type Cable, 3-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 60 g
Housing material Plastic, ABS/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature –25 °C ... +55 °C 11)
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
