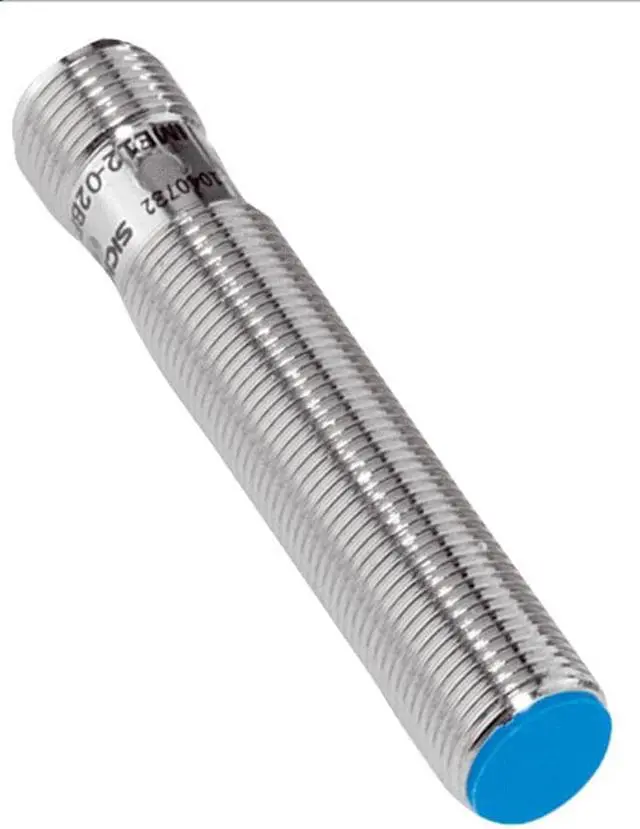

SICK IME12-06BPSZC0S Inductive proximity sensors ,PNP,New
- SICK IME12-06BPSZC0S Inductive proximity sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Housing Cylindrical thread design
Housing Standard
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 6 mm
Safe sensing range Sa 4.86 mm
Installation type Quasi-flush
Switching frequency 800 Hz

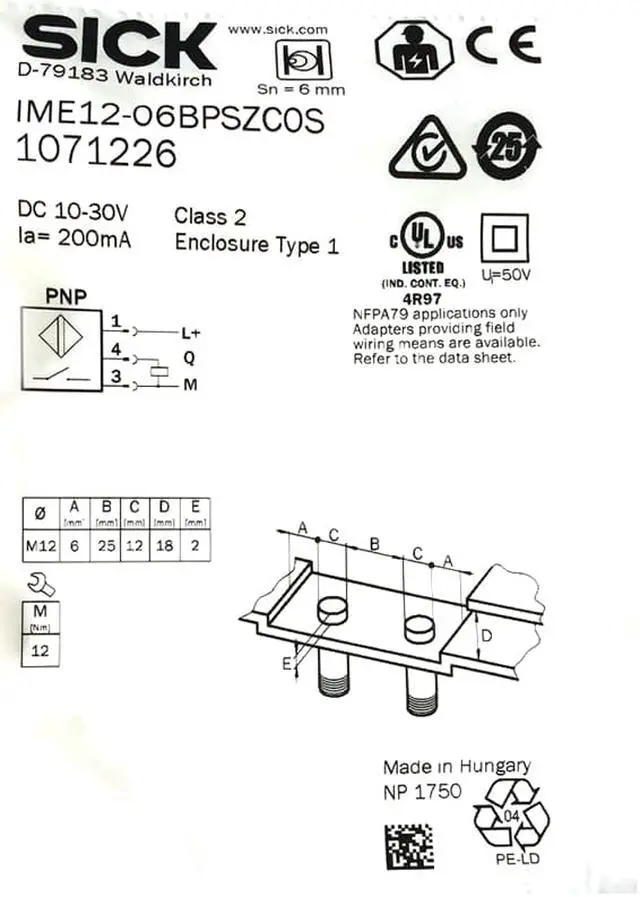

Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Special features Triple sensing range
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 10 mA 2)
Time delay before availability = 50 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Current consumption, no load = 10 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Ambient storage temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, PA 66
Housing length 65 mm
Thread length 48 mm
Tightening torque, max. = 12 Nm
UL File No. NRKH.E181493E300503
Housing Cylindrical thread design
Housing Standard
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 6 mm
Safe sensing range Sa 4.86 mm
Installation type Quasi-flush
Switching frequency 800 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Special features Triple sensing range
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 10 mA 2)
Time delay before availability = 50 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Current consumption, no load = 10 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Ambient storage temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, PA 66
Housing length 65 mm
Thread length 48 mm
Tightening torque, max. = 12 Nm
UL File No. NRKH.E181493E300503
