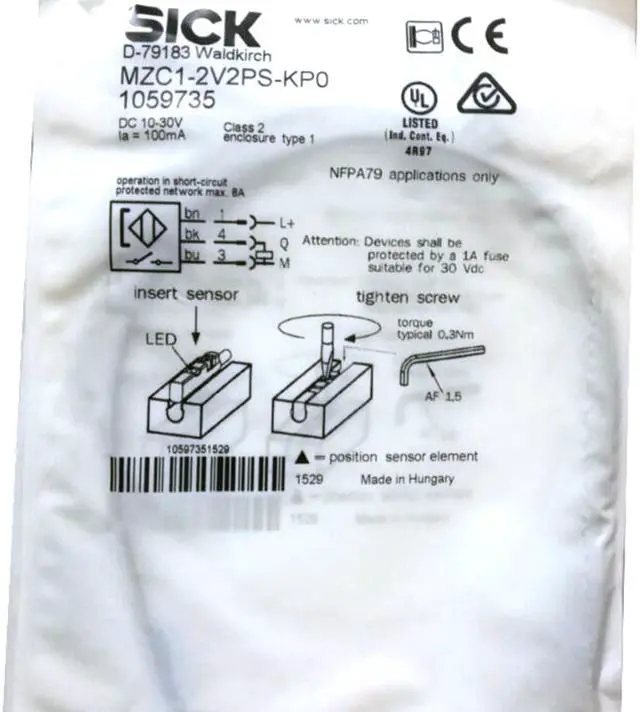

SICK MZC1-2V2PS-KP0 Sensors for C-slot Cylinders,PNP,New
- SICK MZC1-2V2PS-KP0 Sensors for C-slot Cylinders,PNP,New
+
+
Overview
Specs
Reviews
SICK MZC1-2V2PS-KP0 Sensors for C-slot Cylinders,PNP,New
Features
Cylinder type C-slot
Cylinder types with adapter
SMC rail CDQ2
SMC rail ECDQ2
Round body cylinder
Profile cylinders and tie-rod cylinders

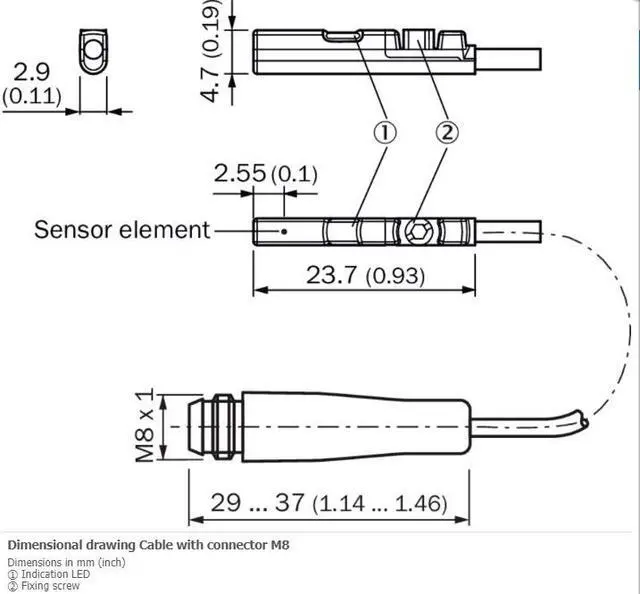

Housing length 23.7 mm
Switching output PNP
Switching frequency 1,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
Cable outlet Axial
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Power consumption 8 mA 1)
Voltage drop = 2.5 V
Continuous current Ia = 100 mA
Protection class III
Response sensitivity, typ. 2.2 mT
Overrun distance, typ. 4 mm
Hysteresis, typ. = 0.8 mT
Reproducibility = 0.1 mT 2)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –30 °C ... +80 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Plastic
Connection type Cable with connector M8, 3-pin, 0.3 m
Cable material PUR
Conductor cross-section 0.09 mm²
Features
Cylinder type C-slot
Cylinder types with adapter
SMC rail CDQ2
SMC rail ECDQ2
Round body cylinder
Profile cylinders and tie-rod cylinders
Housing length 23.7 mm
Switching output PNP
Switching frequency 1,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
Cable outlet Axial
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Power consumption 8 mA 1)
Voltage drop = 2.5 V
Continuous current Ia = 100 mA
Protection class III
Response sensitivity, typ. 2.2 mT
Overrun distance, typ. 4 mm
Hysteresis, typ. = 0.8 mT
Reproducibility = 0.1 mT 2)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –30 °C ... +80 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Plastic
Connection type Cable with connector M8, 3-pin, 0.3 m
Cable material PUR
Conductor cross-section 0.09 mm²
