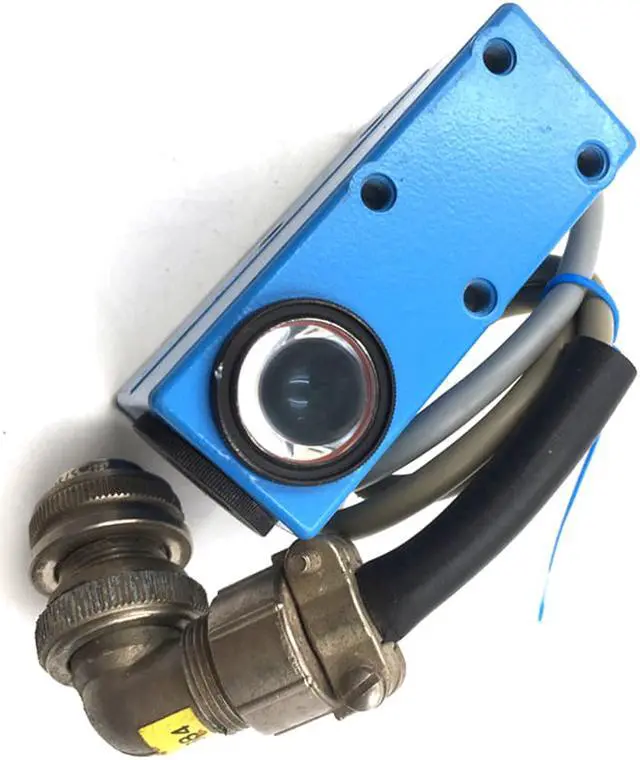

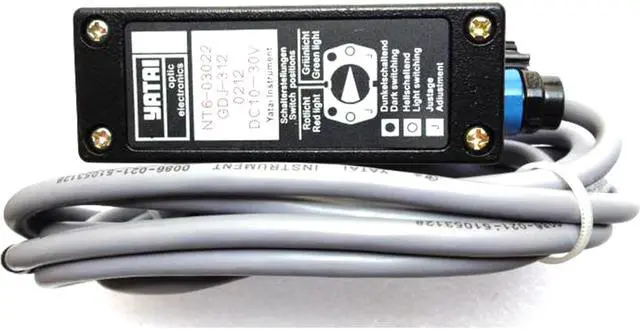

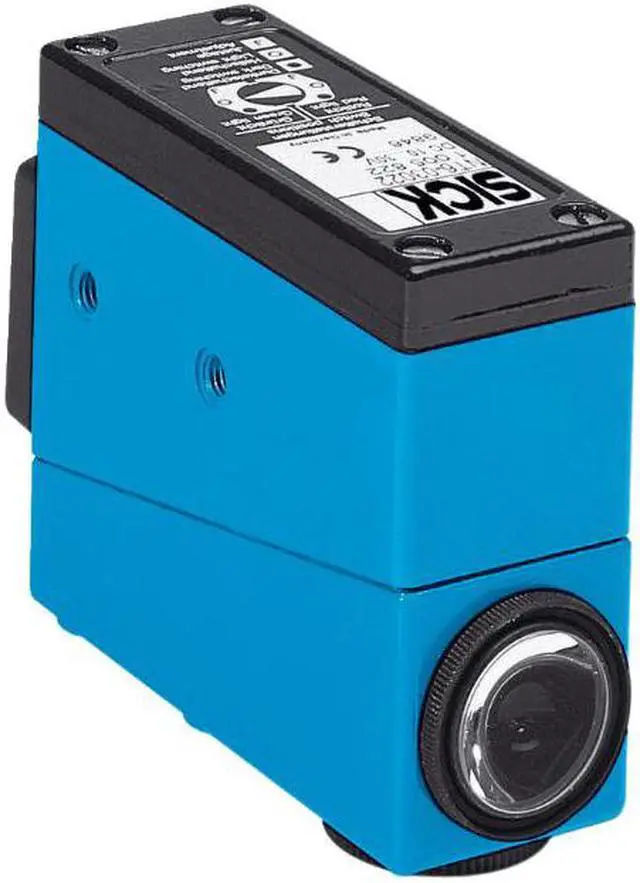

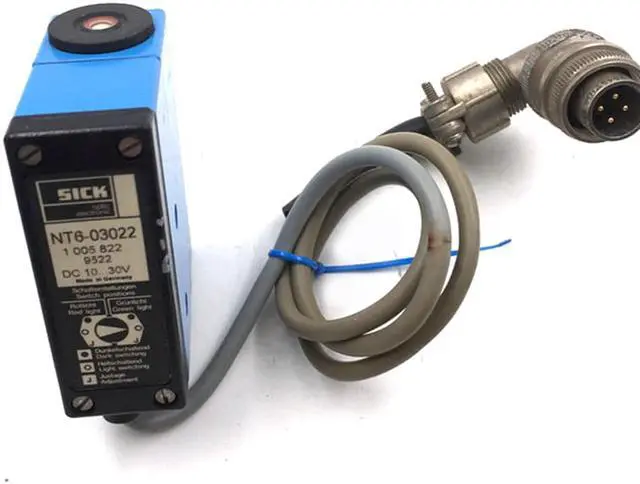

SICK NT6-03022 Sensor New
- SICK NT6-03022 Sensor New
+
+
Overview
Specs
Reviews

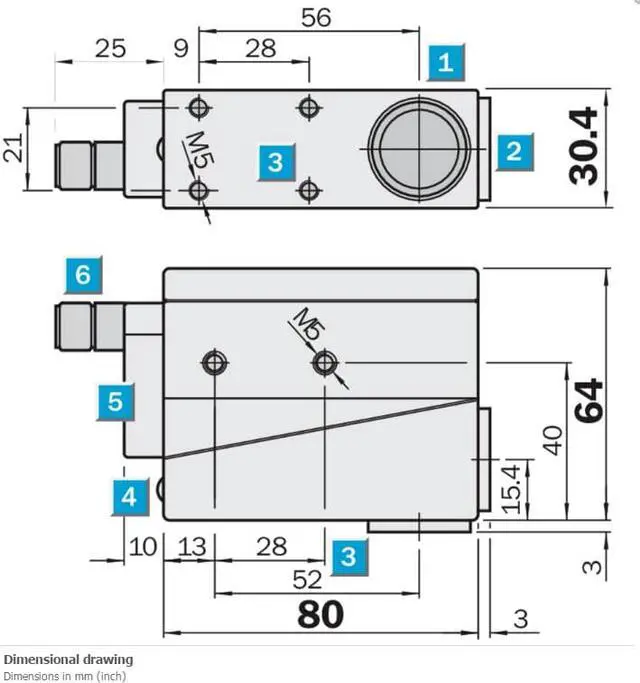

FEATURES Dimensions (W x H x D) 80 mm x 30.4 mm x 64 mm Sensing distance 9 mm Sensing distance tolerance ± 2 mm Housing design (light emission) Rectangular Light source LED, Red, green 1) Wave length 560 nm Light emission Long and short side of housing, exchangeable Light spot size 1.5 mm x 5 mm 2) Light spot direction Vertical 3) Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple 5 Vpp Power consumption 80 mA 1) Switching frequency 10 kHz 2) Response time >50 µs 3) Switching output (voltage)
B: HIGH = Uv - < 2 V / LOW = < 2 V Analog output 0.15 V... 6 V Output current Imax. 200 mA Connection type Cable, 2 m 4) Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Zinc diecast
B: HIGH = Uv - < 2 V / LOW = < 2 V Analog output 0.15 V... 6 V Output current Imax. 200 mA Connection type Cable, 2 m 4) Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Zinc diecast
