$3,039.00
Ships from China.
Fees for brokerage and duty included in price.
Meet Your Seller

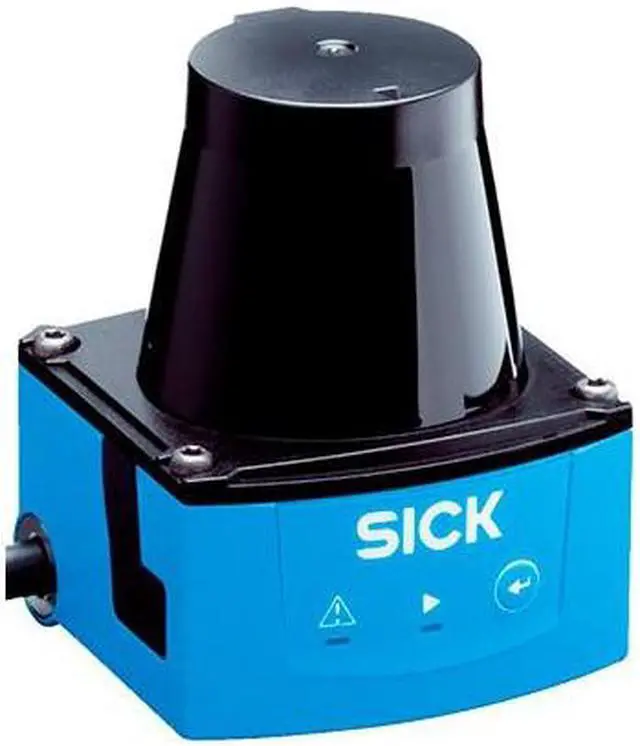

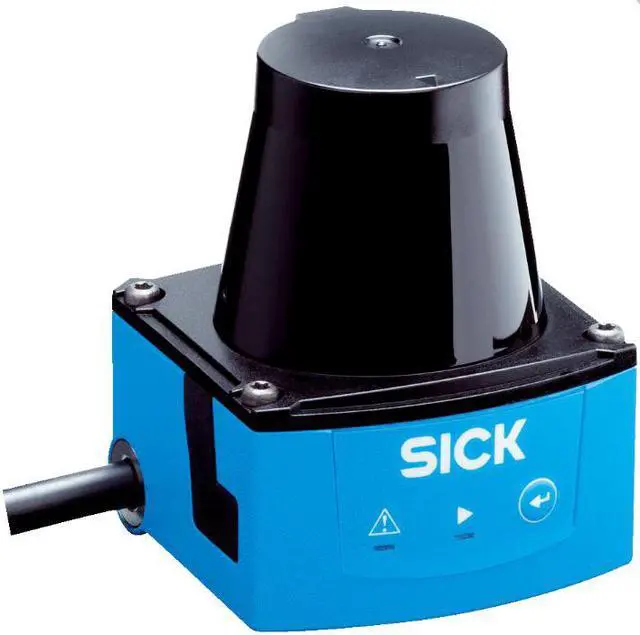

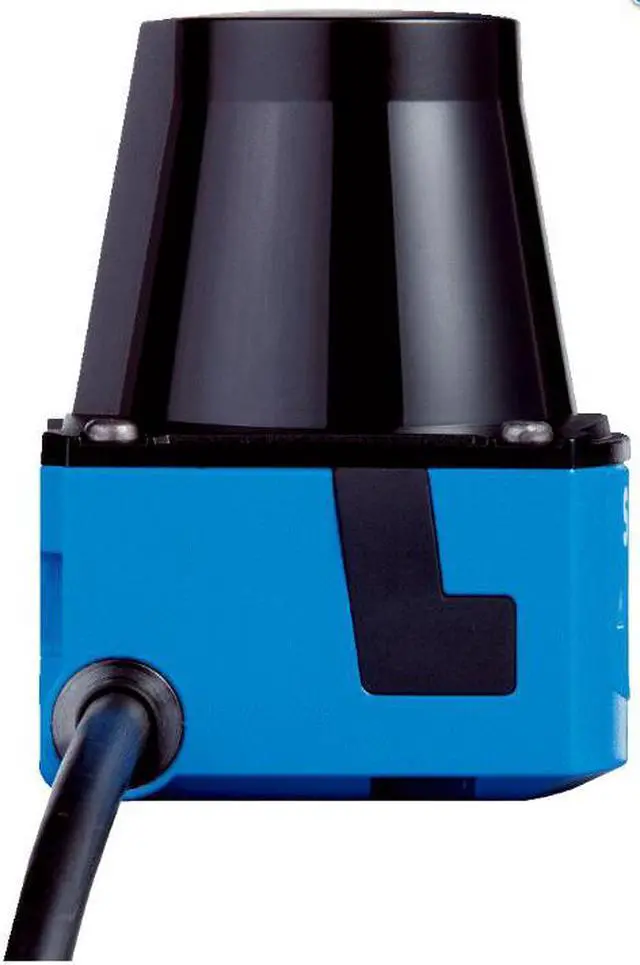

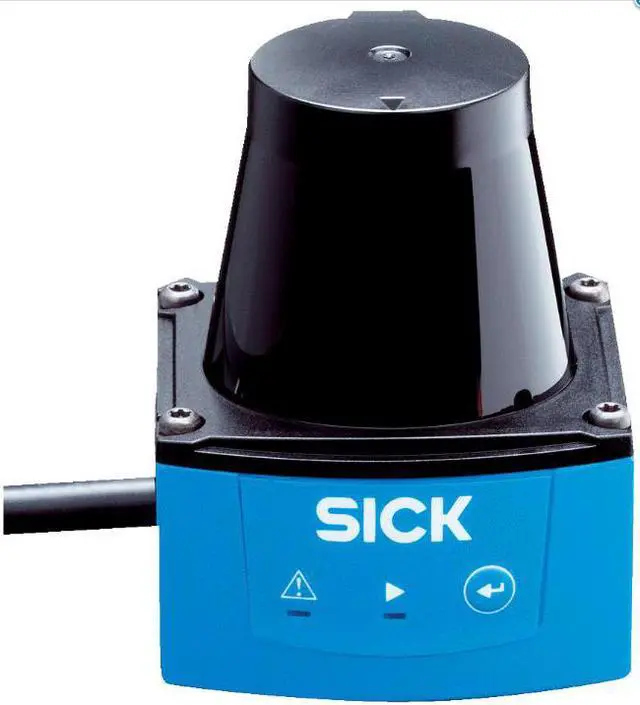

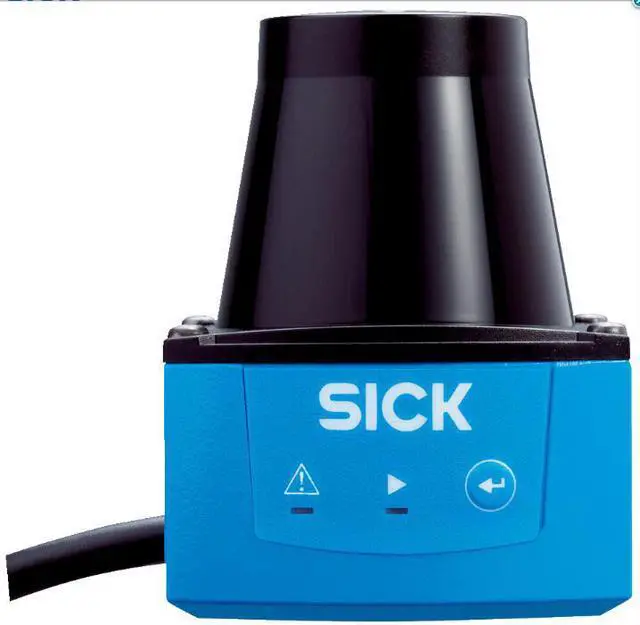

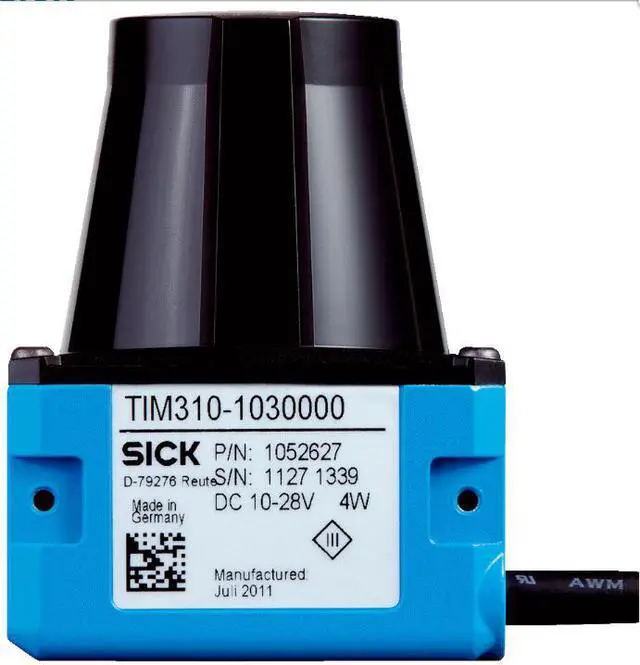

SICK TIM310-1030000 LiDAR Sensors New
- SICK TIM310-1030000 LiDAR Sensors New
+
+
Overview
Specs
Reviews
FEATURES Measurement principle HDDM Application Indoor Light source Infrared (850 nm) Laser class 1 (IEC 60825- 1:2014, EN 60825- 1:2014 ) Aperture angle Horizontal 270° Scanning frequency 15 Hz Angular resolution 1° Working range 0.05 m... 4 m Scanning range At 10% remission 2 m PERFORMANCE Response time Typ. 134 ms Detectable object shape Almost any Systematic error ± 40 mm 1) Statistical error 30 mm 1) Integrated application Field evaluation Number of field sets 16 field triples (48 fields, 1 triple (3 fields) can be configured directly at the scanner) Simultaneous evaluation cases 1 (3 fields)
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 30 days
- This item is covered by B-IN Electronics Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
