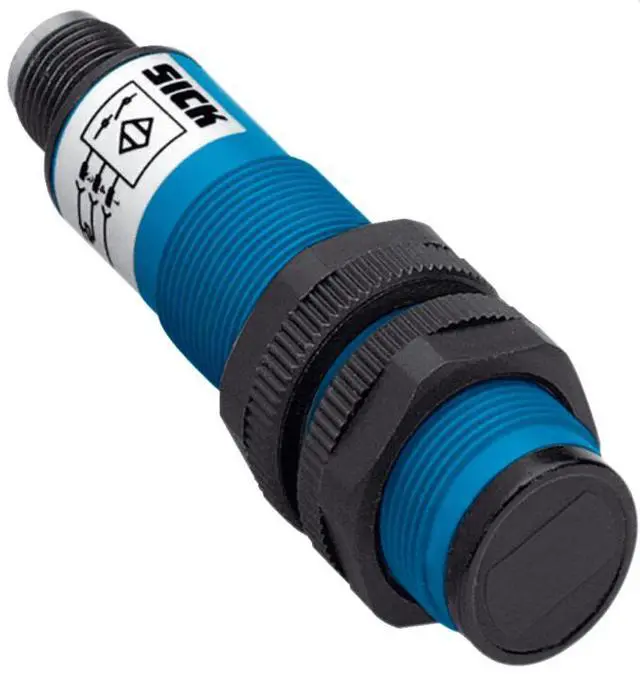

SICK VL18-2T2132 Photoelectric retro-reflective sensor ,New
- SICK VL18-2T2132 Photoelectric retro-reflective sensor ,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical

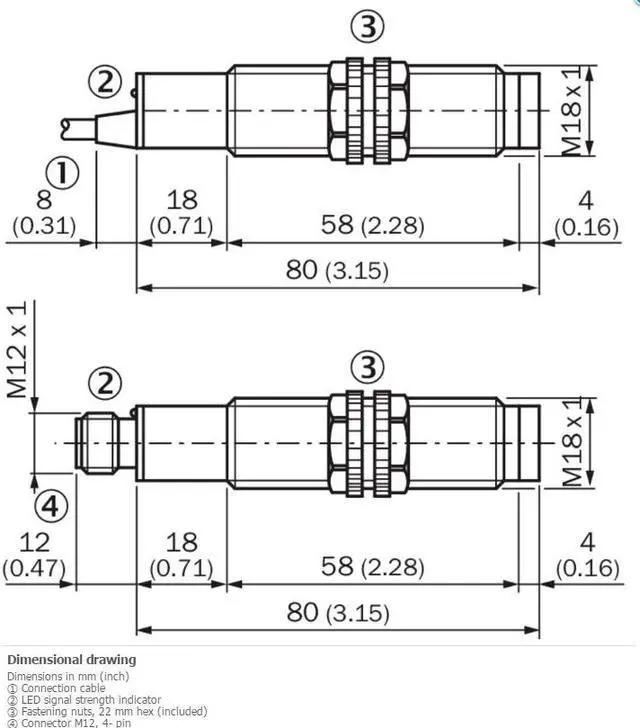

Housing length 88 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.005 m ... 5 m 1)
Sensing range 0.01 m ... 4 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 30 mm (3 m)
Angle of dispersion 6°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 30 mA 2)
Switching output TRIAC
Switching mode Dark switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.34 mm²
Cable diameter Ø 4.7 mm
Circuit protection C 7)
Protection class III
Weight 95 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical
Housing length 88 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.005 m ... 5 m 1)
Sensing range 0.01 m ... 4 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 30 mm (3 m)
Angle of dispersion 6°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 30 mA 2)
Switching output TRIAC
Switching mode Dark switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.34 mm²
Cable diameter Ø 4.7 mm
Circuit protection C 7)
Protection class III
Weight 95 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
UL File No. NMFT2.E175606
