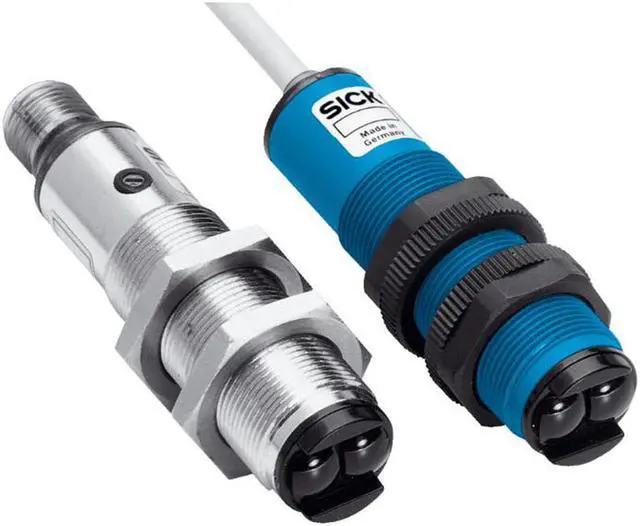

SICK VL18-4N3640 Photoelectric retro-reflective sensor ,NPN,New
- SICK VL18-4N3640 Photoelectric retro-reflective sensor ,NPN,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.05 m ... 3.7 m 1)
Sensing range 0.05 m ... 3 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 150 mm (3 m)
Angle of dispersion Approx. 2.8°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 100 g
Polarisation filter ?
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.05 m ... 3.7 m 1)
Sensing range 0.05 m ... 3 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 150 mm (3 m)
Angle of dispersion Approx. 2.8°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 100 g
Polarisation filter ?
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
