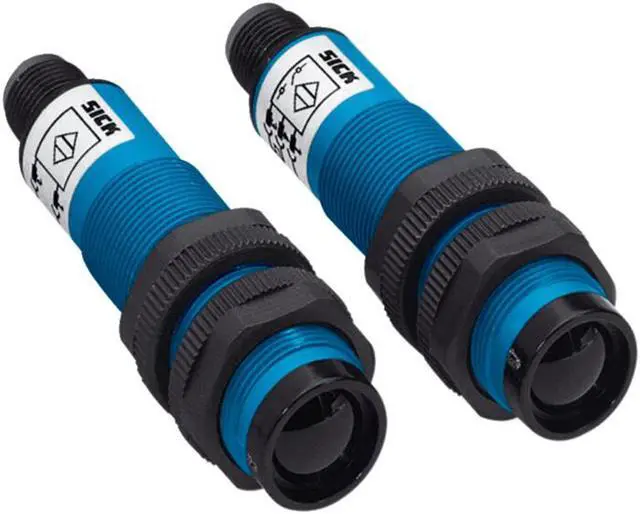

SICK VS/VE18-2T1132 Through-beam photoelectric sensor New
- SICK VS/VE18-2T1132 Through-beam photoelectric sensor New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Through-beam photoelectric sensor
Housing design (light emission) Cylindrical
Housing length 88 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 22 m
Sensing range 0 m ... 16 m
Type of light Infrared light
Light source LED 1)
Light spot size (distance) Ø 800 mm (16 m)
Angle of dispersion 2.9°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 45 mA 2)
Switching output TRIAC
Switching mode Light switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Cable, 3-wire, 2 m 6) 7)
Cable material PVC
Conductor cross-section 0.34 mm²
Cable diameter Ø 4.7 mm
Circuit protection C 8)
Protection class III
Weight 190 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Through-beam photoelectric sensor
Housing design (light emission) Cylindrical
Housing length 88 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 22 m
Sensing range 0 m ... 16 m
Type of light Infrared light
Light source LED 1)
Light spot size (distance) Ø 800 mm (16 m)
Angle of dispersion 2.9°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 45 mA 2)
Switching output TRIAC
Switching mode Light switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Cable, 3-wire, 2 m 6) 7)
Cable material PVC
Conductor cross-section 0.34 mm²
Cable diameter Ø 4.7 mm
Circuit protection C 8)
Protection class III
Weight 190 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
