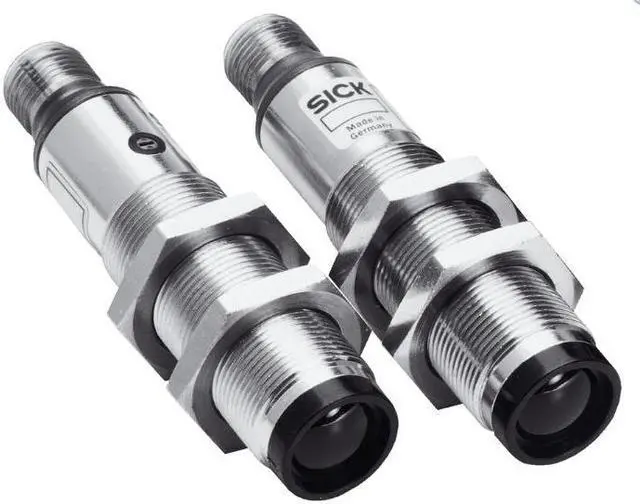

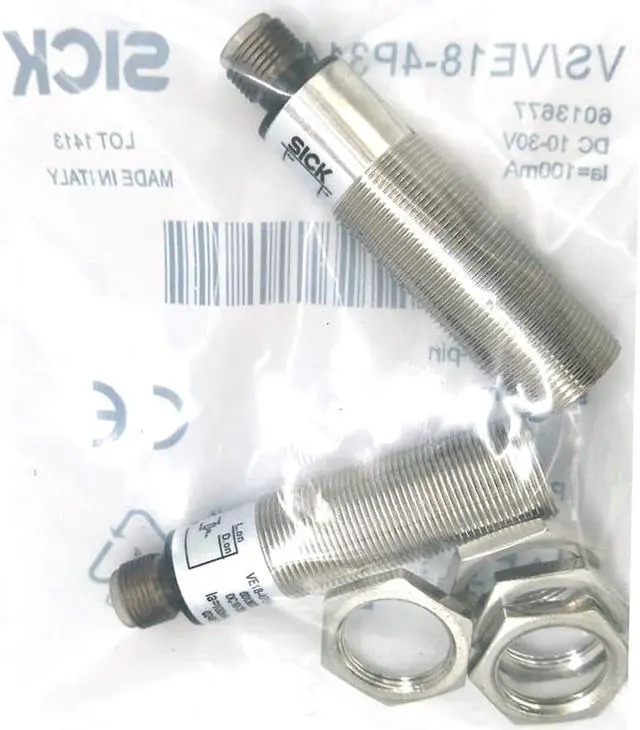

SICK VS/VE18-4P3140 Through-beam photoelectric sensor ,PNP,New
- SICK VS/VE18-4P3140 Through-beam photoelectric sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Through-beam photoelectric sensor
Housing design (light emission) Cylindrical

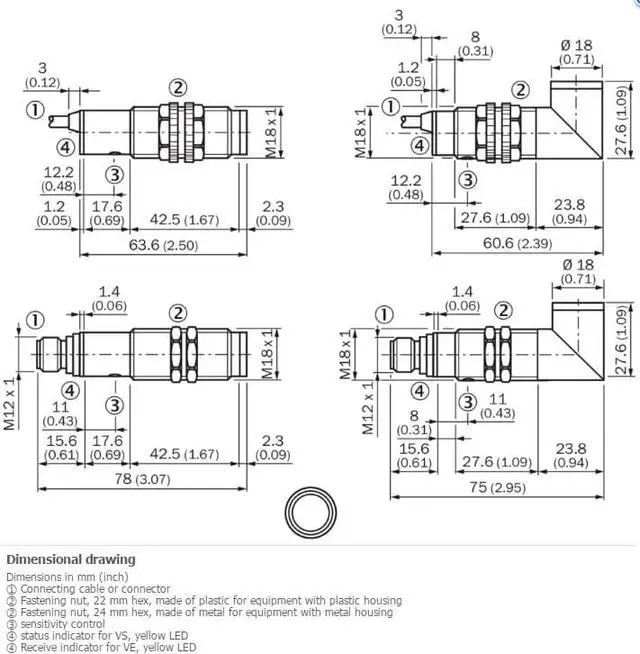

Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 20 m
Sensing range 0 m ... 14 m
Type of light Infrared light
Light source LED 1)
Light spot size (distance) Ø 700 mm (14 m)
Angle of dispersion Approx. 2.8°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)

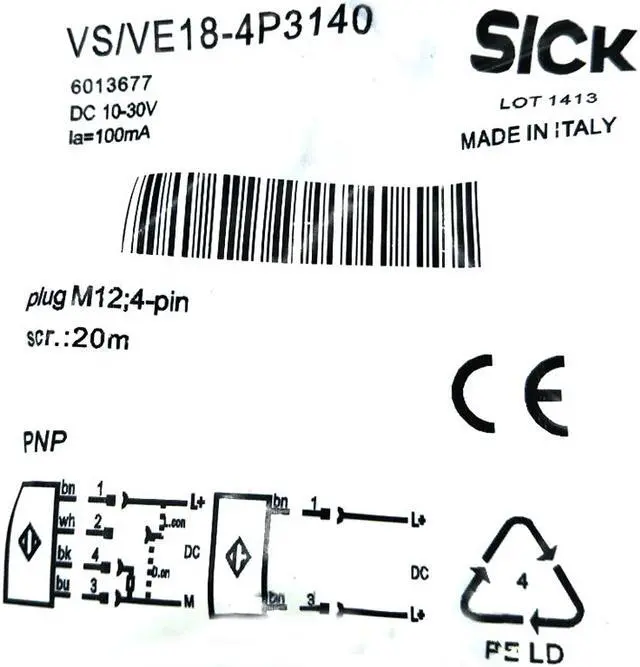

Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 240 g
Housing material Metal, Nickel-plated brass
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Through-beam photoelectric sensor
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 20 m
Sensing range 0 m ... 14 m
Type of light Infrared light
Light source LED 1)
Light spot size (distance) Ø 700 mm (14 m)
Angle of dispersion Approx. 2.8°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 240 g
Housing material Metal, Nickel-plated brass
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
