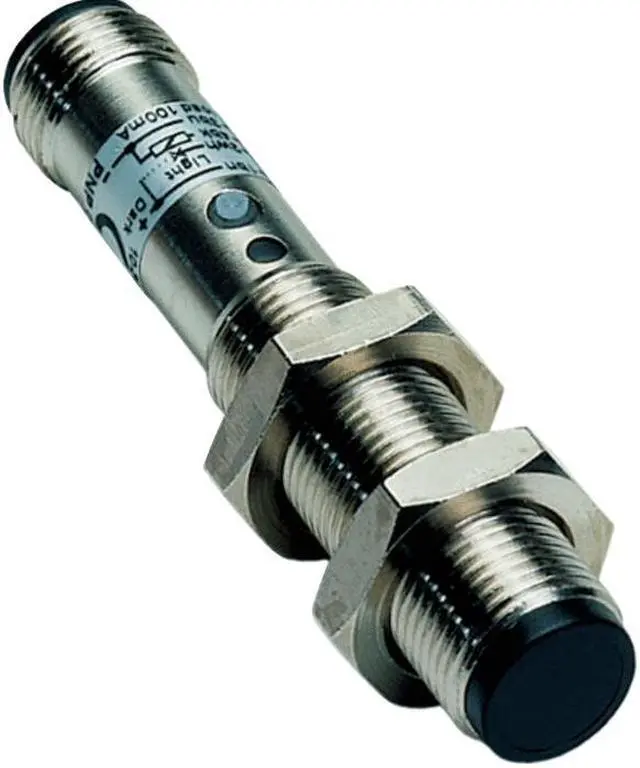

SICK VT12T-2P410 Photoelectric Switch ,PNP,New
- SICK VT12T-2P410 Photoelectric Switch ,PNP,New
+
+
Overview
Specs
Reviews
SICK VT12T-2P410 Photoelectric Switch, PNP, New FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Housing design (light emission) Cylindrical Housing length 65.5 mm Thread diameter (housing) Round connector M12 x 1 Sensing range max. 0 mm... 115 mm 1) Sensing range 2 mm... 100 mm Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 20 mm (100 mm) Angle of dispersion Approx. 11.4 ° Wave length 880 nm Adjustment Single teach-in button (Sensing range) 3) Selectable via control input C (Sensing range) 4) MECHANICS/ELECTRONICS Supply voltage 10 V DC.
.. 30 V DC 1) Ripple = 10 % 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via control input C Output current Imax. 100 3) Response time = 1.25 ms 4) Switching frequency 400 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 18 g Housing material Metal, Nickel-plated brass/PA Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C Ambient storage temperature –25 °C.
.. +70 °C
.. 30 V DC 1) Ripple = 10 % 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via control input C Output current Imax. 100 3) Response time = 1.25 ms 4) Switching frequency 400 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 18 g Housing material Metal, Nickel-plated brass/PA Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C Ambient storage temperature –25 °C.
.. +70 °C
