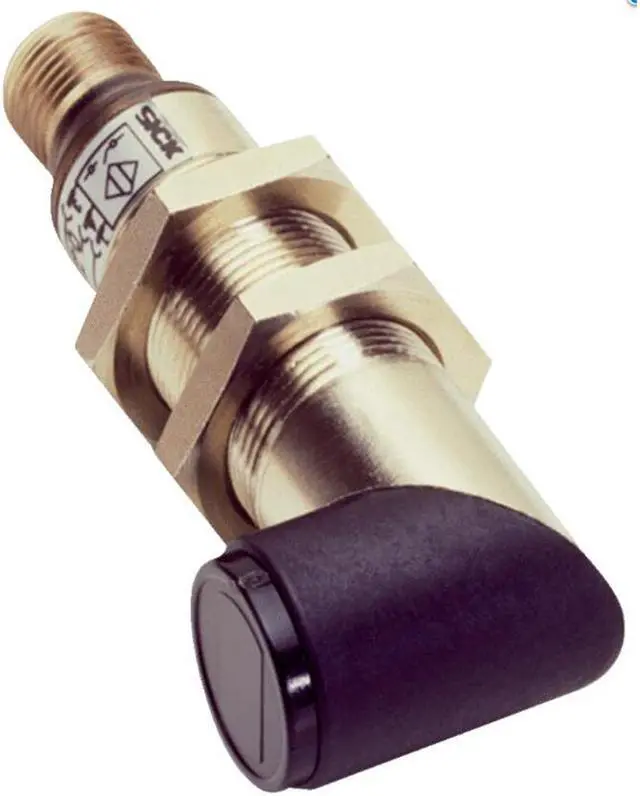

SICK VTE18-3P4440 Photoelectric proximity sensor ,PNP,New
- SICK VTE18-3P4440 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Housing length 75 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 5 mm ... 400 mm 1)
Sensing range 5 mm ... 350 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 20 mm (400 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Dark switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Housing length 75 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 5 mm ... 400 mm 1)
Sensing range 5 mm ... 350 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 20 mm (400 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Dark switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
