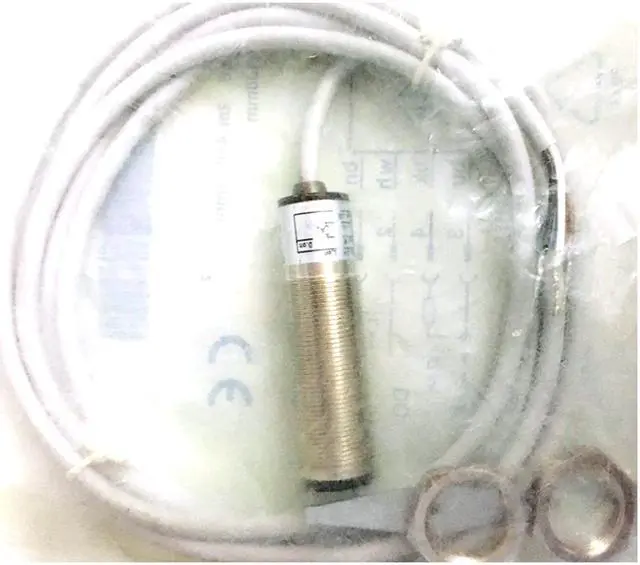

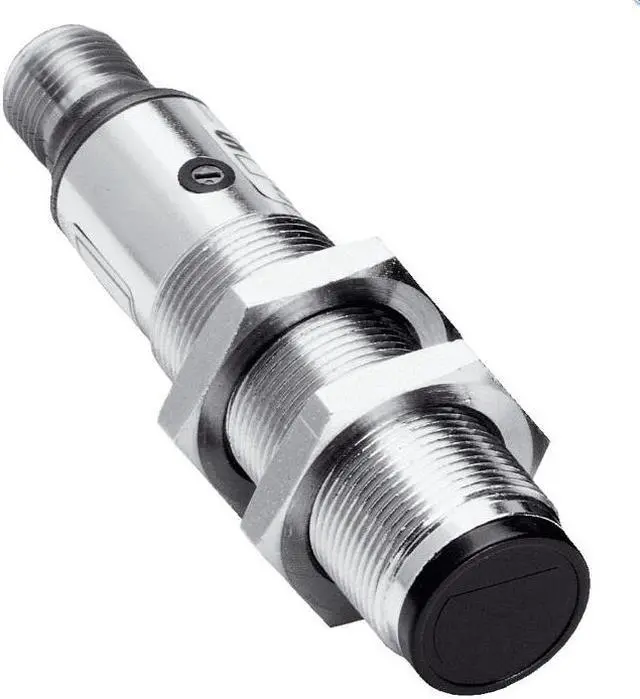

SICK VTF18-3F1212 Photoelectric proximity sensor ,PNP,New
- SICK VTF18-3F1212 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical

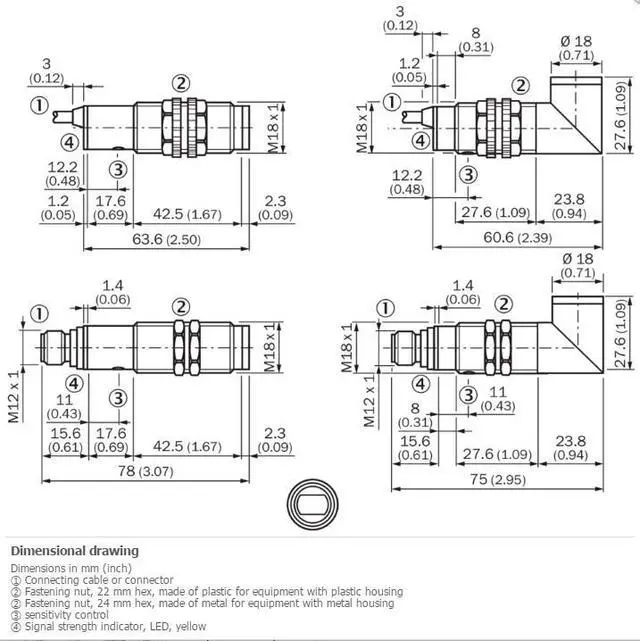

Housing length 63.6 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 100 mm 1)
Sensing range 3 mm ... 90 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (50 mm)
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)

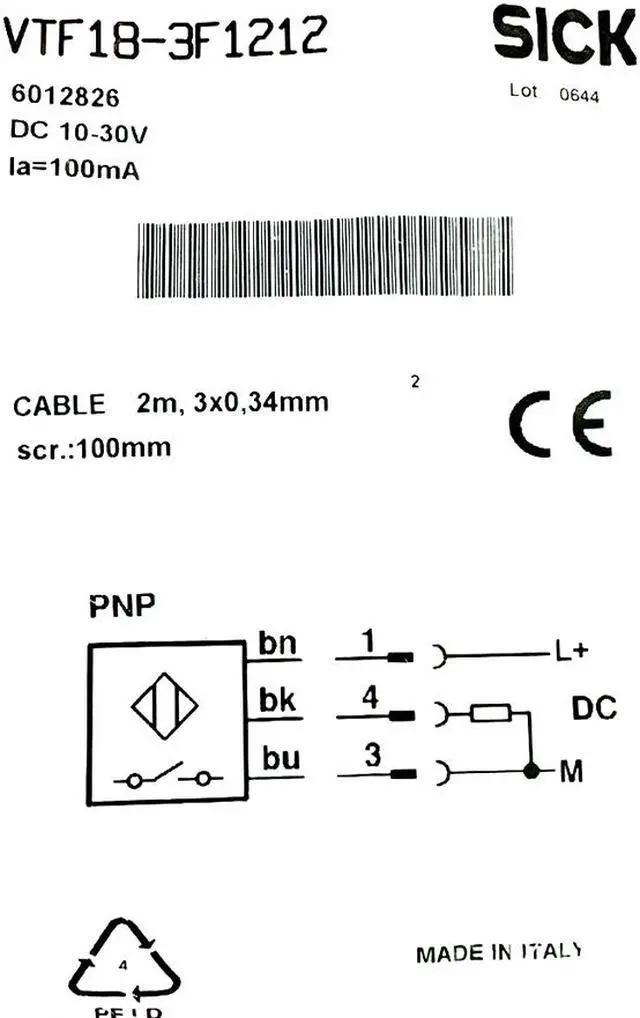

Switching output PNP
Switching mode Light switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.1 mm
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical
Housing length 63.6 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 100 mm 1)
Sensing range 3 mm ... 90 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (50 mm)
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.1 mm
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
