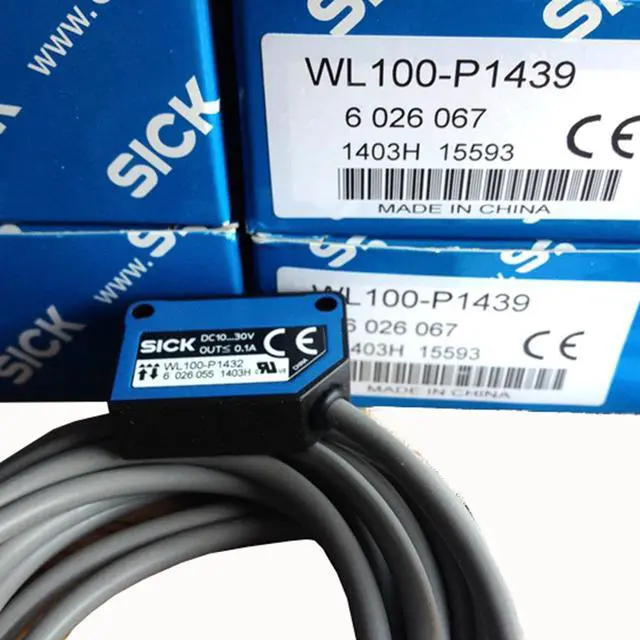

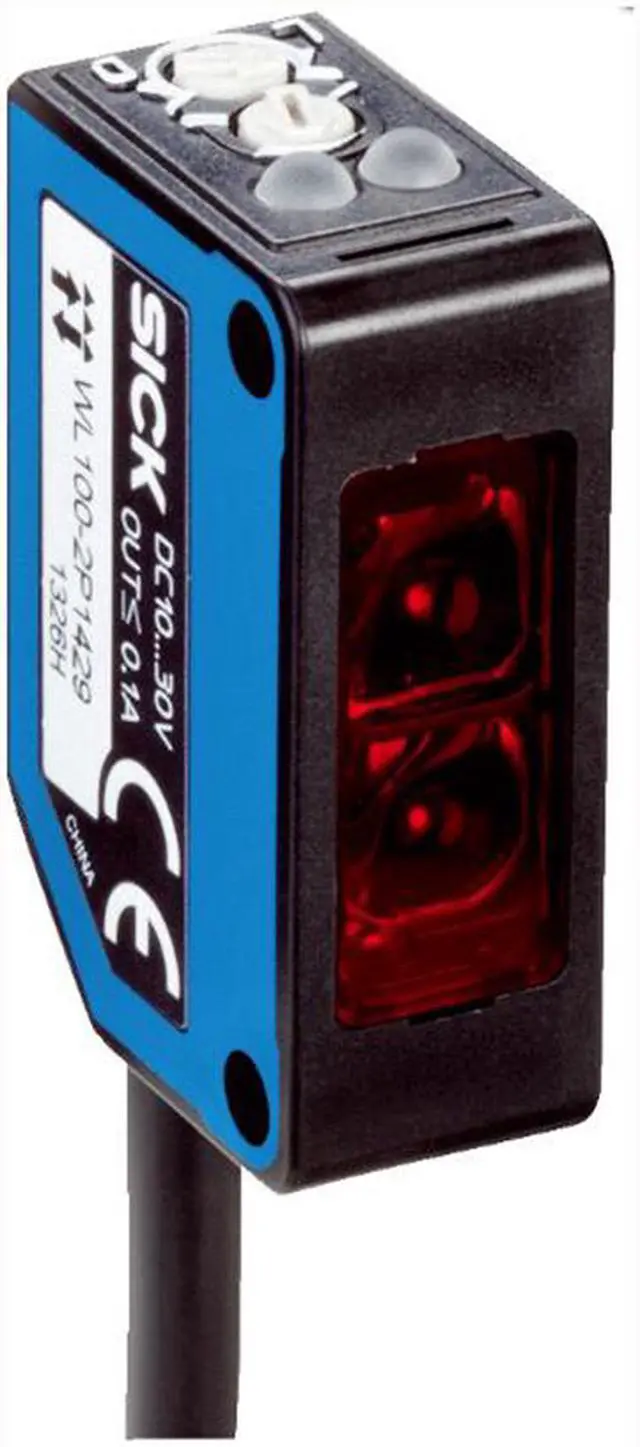

SICK WL100-P1439 Miniature Photoelectric Sensors,PNP,New
- SICK WL100-P1439 Miniature Photoelectric Sensors,PNP,New
+
+
Overview
Specs
Reviews

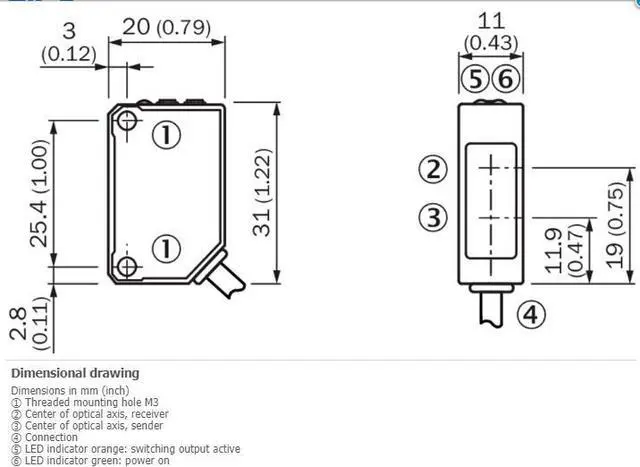

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 11 mm x 31 mm x 20 mm Housing design (light emission) Rectangular Sensing range max. 0.01 m... 7.2 m 1) Sensing range 0.01 m... 5.5 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 280 mm (4 m) Wave length 632 nm Adjustment Potentiometer (Sensitivity) MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Signal voltage PNP HIGH/LOW UV - 1, 8 V / ca.
0 V Output current Imax. 100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.18 mm² Circuit protection A 7) B 8) D 9) Protection class III Polarisation filter? Housing material Plastic, ABS/PC/POM Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Mounting bracket BEF-W100-A, Reflector P250 Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
0 V Output current Imax. 100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.18 mm² Circuit protection A 7) B 8) D 9) Protection class III Polarisation filter? Housing material Plastic, ABS/PC/POM Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Mounting bracket BEF-W100-A, Reflector P250 Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
