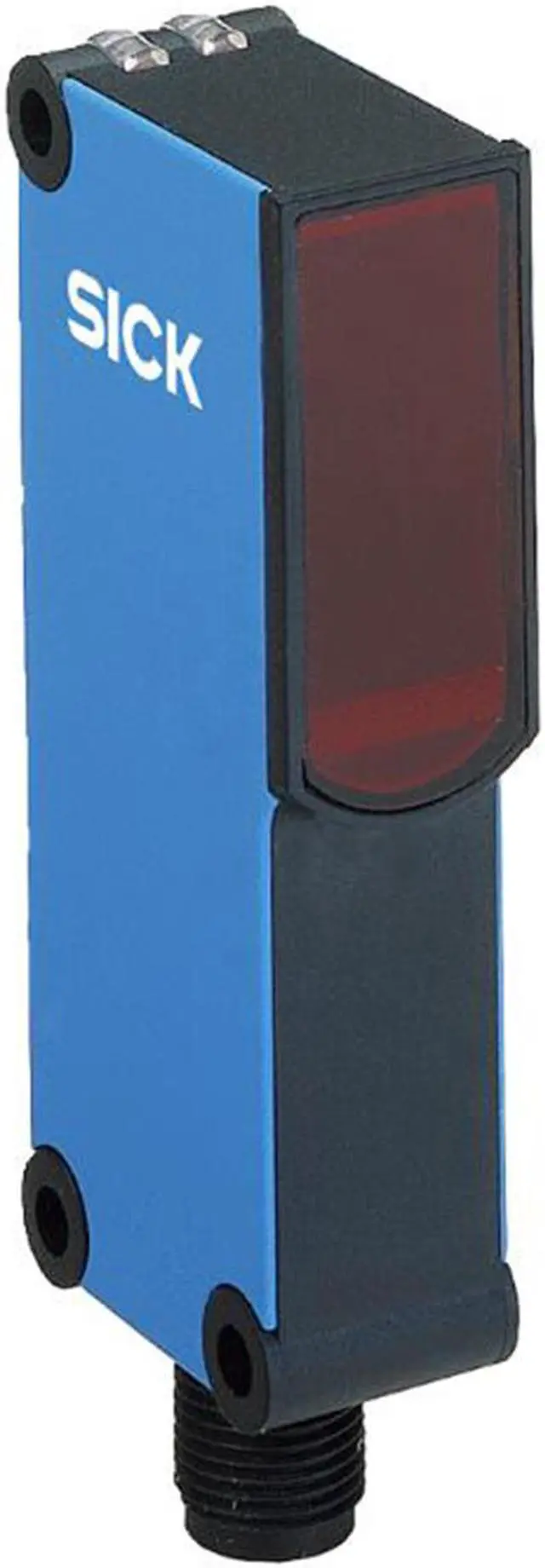

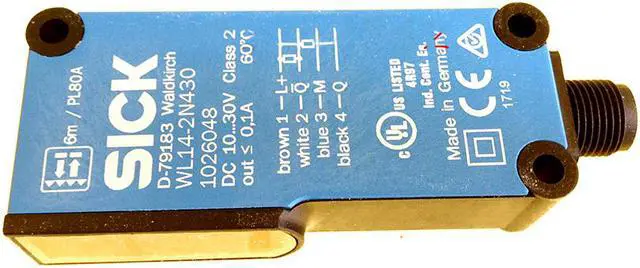

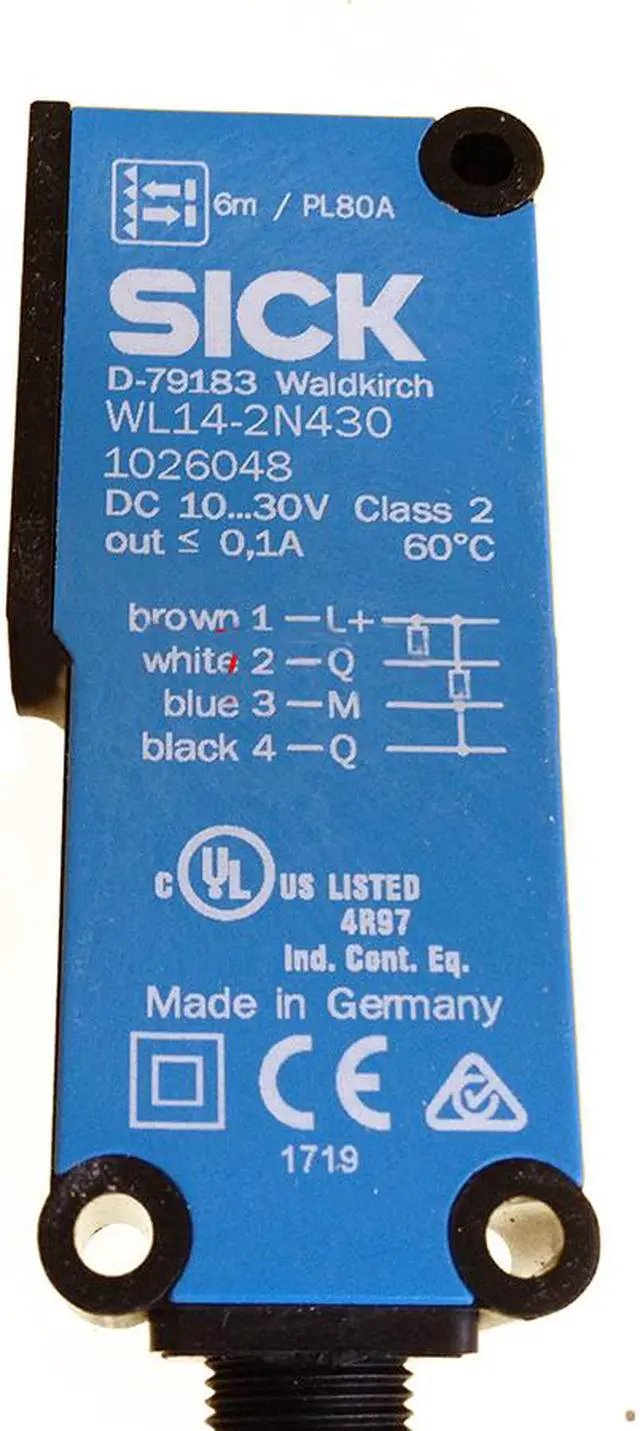

SICK WL14-2N430 Photoelectric retro-reflective sensor ,NPN New
- SICK WL14-2N430 Photoelectric retro-reflective sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

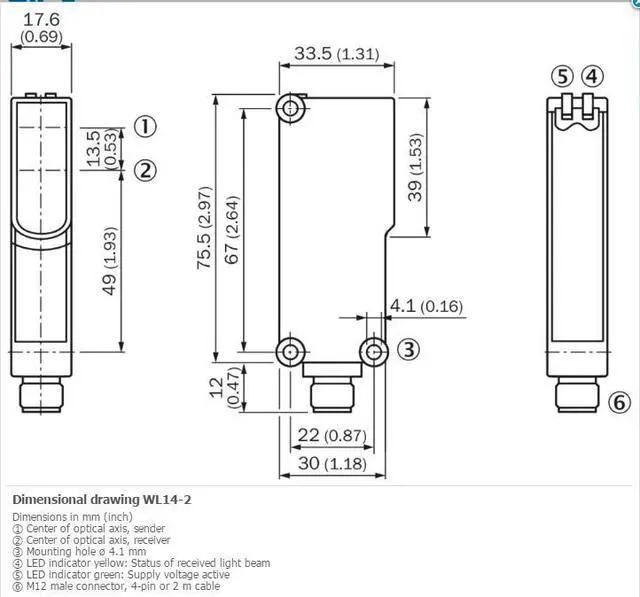

Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0.15 m ... 6 m 1)
Sensing range 0.15 m ... 4 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 140 mm (4 m)
Angle of dispersion Approx. 2°
Wave length 645 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple 5 Vpp 2)
Power consumption 35 mA 3)
Switching output NPN
Output function Complementary
Switching mode Light/dark switching
Output current Imax. = 100 mA
Response time = 2.5 ms 4)
Switching frequency 200 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Weight 40 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0.15 m ... 6 m 1)
Sensing range 0.15 m ... 4 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 140 mm (4 m)
Angle of dispersion Approx. 2°
Wave length 645 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple 5 Vpp 2)
Power consumption 35 mA 3)
Switching output NPN
Output function Complementary
Switching mode Light/dark switching
Output current Imax. = 100 mA
Response time = 2.5 ms 4)
Switching frequency 200 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Weight 40 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E181493 & NRKH7.E181493
