$169.72
Ships from China.
Fees for brokerage and duty included in price.
Meet Your Seller

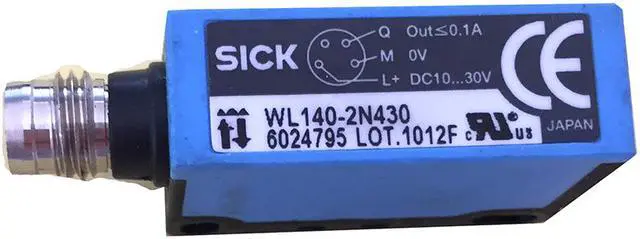

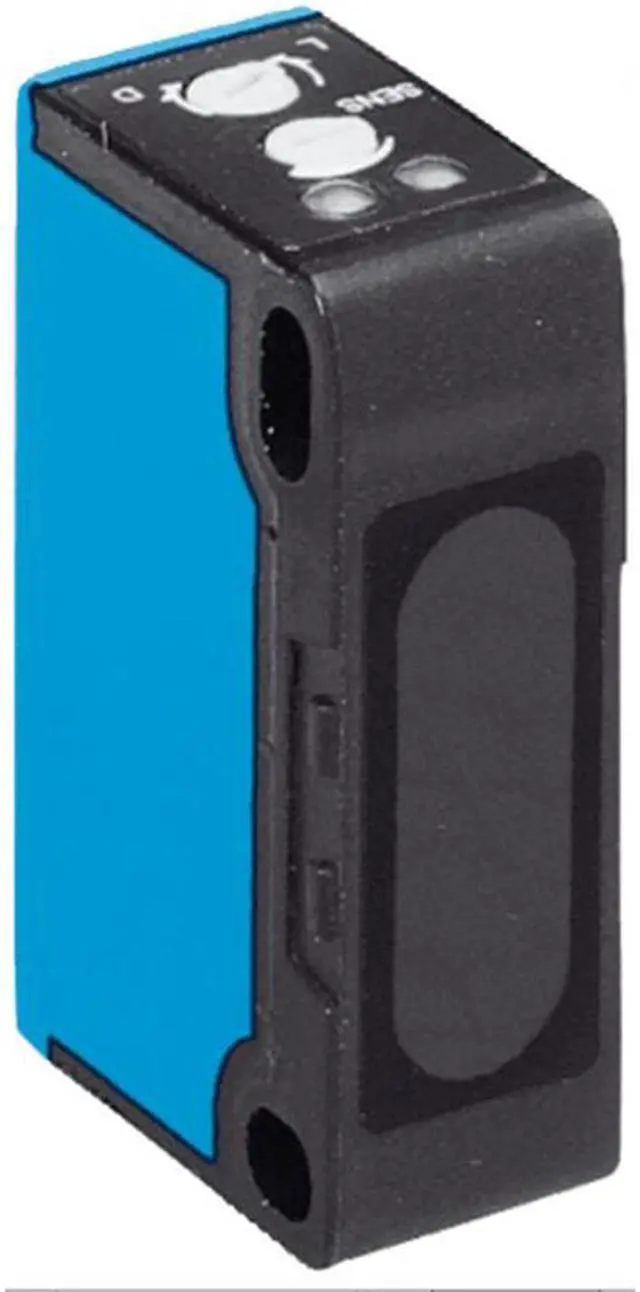

SICK WL140-2N430 Photoelectric retro-reflective sensor ,NPN New
- SICK WL140-2N430 Photoelectric retro-reflective sensor ,NPN New
+
+
Overview
Specs
Reviews
Sensor/ detection principle Photoelectric retro-reflective sensor

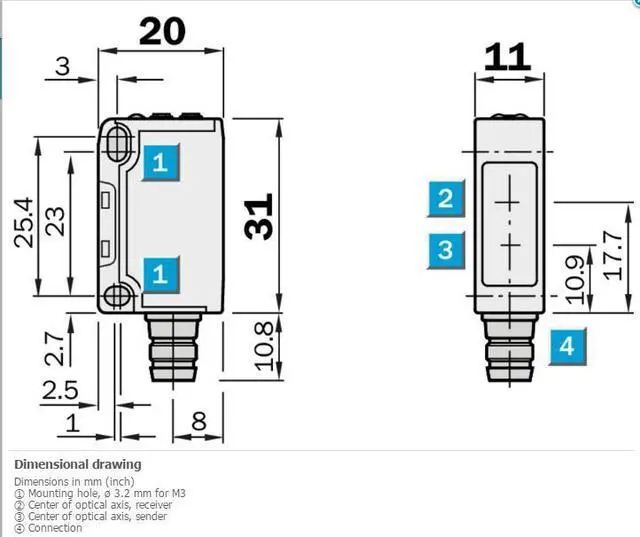

Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m ... 6.5 m 1)
Sensing range 0.01 m ... 5 m 1)
Type of light Visible red light
Light source LED
Wave length 680 nm
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 30 mA 1)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Response time = 0.5 ms 2)
Connection type Male connector M8, 4-pin
Housing material Plastic, PBT
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m ... 6.5 m 1)
Sensing range 0.01 m ... 5 m 1)
Type of light Visible red light
Light source LED
Wave length 680 nm
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 30 mA 1)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Response time = 0.5 ms 2)
Connection type Male connector M8, 4-pin
Housing material Plastic, PBT
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
