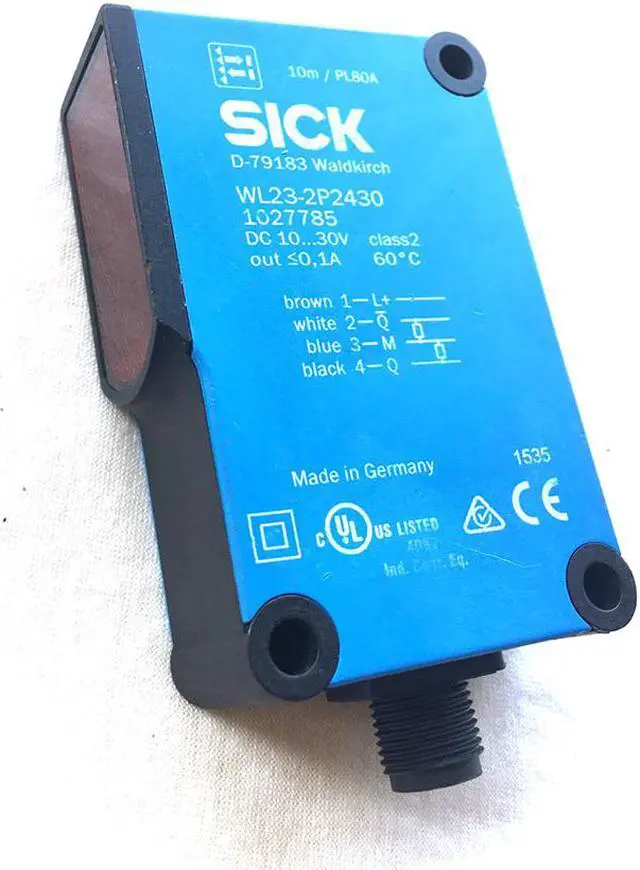

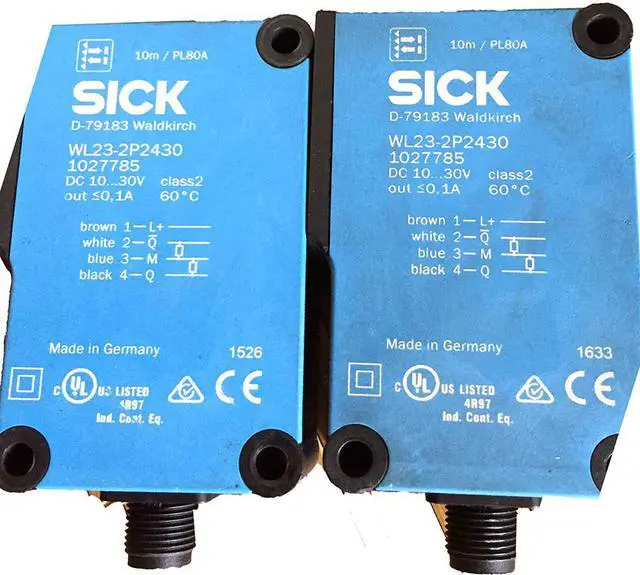

SICK WL23-2P2430 Photoelectric Retro-reflective Sensor,PNP,New

FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

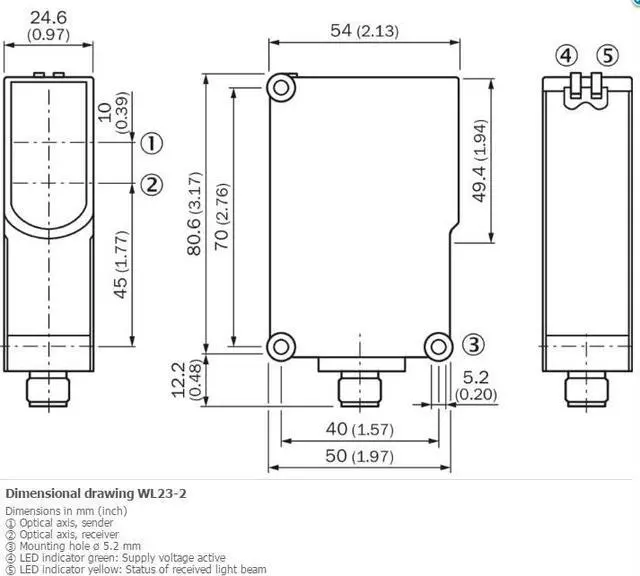

Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission) Rectangular
Sensing range max. 0.1 m ... 10 m 1)
Sensing range 0.3 m ... 7 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 45 mm (2.7 m)
Angle of dispersion 1.5°
Wave length 660 nm
Adjustment None

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. = 100 mA
Response time = 2.5 ms 4)
Switching frequency 200 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 100 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E181493 & NRKH7.E181493
