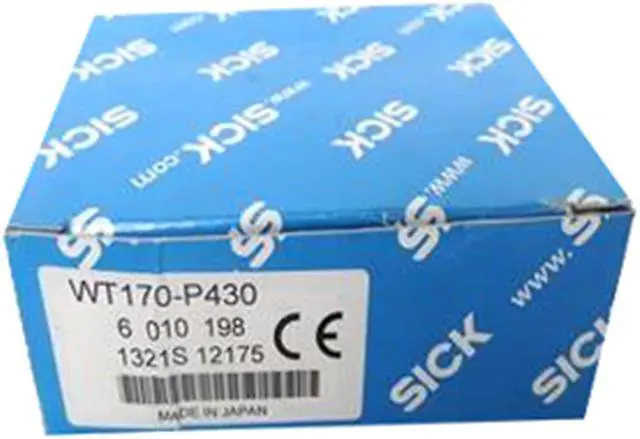

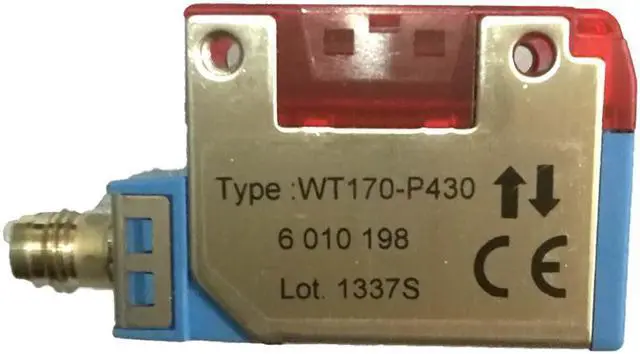

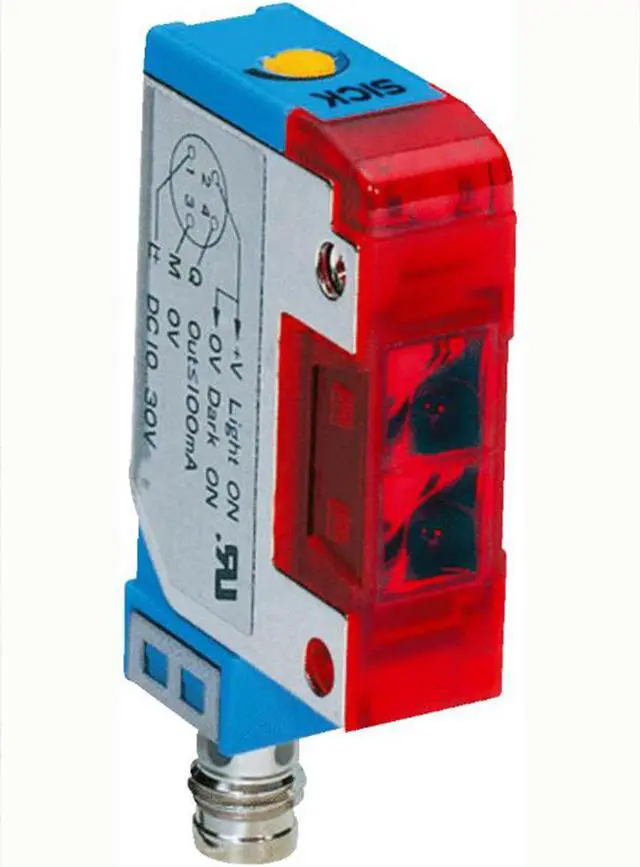

SICK WT170-P430 Photoelectric proximity sensor ,PNP,New
- SICK WT170-P430 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

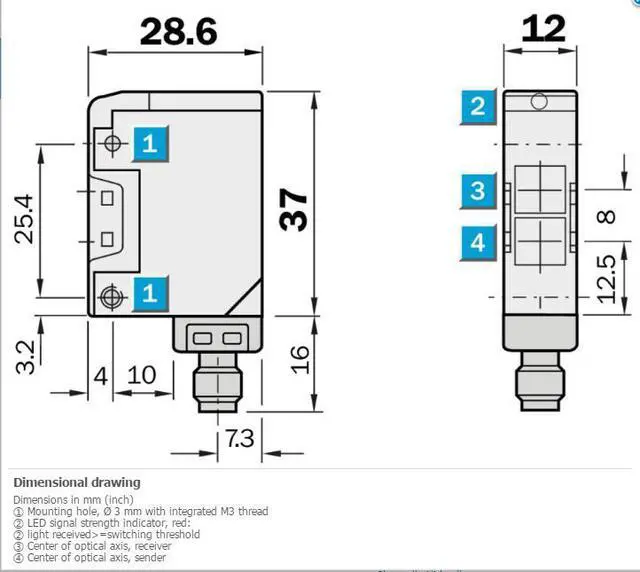

Dimensions (W x H x D) 12 mm x 37 mm x 28.6 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 550 mm 1)
Sensing range 10 mm ... 400 mm 1)
Type of light Visible red light
Light source LED
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 30 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 0.7 ms 2)
Connection type Male connector M8, 4-pin
Housing material Stainless steel, Stainless steel/ABS
Optics material Plastic, PC
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 12 mm x 37 mm x 28.6 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 550 mm 1)
Sensing range 10 mm ... 400 mm 1)
Type of light Visible red light
Light source LED
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple ± 10 %
Power consumption 30 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 0.7 ms 2)
Connection type Male connector M8, 4-pin
Housing material Stainless steel, Stainless steel/ABS
Optics material Plastic, PC
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
