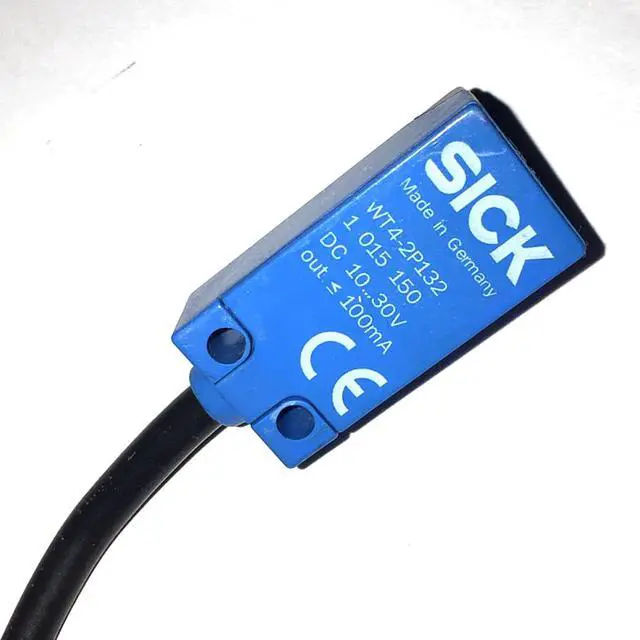

SICK WT4-2P132 Photoelectric Proximity Sensor ,PNP,New
- SICK WT4-2P132 Photoelectric Proximity Sensor ,PNP,New
+
+
Overview
Specs
Reviews

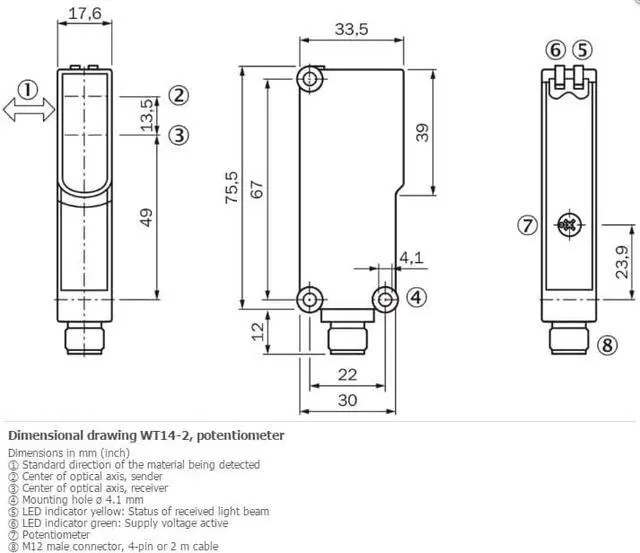

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm Housing design (light emission) Rectangular Sensing range max. 20 mm... 250 mm 1) Sensing range 50 mm... 250 mm 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 10 mm (250 mm) Wave length 675 nm Adjustment Potentiometer, 4 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple 5 Vpp 2) Power consumption 25 mA 3) Switching output PNP Output function Complementary Switching mode Light/dark switching Output current Imax.
= 100 mA Response time = 2.5 ms 4) Switching frequency 200 Hz 5) Connection type Cable, 4-wire, 2 m 6) Cable material PVC Circuit protection A 7) C 8) D 9) Weight 120 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E181493 & NRKH7. E181493
= 100 mA Response time = 2.5 ms 4) Switching frequency 200 Hz 5) Connection type Cable, 4-wire, 2 m 6) Cable material PVC Circuit protection A 7) C 8) D 9) Weight 120 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E181493 & NRKH7. E181493
