$139.99
Ships from China.
Fees for brokerage and duty included in price.
Meet Your Seller

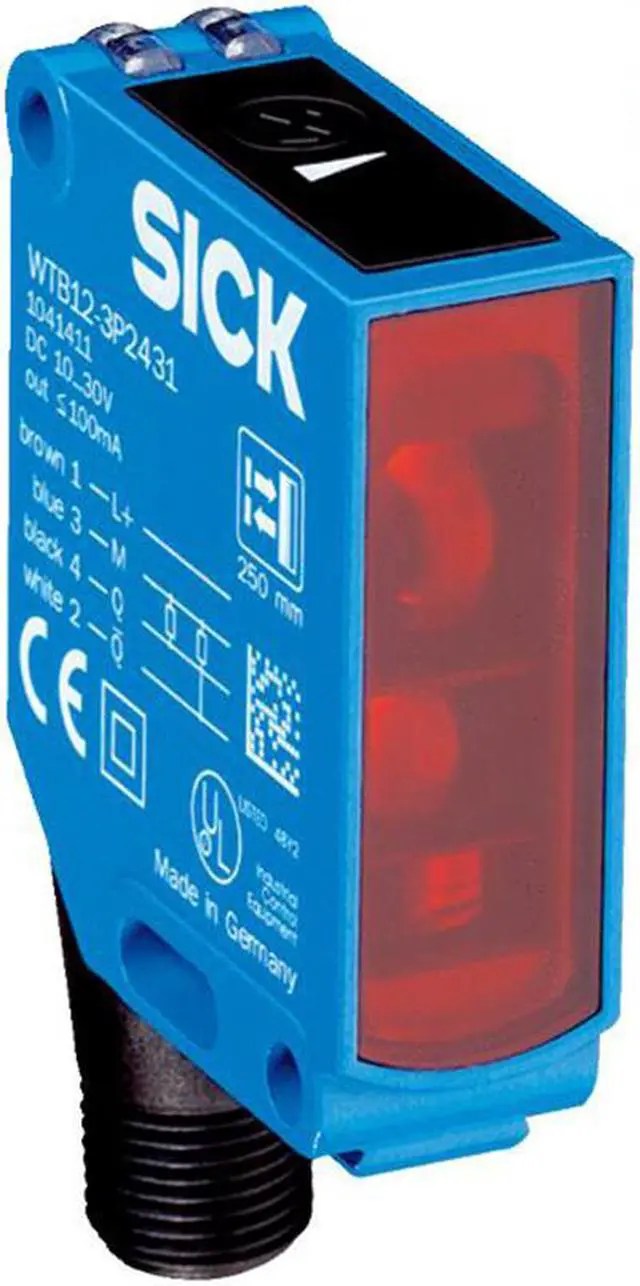

SICK WTB12-3P2411 Small Photoelectric Sensors PNP,New
- SICK WTB12-3P2411 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

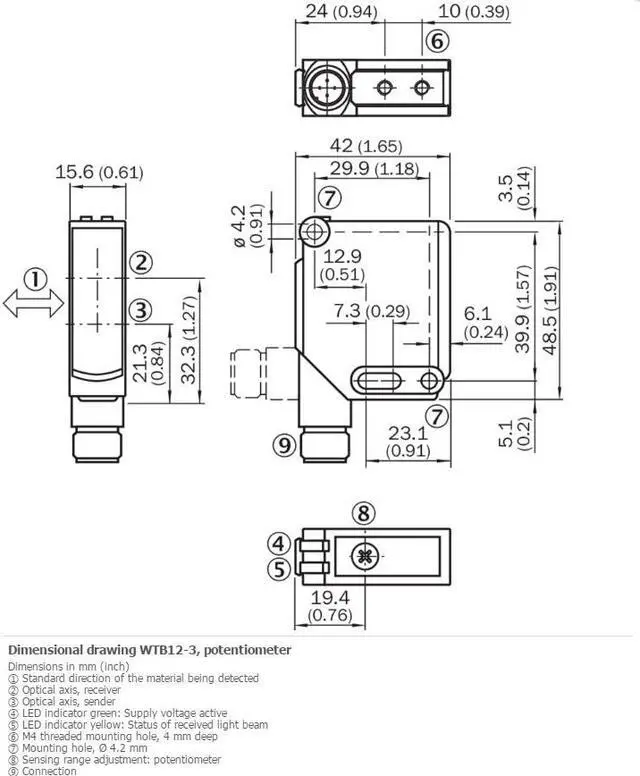

Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm ... 600 mm 1)
Sensing range 20 mm ... 600 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) 15 mm x 15 mm (200 mm)
Wave length 850 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 55 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW > Uv - 2,5 V / ca. 0 V
Output current Imax. 100 mA
Response time = 330 µs 4)
Switching frequency 1,500 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 120 g
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm ... 600 mm 1)
Sensing range 20 mm ... 600 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) 15 mm x 15 mm (200 mm)
Wave length 850 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 55 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW > Uv - 2,5 V / ca. 0 V
Output current Imax. 100 mA
Response time = 330 µs 4)
Switching frequency 1,500 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 120 g
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
