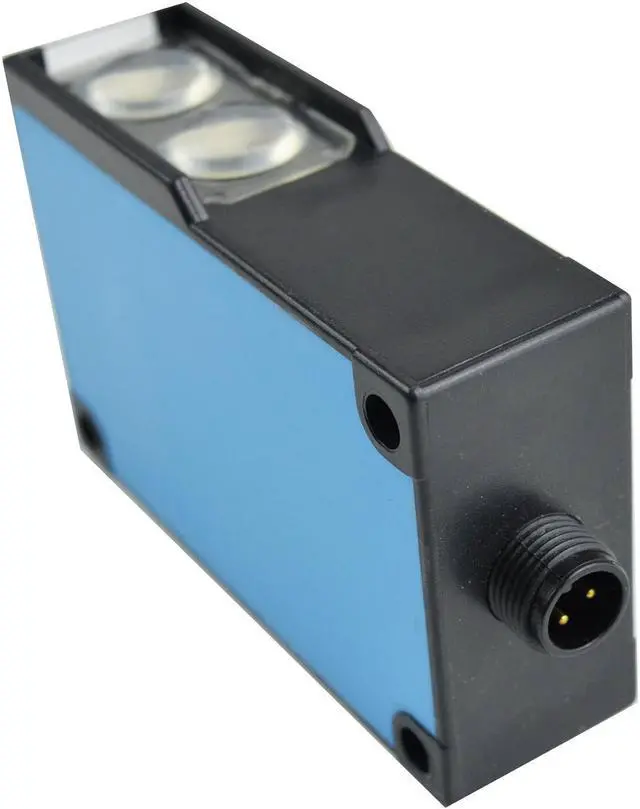

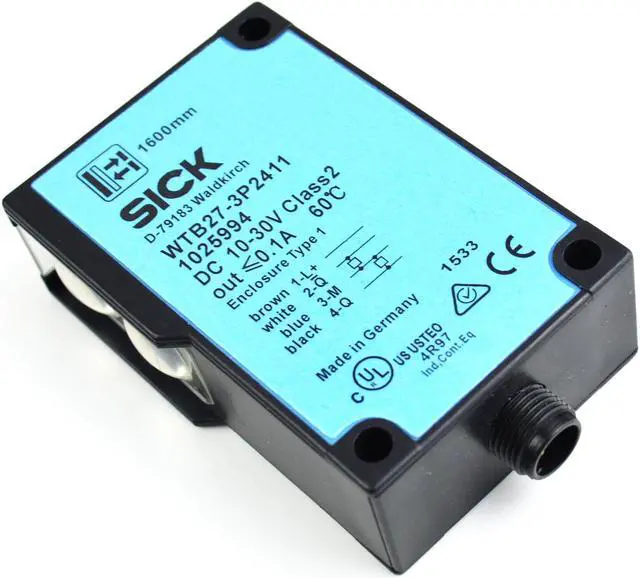

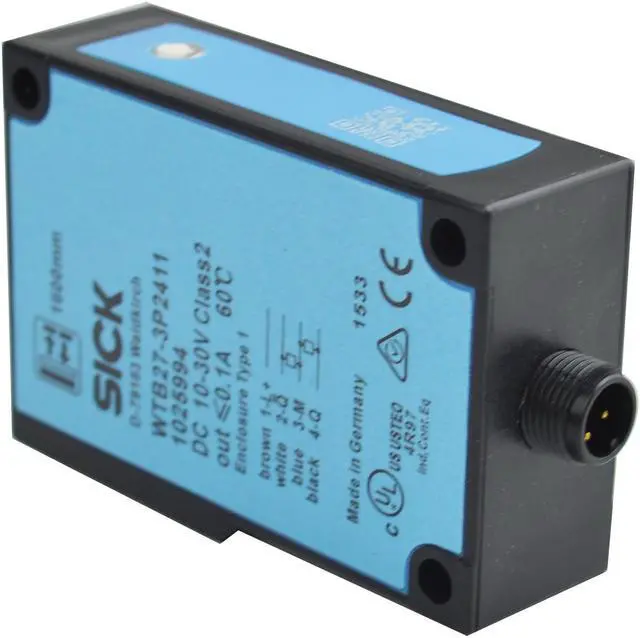

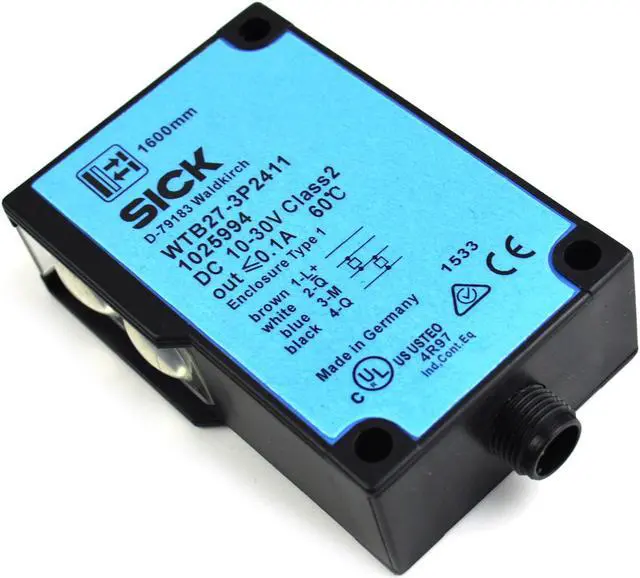

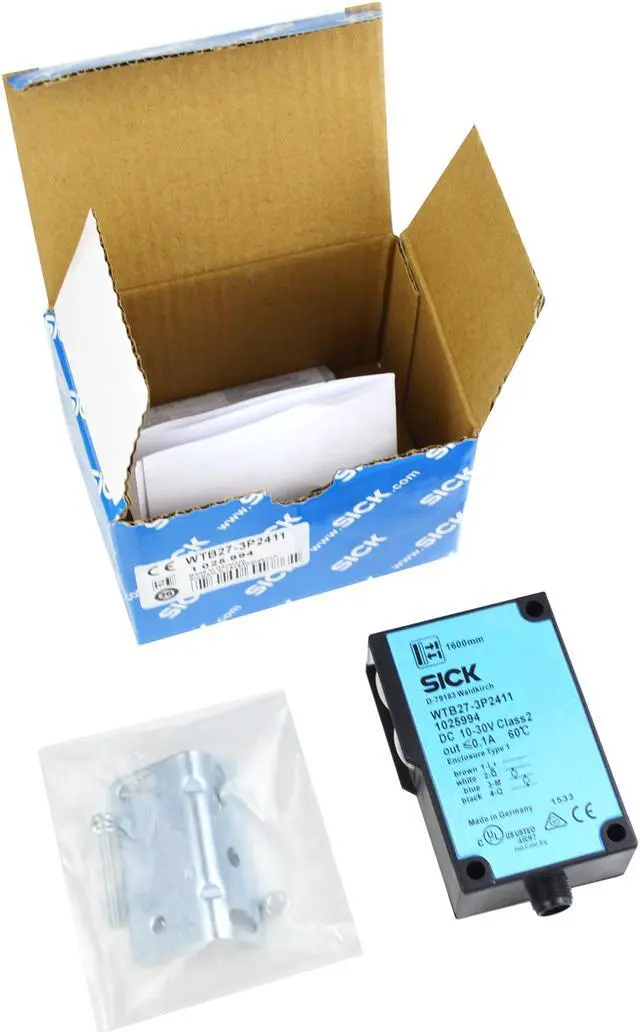

SICK WTB27-3P2411 Photoelectric Proximity Sensor,PNP,New
- SICK WTB27-3P2411 Photoelectric Proximity Sensor,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm Housing design (light emission) Rectangular Sensing range max. 30 mm... 1, 600 mm 1) Sensing range 100 mm... 1, 600 mm Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 25 mm (800 mm) Wave length 880 nm Adjustment Potentiometer Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 5 Vpp 2) Power consumption 40 mA 3) Switching output PNP Output function Complementary Switching mode Light/dark switching Signal voltage PNP HIGH/LOW Approx.
VS 2.5 V / 0 V Output current Imax. = 100 mA Response time = 1.5 ms 4) Switching frequency 350 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) Protection class II 9) Weight 100 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP69K Ambient operating temperature 40 °C... +60 °C Ambient storage temperature 40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
VS 2.5 V / 0 V Output current Imax. = 100 mA Response time = 1.5 ms 4) Switching frequency 350 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) Protection class II 9) Weight 100 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP69K Ambient operating temperature 40 °C... +60 °C Ambient storage temperature 40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
