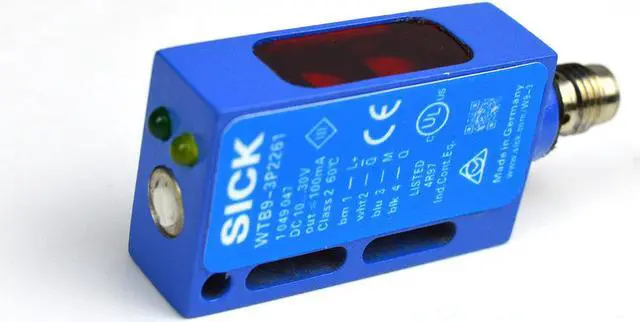

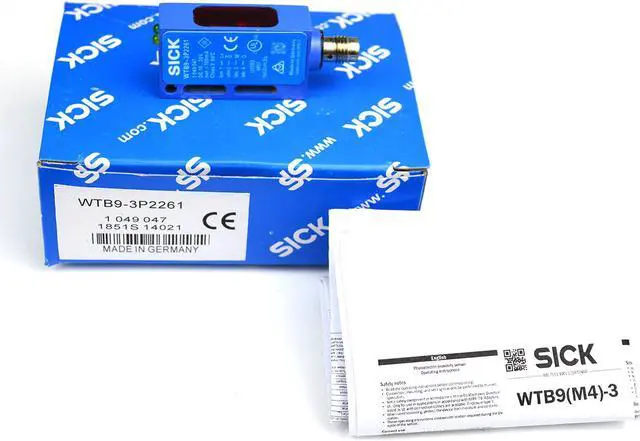

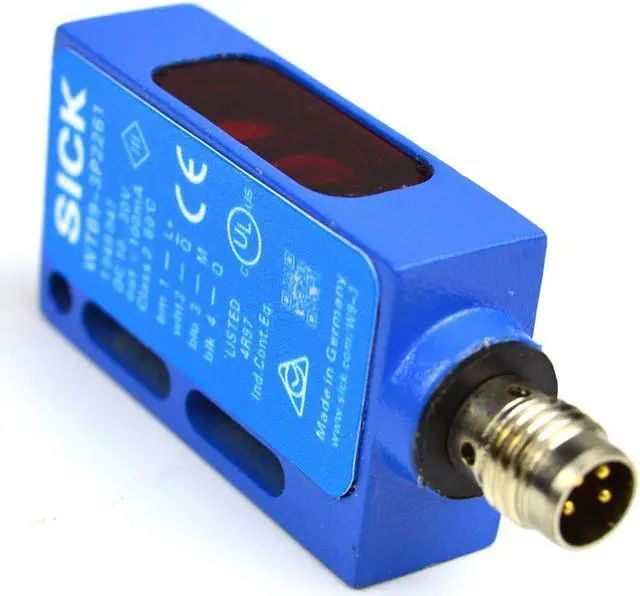

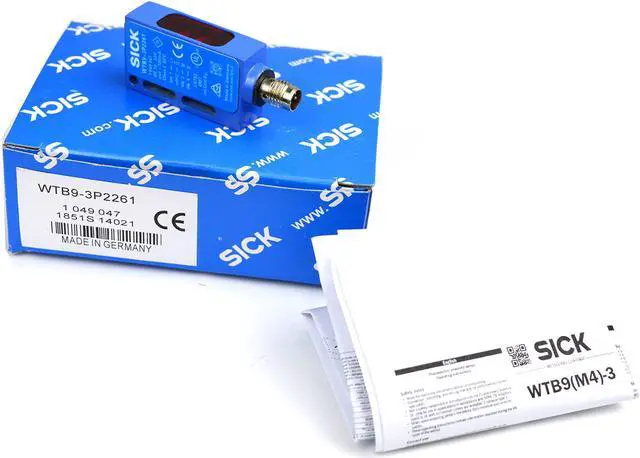

SICK WTB9-3P2261 Small Photoelectric Sensors,PNP,New
- SICK WTB9-3P2261 Small Photoelectric Sensors,PNP,New
+
+
Overview
Specs
Reviews
SICK WTB9-3P2261 Small Photoelectric Sensors, PNP, New FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 12.2 mm x 49.8 mm x 23.6 mm Housing design (light emission) Rectangular Mounting hole M3 Sensing range max. 20 mm... 350 mm 1) Sensing range 20 mm... 200 mm 2) Type of light Visible red light Light source PinPoint LED 3) Light spot size (distance) Ø 4.5 mm (75 mm) Wave length 650 nm Adjustment Potentiometer, 5 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP 4) Output function Complementary Switching mode Light/dark switching 4) Output current Imax.
= 100 mA 5) Response time < 0.333 ms 6) Switching frequency 1, 500 Hz 7) Connection type Male connector M8, 4-pin Circuit protection A 8) B 9) C 10) Protection class III Weight 13 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
= 100 mA 5) Response time < 0.333 ms 6) Switching frequency 1, 500 Hz 7) Connection type Male connector M8, 4-pin Circuit protection A 8) B 9) C 10) Protection class III Weight 13 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
