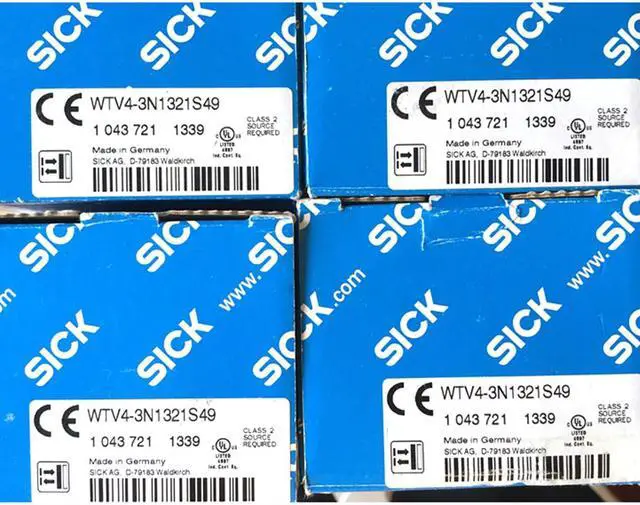

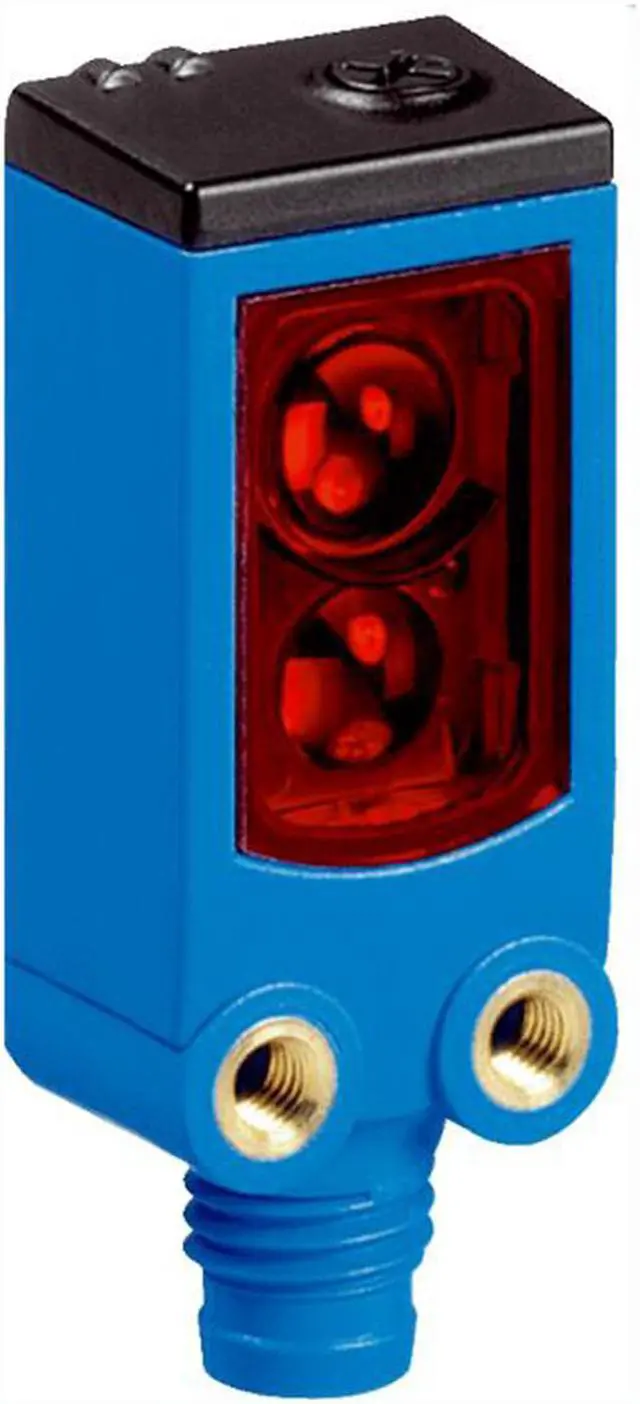

SICK WTV4-3N1321S49 Miniature Photoelectric Sensors NPN ,New
- SICK WTV4-3N1321S49 Miniature Photoelectric Sensors NPN ,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 50 mm 1)
Sensing range 5 mm ... 50 mm 1)
Type of light Infrared light
Light source PinPoint LED 2)
Light spot size (distance) Ø 7 mm (40 mm)
Wave length 880 nm
Adjustment Potentiometer, 5 turns
Special applications Detecting uneven, shiny objects, Detecting objects wrapped in film
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 20 mA 3)
Switching output NPN
Switching mode Light switching
Output current Imax. = 100 mA
Response time < 0.5 ms 4)
Switching frequency 1,000 Hz 5)

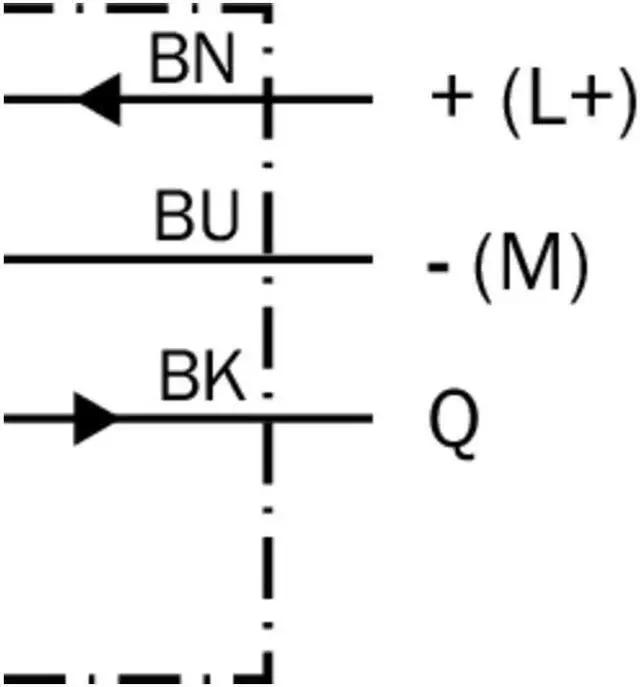

Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.4 mm
Circuit protection
A 7)
C 8)
D 9)
Protection class III
Weight 30 g
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP66
Special feature V-optics
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 50 mm 1)
Sensing range 5 mm ... 50 mm 1)
Type of light Infrared light
Light source PinPoint LED 2)
Light spot size (distance) Ø 7 mm (40 mm)
Wave length 880 nm
Adjustment Potentiometer, 5 turns
Special applications Detecting uneven, shiny objects, Detecting objects wrapped in film
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 20 mA 3)
Switching output NPN
Switching mode Light switching
Output current Imax. = 100 mA
Response time < 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.4 mm
Circuit protection
A 7)
C 8)
D 9)
Protection class III
Weight 30 g
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP66
Special feature V-optics
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
